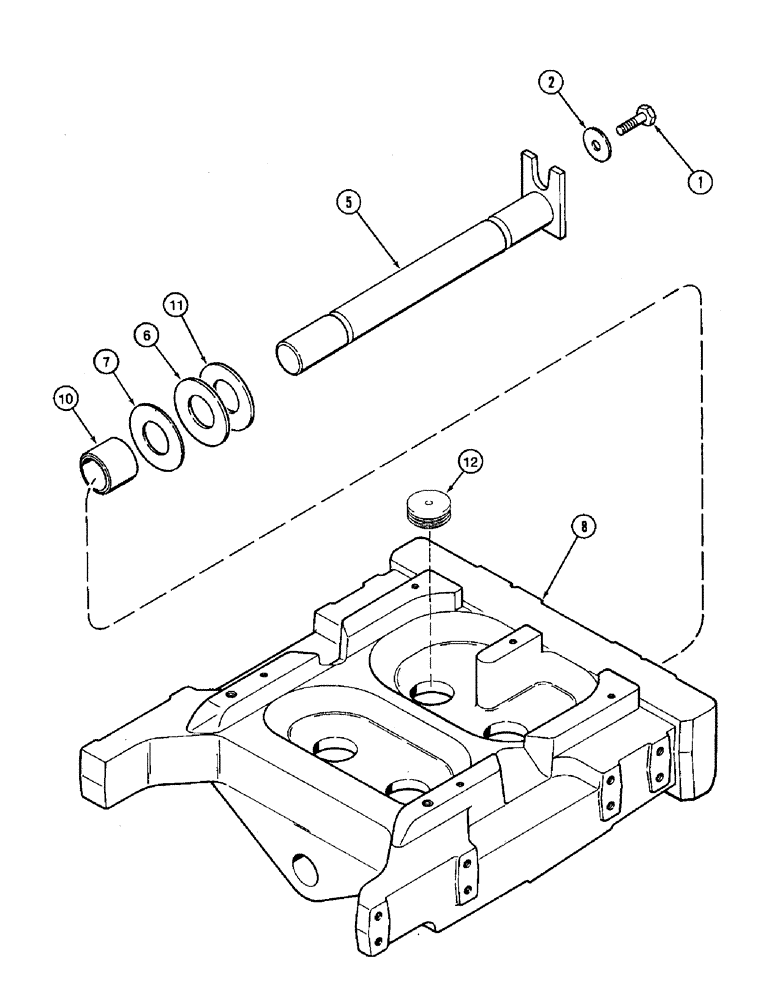

Запчасти Case IH 8920 (5-026) - FRONT AXLE SUPPORT, MFD TRACTOR (05) - STEERING

1

806-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

- hex, locking, 12 - 1.75 x 30 mm, Replaces P/N 30225R1

1шт.

2

101936C2

WASHER

flat, hardened, special

1шт.

5

196338A1

PIVOT PIN,50mm OD x 537mm L

PIN pivot, front axle

1шт.

6

A177855

SEALING WASHER,50.3mm ID x 90mm OD x 4.9mm Thk

thrust

2шт.

7

A177854

WASHER,50.3mm ID x 90mm OD x 1.6mm Thk

flat

1шт.

8

137316A2

SUPPORT ASSY.

BOLSTER - steering

1шт.

10

196294A1

BUSHING

front pivot

2шт.

11

186869A1

SHIM,50.3mm ID x 90mm OD x 2.26mm Thk

thick, hardened 2.26 mm

1шт.

12

192896A1

PLUG

front support, if used

4шт.
