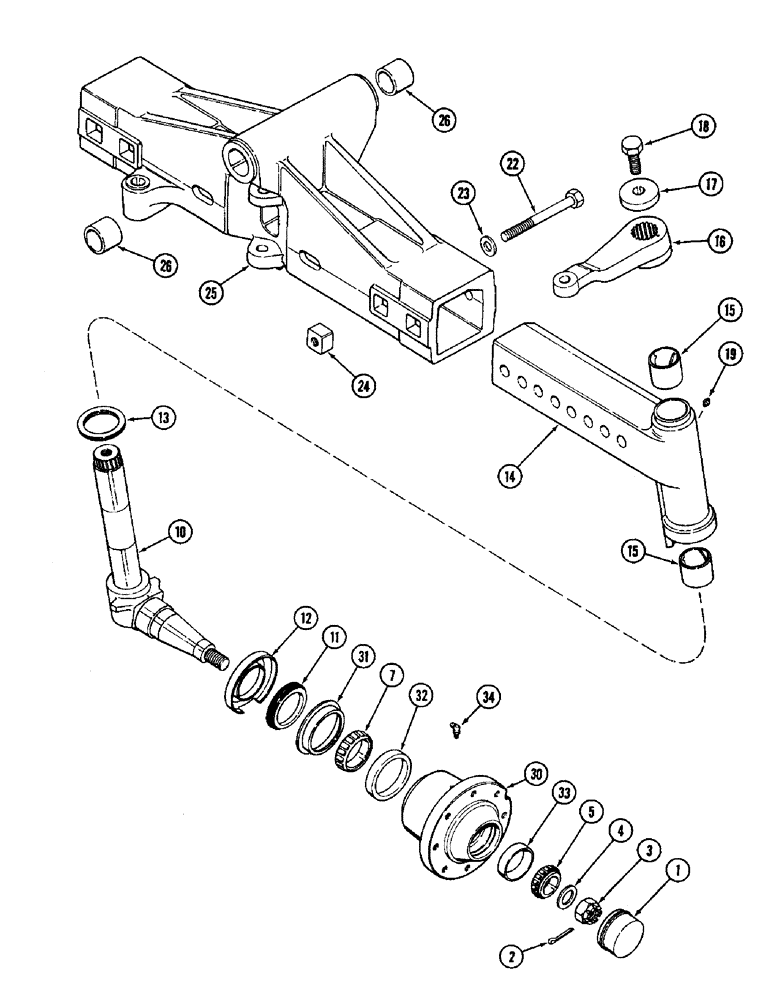

Запчасти Case IH 8920 (5-022) - ADJUSTABLE FRONT AXLE, SPINDLE AND WHEEL HUB, TWO WHEEL DRIVE TRACTOR (05) - STEERING

1

189425C1

HUB CAP

CAP wheel, hub

2шт.

2

732-6350

COTTER PIN,M6.3 x 50

PIN, SPLIT (COTTER), M6.3 x 50

2шт.

3

1259683C1

NUT

hex, slotted, 30 mm - 1.5

2шт.

4

896-12030

WASHER,33mm ID x 56mm OD x 5mm Thk

flat, hardened, 33 x 56 x 5 mm

2шт.

5

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

BEARING tapered, roller

2шт.

7

ST753B

BEARING ASSY,66.67mm ID x 22mm W

BEARING tapered roller

2шт.

10

1259519C2

STEERING KNUCKLE

SPINDLE ASSEMBLY, steering, Includes: Ref. 11 and 12

2шт.

11

491641C1

SEAL

front, wheel, spindle

1шт.

12

1259522C1

SHIELD

dust, front, wheel, spindle

1шт.

13

1270815C1

THRUST BEARING

thrust, wheel, spindle

2шт.

14

1264574C2

EXTENSION ASSY.

AXLE ASSEMBLY - LH section, Incl. Ref. 15

1шт.

14

1264575C2

EXTENSION ASSY.

AXLE ASSEMBLY - RH section, Incl. Ref. 15

1шт.

15

1259518C1

BUSHING,63.53mm ID x 67.21mm OD x 50.8mm L

spindle

2шт.

16

1259526C2

ARM

steering spindle, left-hand

1шт.

16

1259527C2

STEERING ARM

ARM spindle, right-hand (Shown)

1шт.

17

1259669C2

WASHER

steering arm, retainer

2шт.

18

614-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 8.8, Full Thd

- hex, full threads, 20 - 2.5 x 55 mm

2шт.

19

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

2шт.

22

828-24200

BOLT,Hex, M24 x 3 x 200mm, Cl 10.9

- hex, 24 - 3.0 x 200 mm, class 10.9

4шт.

23

896-12024

WASHER,26mm ID x 44mm OD x 5mm Thk

flat, hardened, 26 x 44 x 5 mm

4шт.

24

1264635C1

NUT

square, special

4шт.

25

1289093C2

HOUSING

AXLE HOUSING - center section

1шт.

26

196294A1

BUSHING

front, pivot

2шт.

30

1259528C1

HUB

ASSEMBLY - wheel, Includes: Ref. 31 thru 33

2шт.

31

1264549C1

SEALING WASHER,106mm ID x 130mm OD x 1.6mm Thk

RETAINER hub, seal

1шт.

32

29214H

BEARING CUP,110mm OD x 18.82mm W

CUP tapered roller, bearing, 4-5/16 inch OD

1шт.

33

130503H

BEARING CUP

CUP tapered roller, bearing, 3-17/64 inch OD

1шт.

34

219-404

LUBE NIPPLE,45 Degree Elbow, 3/16" NPTF

FITTING - grease, 45°, 3/16 drive type x 13/16"

2шт.
