(5-020) - FRONT AXLE SUPPORT, TWO WHEEL DRIVE TRACTOR

Запчасти Case IH 8920 (5-020) - FRONT AXLE SUPPORT, TWO WHEEL DRIVE TRACTOR (05) - STEERING

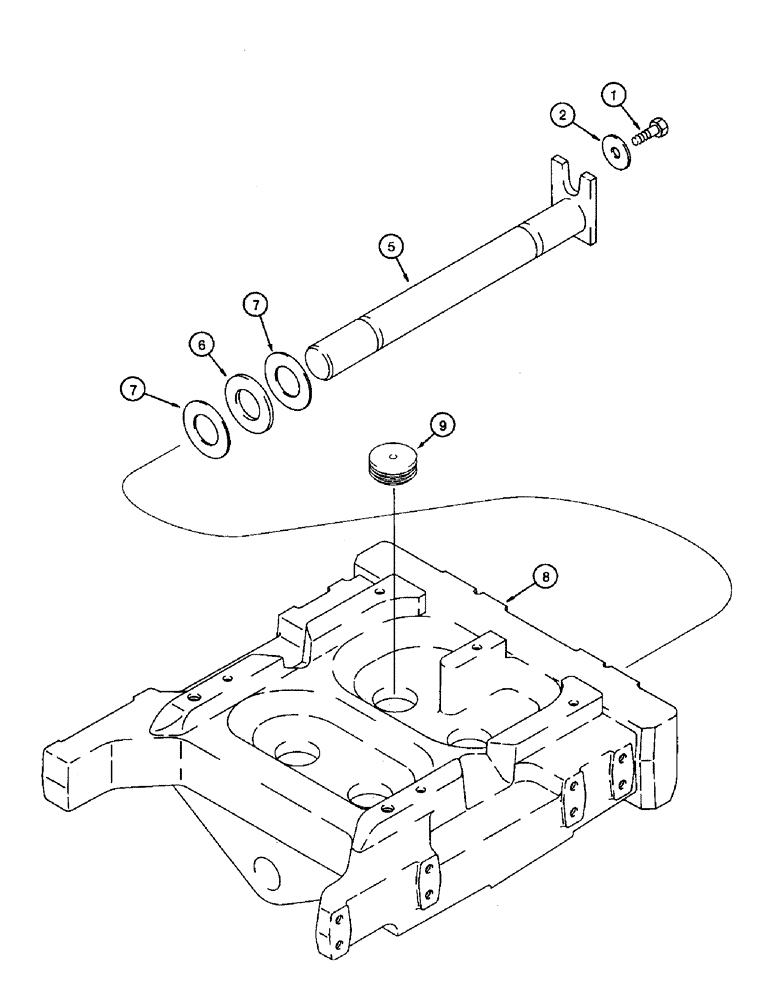

Схема запчастей Case IH 8920 - (5-020) - FRONT AXLE SUPPORT, TWO WHEEL DRIVE TRACTOR (05) - STEERING
2
5
1
7
7
9
8
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

30225R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

- hex, 12 - 1.75 x 30 mm

1шт.

2

101936C2

WASHER

flat, hardened, special

1шт.

5

196338A1

PIVOT PIN,50mm OD x 537mm L

PIN pivot, front axle

1шт.

6

A177855

SEALING WASHER,50.3mm ID x 90mm OD x 4.9mm Thk

thrust

2шт.

7

A177854

WASHER,50.3mm ID x 90mm OD x 1.6mm Thk

flat

1шт.

8

137316A3

SUPPORT ASSY.

BOLSTER - steering

1шт.

9

192896A1

PLUG

front support, if used

4шт.
