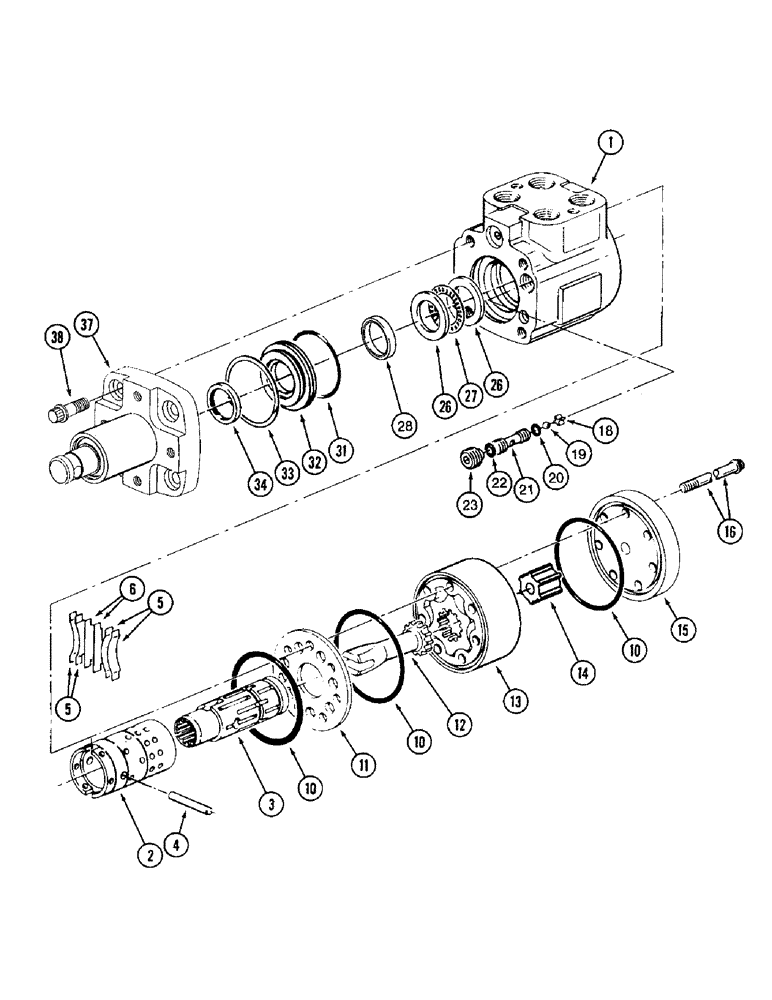

Запчасти Case IH 8920 (5-012) - STEERING PUMP, MFD TRACTOR (05) - STEERING
№
Артикул
Название
Примечание
Количество
225390A1
PUMP
ASSEMBLY - steering, hydrostatic, Includes: Ref. 1 thru 34
1шт.
225390A2R
REMAN-HYD PUMP
8910, 8920 (1/97 - 12/98), Reman for New P/N 225390A1
1шт.
225390A2C
CORE-HYDRAULIC PUMP
Return Number
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING - pump
1шт.
2
NSS
NOT SOLD SEPARAT
SLEEVE - control
1шт.
3
NSS
NOT SOLD SEPARAT
SPOOL - control
1шт.
4
NSS
NOT SOLD SEPARAT
PIN - centering
1шт.
5
NSS
NOT SOLD SEPARAT
SPRING - centering
4шт.
6
NSS
NOT SOLD SEPARAT
SPACER - spring
2шт.
10
238-6040
O-RING,0.07" Thk x 2.864" ID, -40, Cl 6, 90 Duro
End cap (Replaces P/N N6392) -040, 90 Duro, 2.864" ID x .070" Thk
3шт.
Part of Seal Kit P/N 1343658C3
1шт.
11
NSS
NOT SOLD SEPARAT
PLATE - spacer
1шт.
12
NSS
NOT SOLD SEPARAT
SHAFT - drive, gerotor
1шт.
13
NSS
NOT SOLD SEPARAT
GEROTOR - pump
1шт.
14
NSS
NOT SOLD SEPARAT
SPACER - gerotor
1шт.
15
NSS
NOT SOLD SEPARAT
CAP - end
1шт.
16
NSS
NOT SOLD SEPARAT
BOLT - retaining
7шт.
18
NSS
NOT SOLD SEPARAT
RETAINER - check ball
1шт.
19
NSS
NOT SOLD SEPARAT
BALL - check
1шт.
20
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
(Replaces P/N L30893) -011, 90 Duro, .301" ID x .070" Thk
1шт.
Part of Seal Kit P/N 1343658C3
1шт.
21
NSS
NOT SOLD SEPARAT
SEAT - ball
1шт.
22
238-5012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro
-012, 70 Duro, .364" ID x .070" Thk
1шт.
23
NSS
NOT SOLD SEPARAT
SCREW - set
1шт.
26
NSS
NOT SOLD SEPARAT
RACE - thrust bearing
2шт.
27
NSS
NOT SOLD SEPARAT
BEARING - needle, thrust
1шт.
28
121179A1
SEAL
teflon
1шт.
Part of Seal Kit P/N 1343658C3
1шт.
31
238-5225
O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro
1шт.
Part of Seal Kit P/N 1343658C3
1шт.
32
NSS
NOT SOLD SEPARAT
BUSHING - seal gland
1шт.
33
NSS
NOT SOLD SEPARAT
RING - retaining
1шт.
34
A28211
OIL SEAL
dust, Replaces: P/N 697494R91
1шт.
Part of Seal Kit P/N 1343658C3
1шт.
37
1343647C1
HOUSING
COLUMN ASSEMBLY - pump, Includes: Ref. 38
1шт.
38
1343650C1
12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8
BOLT, 12 Pt Flg, 3/8"-16 x 1", G8
4шт.
1343658C3
SEAL KIT
KIT - seal, low torque, Includes: Ref. 10, 20, 28, 31 & 34
1шт.
Выбрано товаров: 37
