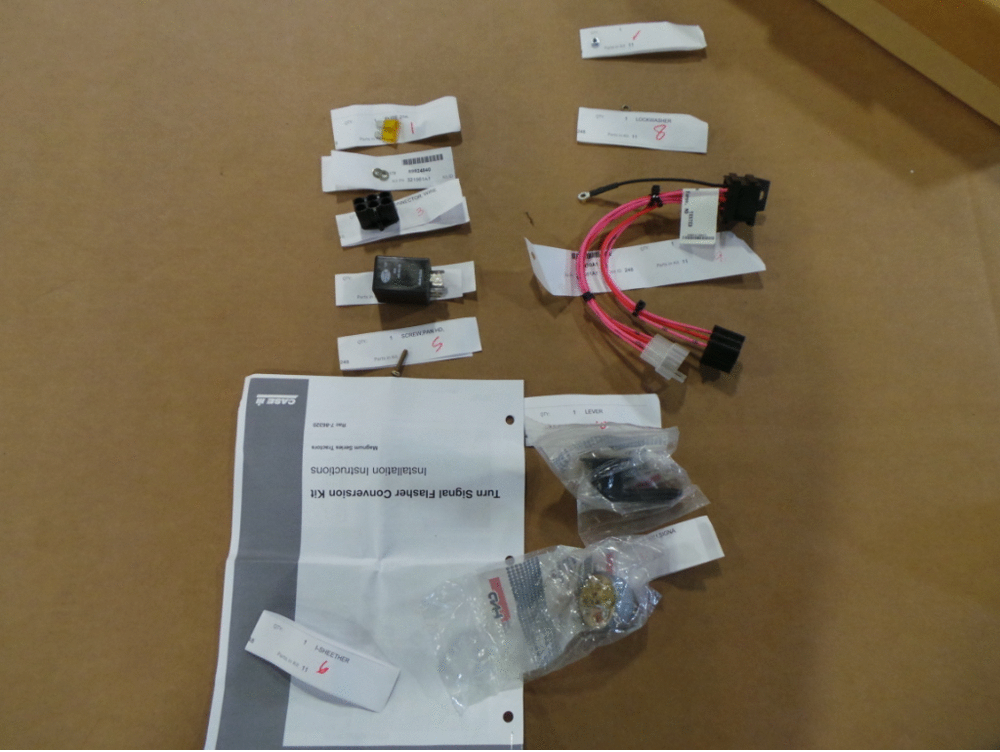

Запчасти Case IH 8920 (4-053) - KIT FLASHER TURN SIGNAL CONVERSION (04) - ELECTRICAL SYSTEMS

1

321561A1

KIT

Incl 2 - 12

1шт.

2

7-86320

INSTRUCTION

1шт.

3

9804895

FUSE,20A, Micro, Yellow

1шт.

4

89824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

5

892136C1

ELEC CONNECTOR,Female

1шт.

6

87578455

RELAY,12V, Turn Signal and Hazard

1шт.

7

86511824

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 20mm, Cl 4.8

1шт.

8

57121

NUT,M4, Cl 8

1шт.

9

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

1шт.

10

321430A1

HARNESS

1шт.

11

310654A1

LEVER

1шт.

12

310652A1

FLASHER SWITCH

Rotary Turn Signal

1шт.
