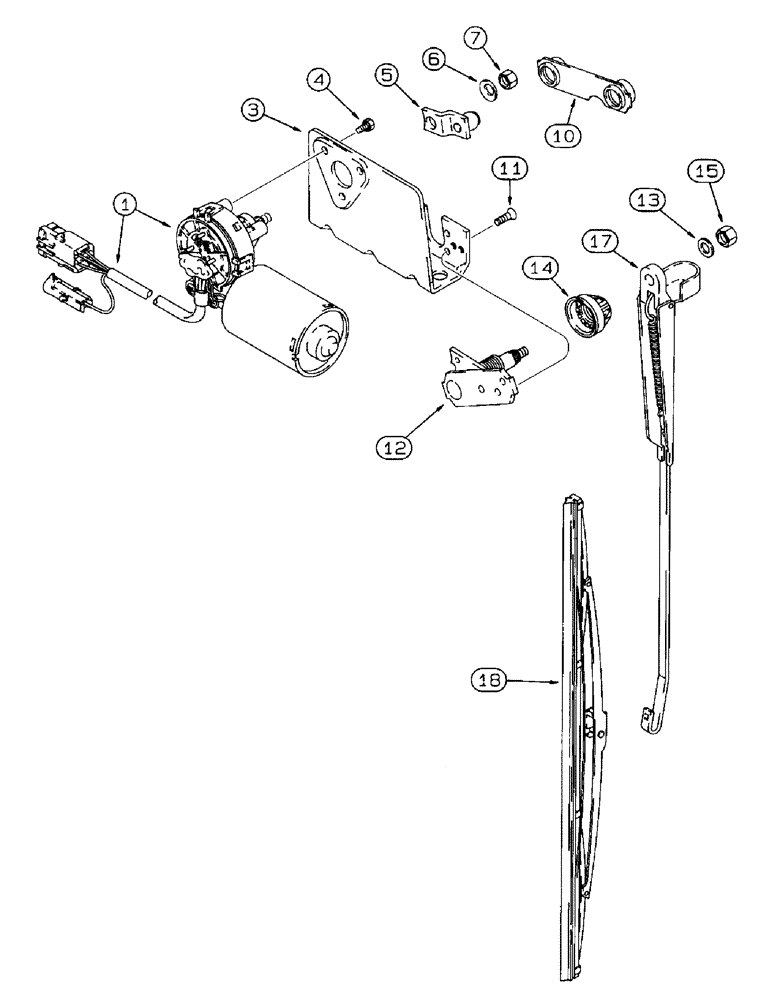

Запчасти Case IH 8920 (4-048) - WINDSHIELD WIPER ASSEMBLY (04) - ELECTRICAL SYSTEMS

A186171

WIPER MOTOR

WIPER ASSEMBLY - windshield, 12 volt, Includes: Ref. 1 thru 12

1шт.

1

A186256

WIPER MOTOR,12V

MOTOR wiper, 12 volt

1шт.

3

N8359

SUPPORT

BRACKET - windshield wiper assembly

1шт.

4

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

SCREW with washer, special

3шт.

5

N8360

SUPPORT

ARM drive

1шт.

6

N8361

SPRING WASHER

Belleville

1шт.

7

L112090

NUT

hex, special

1шт.

10

N8358

LINK

LINK - wiper, pivot

1шт.

11

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

special, bracket

1шт.

12

N14112

SHAFT

pivot, wiper

1шт.

13

L112089

WASHER

wave, special

1шт.

14

L112081

CAP

pivot, shaft, end

1шт.

15

825-1408

NUT,M8, Cl 8

1шт.

17

A186222

WIPER ARM,Single, 475mm L

ARM wiper, front, 475 mm (18-3/4 inch) long

1шт.

18

132024A1

WIPER BLADE

BLADE wiper arm, complete

1шт.

18

132025A1

WIPER BLADE

BLADE rubber, 500 mm long, windshield wiper refill

1шт.

19

414-410

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

- hex, 1/4 NF x 5/8 inch, wiper bracket mounting, not shown

2шт.
