(4-042) - LAMP ASSEMBLIES (CONSOLE, CABE DOME AND CAB FLOOD LAMP)

Запчасти Case IH 8920 (4-042) - LAMP ASSEMBLIES (CONSOLE, CABE DOME AND CAB FLOOD LAMP) (04) - ELECTRICAL SYSTEMS

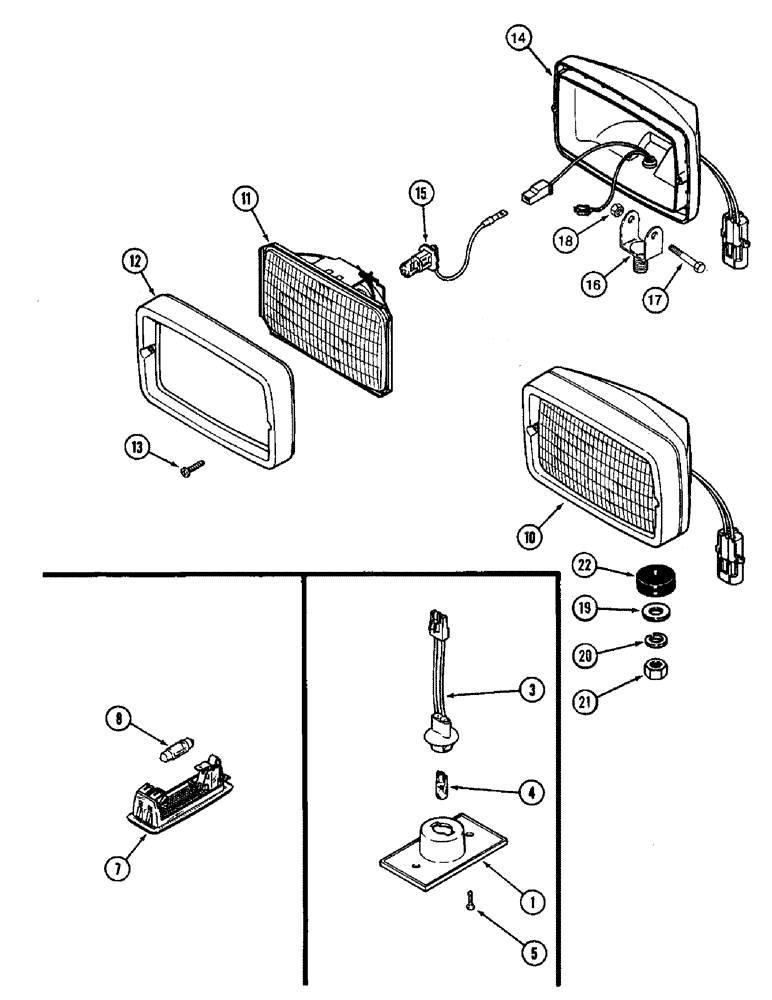

Схема запчастей Case IH 8920 - (4-042) - LAMP ASSEMBLIES (CONSOLE, CABE DOME AND CAB FLOOD LAMP) (04) - ELECTRICAL SYSTEMS
15
3
19
10
7
17
14
1
13
16
18
20
21
22
4
12
11
8
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

83882C91

LAMP

ASSEMBLY - console illumination, Includes: Ref. 1 thru 4

1шт.

1

NSS

NOT SOLD SEPARAT

LENS - console lamp, assembly

1шт.

3

107329C1

WIRE HARNESS

SOCKET AND CABLE - bulb, console lamp assembly

1шт.

4

D71346

TAIL LAMP,12V

BULB lamp, No. 168, console lamp assembly

1шт.

5

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, , Console lamp assembly Cross Pan Hd, M4.8 x 19, Coated

2шт.

7

1983391C1

LAMP,12V, 10W

cab dome, assembly, Includes: Ref. 8

1шт.

8

1094378R1

BULB,J, 12V, 2W

- lamp, cab dome lamp assembly

1шт.

10

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

LAMP ASSEMBLY - flood, with standard glass lens, cab, Includes: Ref. 11 thru 18

2шт.

10

344649A1

LAMP, WORK

LAMP ASSEMBLY - flood, with tempered glass lens, cab, Includes: Ref. 11 thru 18

2шт.

11

1964807C1

LAMP BASE

LENS - reflector, standard glass, if used, cab flood lamp assembly

1шт.

11

276498A1

LENS

reflector, lamp, tempered glass, if used, cab flood lamp assembly

1шт.

12

1964806C1

BEZEL

HOUSING - lamp, front, cab flood lamp assembly

1шт.

13

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW, SELF TAPPING, , If used, cab flood lamp assembly Cross Pan Hd, #6 x 3/4"

2шт.

13

340-1256

SCREW,Cross Pan Hd, 1/4"-20 x 3/8"

machine, pan Phillips, 1/4 NC x 3/8 inch, if used, cab flood lamp assembly

2шт.

14

NSS

NOT SOLD SEPARAT

BASE - lamp, cab flood lamp assembly

1шт.

15

1312210C2

BULB,Halogen H3, 12V, 55W

lamp, halogen, cab flood lamp assembly

1шт.

16

A187915

BRACKET

mounting, lamp assembly, cab flood

1шт.

17

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

- hex, 8 - 1.25 x 45 mm, cab flood lamp assembly

1шт.

18

832-41308

NUT,M8 x 1.25, Cl 10

hex, self-locking, 8 mm - 1.25, class 10.9, cab flood lamp assembly

1шт.

19

495-81140

WASHER,13/32" x 1 1/4" x .060"

flat, 13/32 x 1-1/4 x 1/16 inch, Cab flood lamp assembly

2шт.

20

892-11010

LOCK WASHER,M10

Cab flood lamp assembly M10

2шт.

21

825-1410

NUT,M10, Cl 8

Cab flood lamp assembly M10, Cl 8

2шт.

22

96901C1

GROMMET

blower motor wire, lamp wiring, cab flood assembly

2шт.
