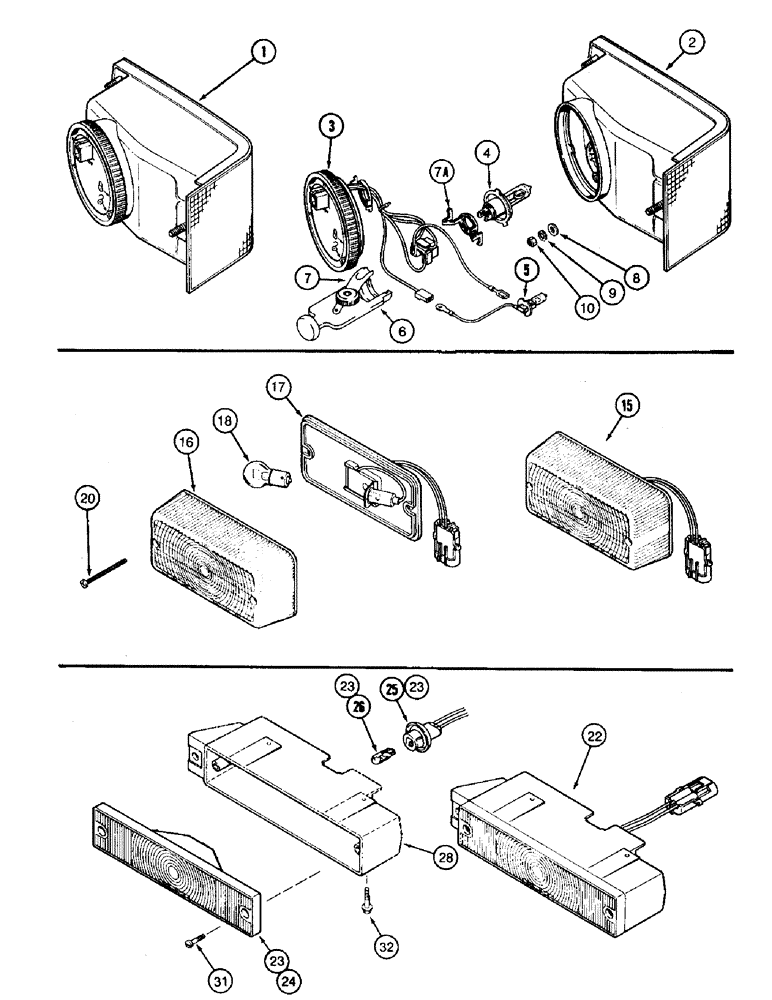

Запчасти Case IH 8920 (4-038) - LAMP ASSEMBLIES (HEAD LAMP, FLASHER WARNING LAMP AND TAIL LAMP) (04) - ELECTRICAL SYSTEMS

1

91971C2

LAMP,Halogen, 12V, 35W, Clear

ASSEMBLY - head, left, Includes: Ref. 2 thru 7A

1шт.

1

91972C2

LAMP,Halogen, 12V, 35W, Clear

ASSEMBLY - head, right, Includes: Ref. 2 thru 7A, shown

1шт.

2

NSS

NOT SOLD SEPARAT

LENS ASSEMBLY - head lamp, left

1шт.

2

NSS

NOT SOLD SEPARAT

LENS ASSEMBLY - head lamp, right, shown

1шт.

3

1964759C1

COVER ASSY

COVER access, head lamp assembly

1шт.

4

91967C1

BULB

lamp, H4, head lamp assembly

1шт.

5

92242C1

BULB

lamp, H3, head lamp assembly

1шт.

6

1964757C1

SUPPORT

HOLDER - bulb, H3, head lamp assembly

1шт.

7

1964758C1

SPRING

holder, bulb, head lamp assembly

1шт.

7a

1983288C1

RETAINER

bulb, head lamp assembly

1шт.

8

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16"), Head lamp assembly 1/4", SAE

6шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Head lamp assembly 1/4"

6шт.

10

425-104

NUT,1/4"-20, Cl 5

hex, 1/4 inch NC, head lamp assembly

6шт.

15

92185C1

LIGHT ASSY.

LAMP ASSEMBLY - warning, flasher, Includes: Ref. 16 thru 18

4шт.

16

130883C1

LENS

amber, warning lamp assembly, flasher

1шт.

17

NSS

NOT SOLD SEPARAT

BASE - lamp assembly, flasher warning

1шт.

18

A41264

BULB,#1156, 12V

Lamp, Flasher warning lamp assembly #1156, 12V

1шт.

20

1974614C2

SELF-TAP SCREW,Cross Pan Hd, #10-24 x 2 1/4"

SCREW, SELF TAP, , Special, Flasher Warning Lamp Assy Cross Pan Hd, #10-24 x 2 1/4"

8шт.

22

1546476C1

LAMP

ASSEMBLY - tail, Includes: Ref. 23 thru 31, not available for service, order Ref. 23-31

2шт.

23

A186202

LAMP

ASSEMBLY - tail, Includes: Ref. 24 thru 26

2шт.

24

NSS

NOT SOLD SEPARAT

LENS - lamp assembly, tail

1шт.

25

A186201

WIRE HARNESS

HARNESS - includes socket, tail lamp assembly

1шт.

26

D71346

TAIL LAMP,12V

BULB lamp, No. 168, tail lamp assembly

1шт.

28

1283837C1

HOUSING

tail lamp assembly, purchase separately

1шт.

31

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, , Tail lamp assembly Cross Pan Hd, M4.8 x 19, Coated

4шт.

32

253419A1

SCREW,Hex Wshr Hd, #8 - 18 x 5/8"

hex washer, No. 8 - 18 x 3/4 inch, Special, Replaces P/N 220408A1, tail lamp assembly

4шт.
