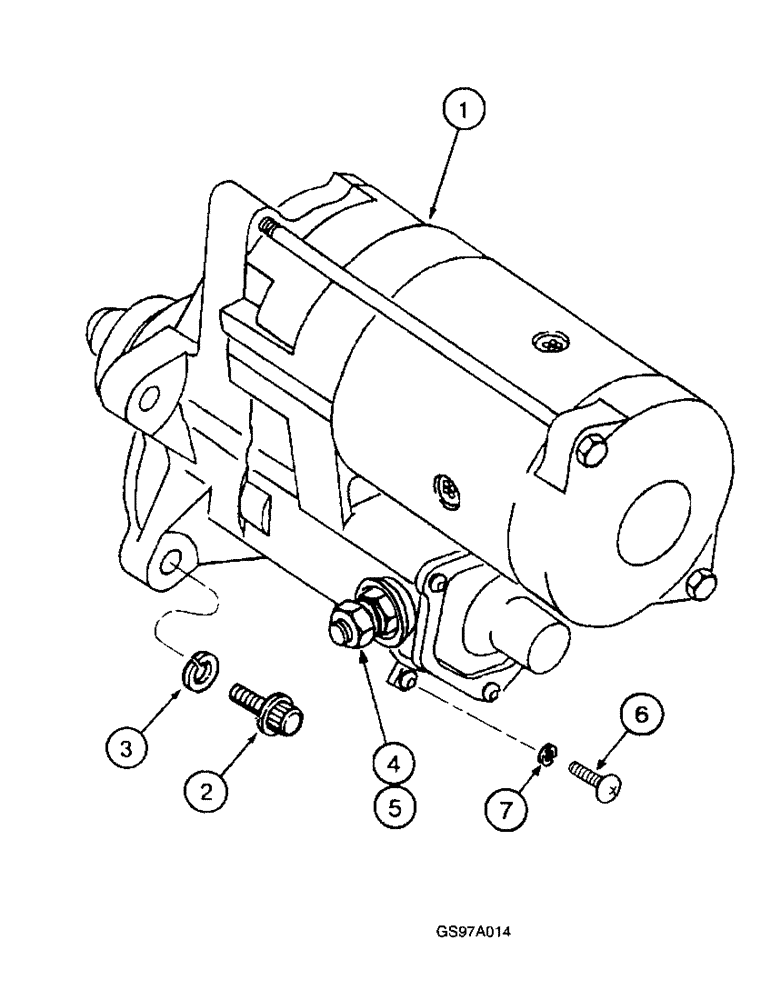

Запчасти Case IH 8920 (4-031A) - STARTER MOUNTING, P.I.N. JJA0076314 AND AFTER (04) - ELECTRICAL SYSTEMS

1

193432A1

STARTING MOTOR

STARTER ASSEMBLY - engine, see Figure 4-035A

1шт.

1

193432A2GV

STARTER MOTOR,12V, 4.8kW

Value, 12V, 4KW

1шт.

1

193432A2R

REMAN-STARTER,12V, 4.8kW

Remanufactured Starter 12 volt, 4.0 KW

1шт.

1

193432A2C

CORE-STARTER,12V, 4.8kW

Return Part Number Starter 12 volt, 4.0KW

1шт.

2

868-12040

12 PT SCREW,M12 x 40mm, Cl 12.9

BOLT - 12 point flange, 12 - 1.75 x 40 mm, class 12.9

3шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

WASHER, , Replaces P/N 892-11012 M13.5 x 24.5 x 3, HT

3шт.

4

829-1412

NUT,M12, Cl 10.9

NUT hex, 12 mm - 1.75, class 10

1шт.

5

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

6

258820A1

SCREW

SCREW special, 5 x 8 mm

1шт.

7

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

1шт.
