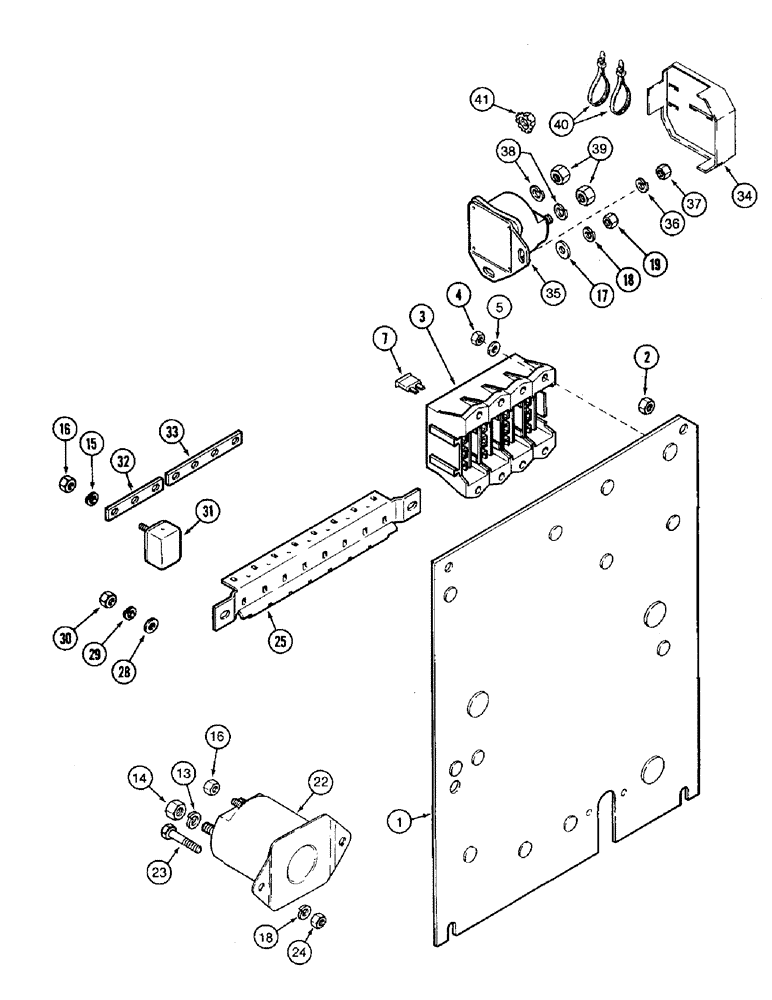

Запчасти Case IH 8920 (4-024) - FUSES, SOLENOIDS AND CIRCUIT BREAKERS (04) - ELECTRICAL SYSTEMS

1

1964622C3

PLATE ASSY.

PLATE ASSEMBLY, mounting

1шт.

2

825-1406

NUT,M6, Cl 8

7шт.

3

245435C1

FUSE HOLDER

BLOCK ASSEMBLY, fuse

1шт.

4

225-14110

NUT,#10-24

4шт.

5

495-31022

WASHER,#10

5шт.

7

A149798

FUSE

tan, 5 amp

1шт.

7

A149799

FUSE

brown, 7-1/2 amp

1шт.

7

A149800

FUSE,10 Amp

red, 10 amp

1шт.

7

A149801

FUSE,Lt Blue, 15 Amp

light blue, 15 amp

1шт.

7

A149802

FUSE

yellow, 20 amp

1шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

15

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

16

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

1шт.

17

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

18

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

19

825-1406

NUT,M6, Cl 8

2шт.

22

107655C1

SOLENOID SWITCH

SWITCH - magnetic, cab solenoid, power

1шт.

23

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

24

829-1306

NUT,M6, Cl 10

hex, 6 mm - 1.0, class 10

2шт.

25

91954C1

SUPPORT

BRACKET - mounting, circuit breaker

1шт.

28

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

29

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

30

425-104

NUT,1/4"-20, Cl 5

hex, 1/4 inch NC

2шт.

31

245761C1

CIRCUIT-BREAKER

BREAKER circuit, 10 amp

1шт.

31

245762C1

CIRCUIT-BREAKER,15A

BREAKER circuit, 15 amp

1шт.

31

245763C1

CIRCUIT-BREAKER,20A

BREAKER circuit, 20 amp

2шт.

31

245765C1

CIRCUIT-BREAKER,30A

BREAKER circuit, 30 amp

4шт.

32

245861C1

BAR

breaker bus

1шт.

33

245862C1

BAR

buss, 4 hole

1шт.

178149A1

SOLENOID SWITCH

KIT - solenoid switch with barrier and cover, Includes: Ref. 34 thru 40

1шт.

34

178148A1

COVER

solenoid, switch

1шт.

35

183038A1

SOLENOID

SWITCH - solenoid with barrier, ignition

1шт.

36

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

37

225-14210

NUT,#10-32

1шт.

38

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , if used, may be replaced by Ref. 41 5/16"

2шт.

39

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, If used, may be replaced by Ref. 41

2шт.

40

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch

2шт.

41

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, hex, serrated, flange, 5/16 inch NC, replaces lock washer and nut, Ref. 38 and 39, used on some models

2шт.
