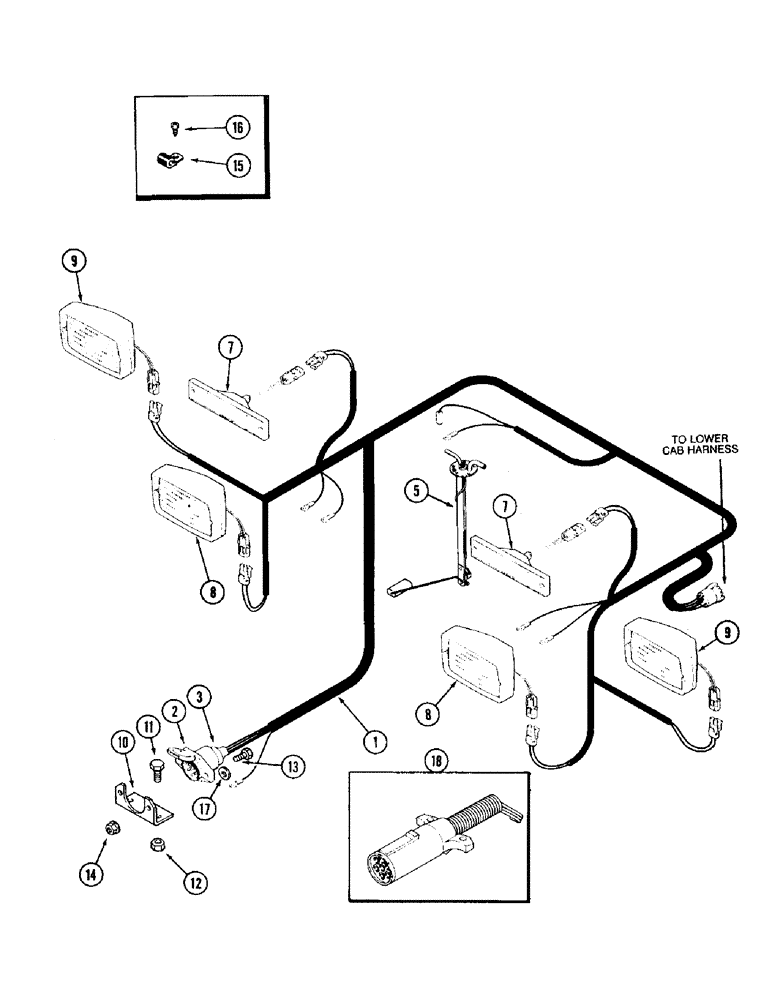

Запчасти Case IH 8920 (4-014) - CAB FENDER HARNESS (04) - ELECTRICAL SYSTEMS

1

1964584C1

HARNESS

fender, Includes: Ref. 2 and 3

1шт.

2

121645C1

MULTIPOLE CONNECTOR,7 Pin

SOCKET covered, 7 Pin

1шт.

3

481849C1

PROTECTIVE COVER

BOOT - wiring harness

1шт.

5

REF

INSTRUCTION

SENSOR - level, main fuel tank, see Figure 3-016 for correct assembly

1шт.

7

1546476C1

LAMP

ASSEMBLY - tail, see Figure 4-038

2шт.

8

REF

INSTRUCTION

LAMP ASSEMBLY - working flood, lower, see Figure 4-040

2шт.

9

REF

INSTRUCTION

LAMP ASSEMBLY - working flood, fender, see Figure 4-040

2шт.

10

102590A1

SUPPORT ASSY.

SUPPORT auxiliary, outlet

1шт.

11

1287737C1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

BOLT - hex, 10 x 25 mm class 10.9, support

2шт.

12

825-1410

NUT,M10, Cl 8

, Start Serial: AJB0041225

2шт.

13

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

14

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8

2шт.

15

362123R1

CLIP

harness retaining

6шт.

16

97212C1

SCREW,Pan, #6 - 20 x 7/8"

pan head, No. 6-20 x 7/8 inch

4шт.

18

121646C1

TERMINAL CONNECTOR,Female

CONNECTOR male, 7 pin, if used

1шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

2шт.
