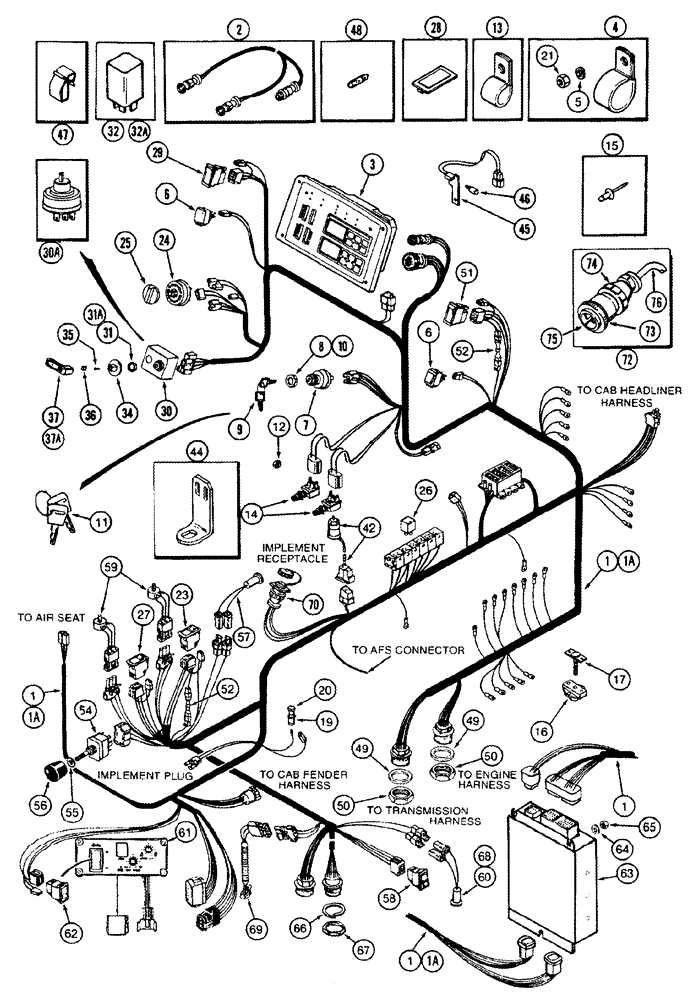

Запчасти Case IH 8920 (4-006) - LOWER CAB HARNESS, WITH HITCH (04) - ELECTRICAL SYSTEMS

1

232881A3

HARNESS

HARNESS cab, lower, with hitch, Serial Range: -JJA0090823

1шт.

1a

309112A1

HARNESS

HARNESS cab, lower, with hitch, not shown, Start Serial: JJA0090823

1шт.

2

A177090

HARNESS

HARNESS monitor, implement

1шт.

3

1964859C6

CLUSTER

CLUSTER ASSEMBLY - instrument, new, see Figure 4-022

1шт.

3

1964859C6R

REMAN-INSTR CLUSTER

Remanufactured Instrument Cluster

1шт.

3

1964859C6C

CORE-MONITOR

Return Part Number, Instrument Cluster

1шт.

4

92385C1

CLIP

CLIP retaining

3шт.

5

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

6

92365C1

SWITCH

SWITCH horn and ether start

2шт.

7

282775A1

IGNITION SWITCH

SWITCH ASSEMBLY - Includes: keys, padded, Ref. 11, if used

1шт.

7

D134737

IGNITION SWITCH

SWITCH ASSEMBLY - ignition, Includes: Ref. 8 and 9, if used

1шт.

8

A77314

NUT

NUT hex, special

1шт.

9

A77313

SET OF 2 KEYS

KEY set of 2, metal without padding

1шт.

10

1964785C1

NUT

NUT mounting, ignition switch

1шт.

11

1964831C2

IGNITION KEY

KEY padded, set of 2, included with switch assembly P/N 282775A1, if used

1шт.

12

122860A1

NUT

NUT switch

1шт.

13

92385C1

CLIP

CLIP retaining, harness

1шт.

14

123014A1

SWITCH

SWITCH brake, differential lock

2шт.

15

151-535

RIVET,Pop, 1/8" x .462"

RIVET, , Break mandrel, to mount three pin connector Pop, 1/8" x .462"

4шт.

16

468647C2

BLOCK ASSY.

BLOCK junction, see Figure 4-026

1шт.

17

1964561C1

BAR

BAR junction block buss, see Figure 4-026

1шт.

19

1964773C1

CIGAR LIGHTER

LIGHTER cigar,12 volt, Includes: Ref. 20

1шт.

20

A177447

LIGHTER, CIGARETTE

ELEMENT - pop-out unit, small knob

1шт.

21

425-166

NUT,3/8"-16, G5, Hvy

NUT heavy hex, 3/8 inch NC

3шт.

23

236598A1

SWITCH

SWITCH differential lock

1шт.

24

91921C1

SWITCH

SWITCH lighting

1шт.

25

97107C3

BUTTON

KNOB - light switch

1шт.

26

1983394C2

RELAY

RELAY mini, 12 volt

1шт.

27

236596A1

SWITCH

SWITCH MFD

1шт.

28

245918C1

LENS

PLUG - rectangular, blanking, if used

1шт.

29

92344C1

SWITCH

SWITCH ASSEMBLY - high/low, includes switch, socket, bulb and decal

1шт.

91855C1

SWITCH

SWITCH rocker, includes socket and bulb

1шт.

134608A1

LAMP SOCKET

SOCKET - bulb, includes bulb

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

BULB 2 watt

1шт.

91856C1

SYMBOLS

SYMBOL DECAL - blue, lens, snap-in, high beam

1шт.

30

1987422C1

SWITCH

SWITCH and flasher, Serial Range: -JJA0090823

1шт.

30a

310652A1

FLASHER SWITCH

SWITCH turn signal flasher, Start Serial: JJA0090823

1шт.

31

131-428

LOCK NUT,PAL, 3/4"-20

NUT hex, self-locking, 3/4-20 inch, used with P/N 1987422C1

1шт.

31a

A20467

NUT

NUT hex, used with P/N 310652A1

1шт.

32

92389C2

FLASHER UNIT

FLASHER hazard, Serial Range: JJA0090823-JJA0090943

1шт.

32a

309001A1

FLASHER UNIT,12V

FLASHER turn signal, heavy duty, Start Serial: JJA0090944

1шт.

33

780-34395

SELF-TAP SCREW,Hex Wash Hd, M4.8 x 9.5

SCREW, SELF TAPPING, , Not shown Hex Wash Hd, M4.8 x 9.5, Start Serial: JJA0090944

1шт.

34

97102C1

ADAPTER

ADAPTER lever, turn signal

1шт.

35

170-104

SCREW,Sl Pan Hd, #5 - 40 x 3/8"

SCREW machine, pan head Phillips, No. 5 NC x 3/8 inch

1шт.

36

1329896C1

CLASP

CLIP - retaining, lever

1шт.

37

97103C3

LEVER

LEVER turn signal, Serial Range: -JJA0090823

1шт.

37a

310654A1

LEVER

LEVER turn signal, Start Serial: JJA0090823

1шт.

42

92043C3

SWITCH

SWITCH drive, creeper

1шт.

44

96890C2

BRACKET

BRACKET creeper, switch

1шт.

45

1983363C2

LAMP

LIGHT ASSEMBLY - cluster, Includes: Ref. 46

1шт.

46

F64363

BULB

BULB lamp

1шт.

47

104389C1

CLIP

CLIP retaining, light

1шт.

48

3141107R1

BULB,W5/1.2, 12V, 1.2W

BULB 2 watt

4шт.

49

459330C1

LOCK WASHER

WASHER lock, No. 24

2шт.

50

459329C1

NUT

NUT hex, No. 24

2шт.

51

137430A1

SWITCH

SWITCH ASSEMBLY - override shutdown, includes switch, socket, bulb and decal

1шт.

91855C1

SWITCH

SWITCH rocker, includes socket and bulb

1шт.

134608A1

LAMP SOCKET

SOCKET - bulb, includes bulb

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

BULB 2 watt

1шт.

137428A1

SYMBOLS

SYMBOL DECAL - red, lens, snap-in

1шт.

52

113699A1

RECTIFIER

RECTIFIER locking, 2-5/8 inch long

2шт.

54

189574A2

TOGGLE SWITCH

SWITCH toggle, PTO

1шт.

55

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

WASHER flat, hardened, 13.5 x 28 x 4 mm

1шт.

56

223565A1

BALL KNOB

KNOB control, PTO switch

1шт.

57

183696A1

INDICATOR

LAMP - green, PTO

1шт.

58

113663A1

SWITCH

SWITCH transport, field, momentary hitch raise/lower, includes switch, socket, bulb and lens

1шт.

245911C1

TOGGLE SWITCH

SWITCH rocker, three position, includes socket and bulb

1шт.

134608A1

LAMP SOCKET

SOCKET - bulb, includes bulb

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

BULB 2 watt

1шт.

83883C1

SYMBOLS

SYMBOL LENS - black, decal, snap-in

1шт.

59

A186061

POTENTIOMETER,10,000 Ohm, 8V

Electrical

2шт.

60

183696A1

INDICATOR

LAMP - indicator, green

1шт.

61

235011A3

PANEL

PANEL secondary control

1шт.

62

243549A1

IGNITION SWITCH

SWITCH slip control, includes bulb and socket

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

BULB 2 watt

1шт.

134608A1

LAMP SOCKET

SOCKET - bulb

1шт.

63

232825A2

UNIT

MODULE - hitch

1шт.

63

336138A1R

REMAN ELECT CONTROL

8910, 8920, Both CASE IH MAGNUM TRACTOR, MODULE - hitch (1/97-12/98), Reman for New PN 232825A2

1шт.

63

336138A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

64

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

WASHER, M6 x 13 x 2, HT

3шт.

65

825-1406

NUT,M6, Cl 8

NUT, M6, Cl 8

3шт.

66

490691C1

LOCK WASHER,#18 Shell

WASHER lock

1шт.

67

490692C1

LOCK NUT,#18 Shell

NUT hex, 1-1/2 inch

1шт.

68

781991C1

BULB,C2F, #182, 14.4V

BULB lamp, indicator

1шт.

69

114255A2

POTENTIOMETER,1000 Ohm, 8V

Gauge, Position

1шт.

70

225164C1

ELEC CONNECTOR

CONNECTOR electrical, type GH, implement receptacle, female

1шт.

71

225168C1

TERMINAL CONNECTOR,Female, 2 - 3 mm2

TERMINAL electrical, female, 14-16 ga., type THI, not shown

3шт.

72

187103A1

ELEC CONNECTOR

CONNECTOR auxiliary power, assembly, Includes: Ref. 73 thru 76

1шт.

73

225165C1

ELEC CONNECTOR

CONNECTOR electrical, type GQ, male, see Ref. 77 for female connector

1шт.

74

225153C1

CONTACT HOUSING

CONNECTOR - electrical, type GX, strain relief clamp

1шт.

75

225166C1

ELEC. TERMINAL PIN,Male, Tin, 1.0 - 2.0mm

TERMINAL electrical, male blade, 14-16 ga., type TJ1, not shown

3шт.

76

NSS

NOT SOLD SEPARAT

CABLE - electrical, 14 gauge, 3 strand, 450 mm (17-3/4 inch) long

1шт.

77

245485C1

ELEC CONNECTOR,Male, 3 Pin

CONNECTOR receptacle, type DK, female, implement plug auxiliary power source, not shown

1шт.

78

225119C1

TERMINAL

TERMINAL - wire, type T1, 14-16 ga., used with 245485C1 connector, not shown

1шт.
