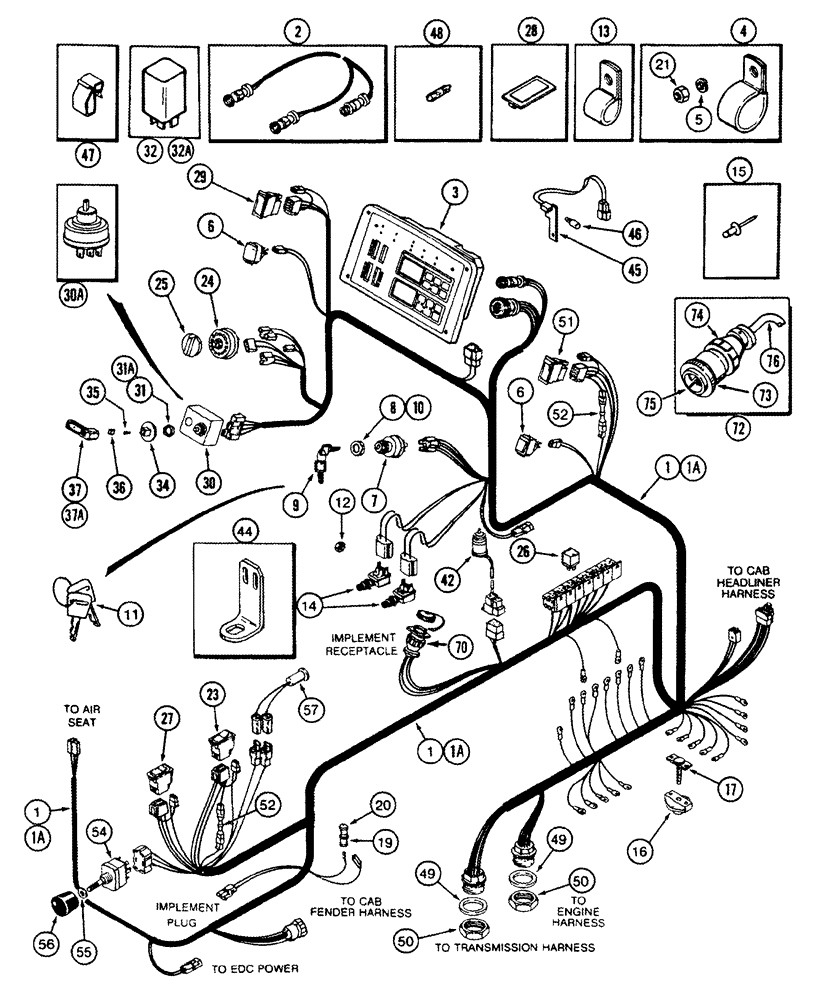

Запчасти Case IH 8920 (4-002) - LOWER CAB HARNESS, WITHOUT HITCH (04) - ELECTRICAL SYSTEMS

1

189571A2

HARNESS

HARNESS cab, lower, Serial Range: -JJA0090823

1шт.

1a

309113A1

HARNESS

HARNESS cab, lower, Start Serial: JJA0090823

1шт.

2

A177090

HARNESS

HARNESS monitor, implement

1шт.

3

1964859C6

CLUSTER

CLUSTER ASSEMBLY - instrument, new, see Figure 4-022

1шт.

3

1964859C6R

REMAN-INSTR CLUSTER

Reman-Instrument Cluster

1шт.

3

1964859C6C

CORE-MONITOR

Return Part Number, Instrument Cluster

1шт.

4

92385C1

CLIP

CLIP retaining

3шт.

5

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

6

92365C1

SWITCH

SWITCH horn and ether start

2шт.

7

282775A1

IGNITION SWITCH

SWITCH ASSEMBLY - ignition, Includes: Ref. 11

1шт.

7

D134737

IGNITION SWITCH

SWITCH ASSEMBLY - ignition, Includes: Ref 8 and 9

1шт.

8

A77314

NUT

NUT hex, special

1шт.

9

A77313

SET OF 2 KEYS

KEY set of 2, metal without padding

1шт.

10

1964785C1

NUT

NUT mounting, ignition switchd

1шт.

11

1964831C2

IGNITION KEY

KEY padded, set of 2, included with switch assembly P/N 282775A1, if used

1шт.

12

122860A1

NUT

NUT switch

1шт.

13

92385C1

CLIP

CLIP retaining, harness

1шт.

14

123014A1

SWITCH

SWITCH brake, differential lock

2шт.

15

151-535

RIVET,Pop, 1/8" x .462"

RIVET, , Break mandrel, to mount three pin connector Pop, 1/8" x .462"

4шт.

16

468647C2

BLOCK ASSY.

BLOCK junction, see Figure 4-026

1шт.

17

1964561C1

BAR

BAR junction, block, buss, see Figure 4-026

1шт.

19

1964773C1

CIGAR LIGHTER

LIGHTER cigar, 12 volt, Includes: Ref.20

1шт.

20

A177447

LIGHTER, CIGARETTE

ELEMENT - pop-out unit, small knob

1шт.

21

425-166

NUT,3/8"-16, G5, Hvy

NUT heavy, hex, 3/8 inch NC

3шт.

23

92346C1

SWITCH

SWITCH differential, lock, includes switch, socket, bulb and lens

1шт.

91956C1

SWITCH ASSY

SWITCH rocker, includes socket and bulb

1шт.

134608A1

LAMP SOCKET

SOCKET - bulb, includes bulb

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

BULB 2 watt

1шт.

83884C1

SYMBOLS

SYMBOL LENS - green, decal, snap-in

1шт.

24

91921C1

SWITCH

SWITCH lighting

1шт.

25

97107C3

BUTTON

KNOB - light switch

1шт.

26

1983394C2

RELAY

RELAY mini, 12 volt

1шт.

27

129130A1

SWITCH

SWITCH MFD, includes switch, socket, bulb and lens

1шт.

NSS

NOT SOLD SEPARAT

SWITCH - rocker, includes socket and bulb

1шт.

134608A1

LAMP SOCKET

SOCKET - bulb, includes bulb

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

BULB 2 watt

1шт.

83884C1

SYMBOLS

SYMBOL LENS - green, decal, snap-in

1шт.

28

245918C1

LENS

PLUG - rectangular, blanking, if used

1шт.

29

92344C1

SWITCH

SWITCH ASSEMBLY - high/low, includes switch, bulb, socket and decal

1шт.

91855C1

SWITCH

SWITCH rocker, includes bulb and socket

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

BULB 2 watt

1шт.

134608A1

LAMP SOCKET

SOCKET - bulb

1шт.

91856C1

SYMBOLS

SYMBOL DECAL - blue, lens, snap-in, high beam

1шт.

30

1987422C1

SWITCH

SWITCH and flasher, Serial Range: -JJA0090823

1шт.

30a

310652A1

FLASHER SWITCH

SWITCH turn signal flasher, Start Serial: JJA0090823

1шт.

31

131-428

LOCK NUT,PAL, 3/4"-20

NUT hex, self-locking, 3/4-20 inch, used with P/N 1987422C1

1шт.

31a

A20467

NUT

NUT hex, used with P/N 310652A1

1шт.

32

92389C2

FLASHER UNIT

FLASHER hazard, Serial Range: JJA0090823-JJA0090943

1шт.

32a

309001A1

FLASHER UNIT,12V

FLASHER turn signal, heavy duty, Start Serial: JJA0090944

1шт.

33

780-34395

SELF-TAP SCREW,Hex Wash Hd, M4.8 x 9.5

SCREW, SELF TAPPING, , Not shown Hex Wash Hd, M4.8 x 9.5, Start Serial: JJA0090944

1шт.

34

97102C1

ADAPTER

ADAPTER lever, turn signal

1шт.

35

170-104

SCREW,Sl Pan Hd, #5 - 40 x 3/8"

SCREW machine, pan head Phillips, No. 5 NC x 3/8 inch

1шт.

36

1329896C1

CLASP

CLIP - retaining, lever

1шт.

37

97103C3

LEVER

LEVER turn, signal, Serial Range: -JJA0090823

1шт.

37a

310654A1

LEVER

LEVER turn, signal, Start Serial: JJA0090823

1шт.

42

92043C3

SWITCH

SWITCH drive, creeper

1шт.

44

96890C2

BRACKET

BRACKET creeper, switch

1шт.

45

1983363C2

LAMP

LIGHT ASSEMBLY - cluster, Includes: Ref. 46

1шт.

46

F64363

BULB

BULB lamp

1шт.

47

104389C1

CLIP

CLIP retaining, light

1шт.

48

3141107R1

BULB,W5/1.2, 12V, 1.2W

BULB 2 watt

4шт.

49

459330C1

LOCK WASHER

WASHER lock, No. 24

2шт.

50

459329C1

NUT

NUT hex, No. 24

2шт.

51

137430A1

SWITCH

SWITCH ASSEMBLY - override shutdown, includes switch, socket, bulb and decal

1шт.

91855C1

SWITCH

SWITCH rocker, includes socket and bulb

1шт.

134608A1

LAMP SOCKET

SOCKET - bulb, includes bulb

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

BULB 2 watt

1шт.

137428A1

SYMBOLS

SYMBOL DECAL - red, lens, snap-in

1шт.

52

113699A1

RECTIFIER

RECTIFIER locking, 2-5/8 inch long

2шт.

54

189574A2

TOGGLE SWITCH

SWITCH toggle, PTO

1шт.

55

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

WASHER flat, hardened, 13.5 x 28 x 4 mm

1шт.

56

223565A1

BALL KNOB

KNOB control, PTO switch

1шт.

57

183696A1

INDICATOR

LAMP indicator, green, PTO

1шт.

70

225164C1

ELEC CONNECTOR

CONNECTOR electrical, type GH, implement receptacle, female

1шт.

71

225168C1

TERMINAL CONNECTOR,Female, 2 - 3 mm2

TERMINAL electrical, female, 14 - 16 ga., type THI, not shown

3шт.

72

187103A1

ELEC CONNECTOR

CONNECTOR auxiliary power, assembly, Includes: Ref. 73 thru 76

1шт.

73

225165C1

ELEC CONNECTOR

CONNECTOR electrical, type GQ, male, see Ref. 77 for female connector

1шт.

74

225153C1

CONTACT HOUSING

CONNECTOR electrical, type GX, strain relief clamp

1шт.

75

225166C1

ELEC. TERMINAL PIN,Male, Tin, 1.0 - 2.0mm

TERMINAL electrical, male blade, 14 - 16 ga., type TJ1, not shown

3шт.

76

NSS

NOT SOLD SEPARAT

CABLE - electrical, 14 gauge, 3 strand, 450 mm (17-3/4 inch) long

1шт.

77

245485C1

ELEC CONNECTOR,Male, 3 Pin

CONNECTOR receptable, type DK, female, implement plug auxiliary power source, not shown

1шт.

78

225119C1

TERMINAL

TERMINAL - wire, type T1, 14-16 ga., used with P/N 245485C1 connector, not shown

1шт.
