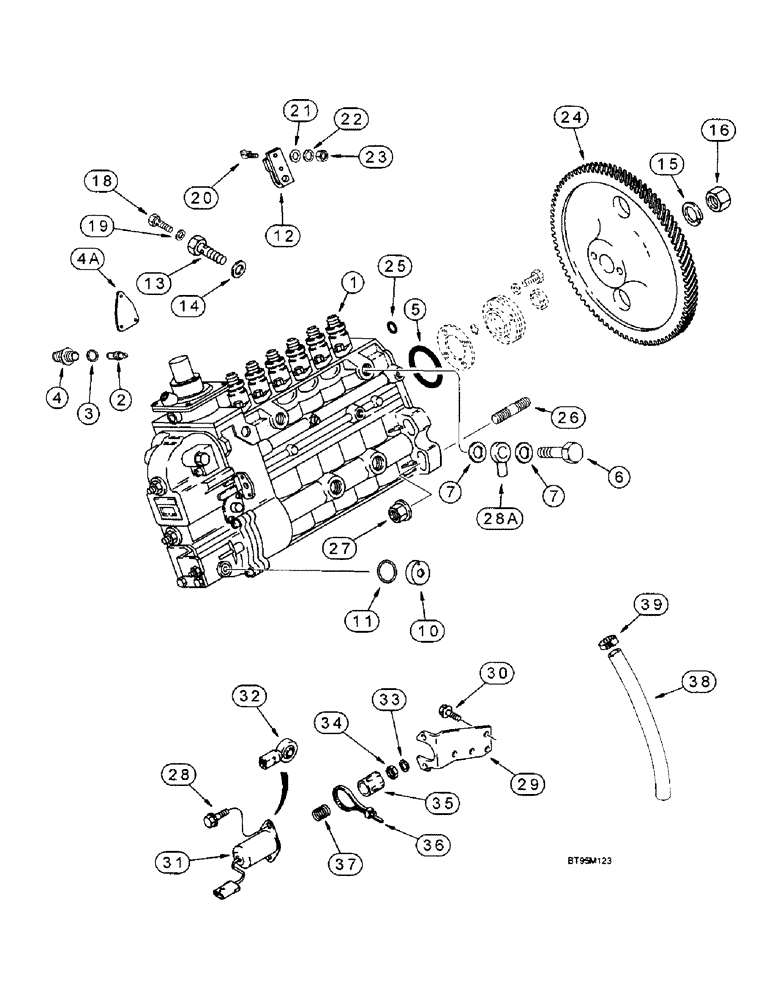

Запчасти Case IH 8920 (3-008) - FUEL INJECTION PUMP AND DRIVE, 6T-830 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

1

J931934

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, 8910 Tractor, Includes: Ref. 2 thru 23

1шт.

1

JR931934

REMAN-INJECTION PUMP

Pump Assembly - injection, remanufactured, component parts shown in this figure do not apply to the remanufactured assembly, 8910 Tractor

1шт.

1

JC931934

CORE-INJECTION PUMP

Return Number, Injection Pump

1шт.

1

J926878

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, 8920 Tractor, Includes: Ref. 2 thru 23

1шт.

1

JR926878

REMAN-INJECTION PUMP

Pump Assembly - injection, remanufactured, component parts shown in this figure do not apply to the remanufactured assembly, 8920 Tractor

1шт.

1

JC926878

CORE-INJECTION PUMP

Return Number, Injection Pump

1шт.

1

JC923235

CORE-INJECTION PUMP

Return Number, use this part number to return pump core for credit when using a remanufactured assembly, 8910 and 8920 Tractors

1шт.

2

A77720

PIN

timing

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

Plug M18 x 24 x 1.5

1шт.

4

J912888

PLUG

timing

1шт.

4a

A71110

GASKET

mounting

1шт.

5

J935032

SEAL

GASKET - sealing, Replaces: P/N J930993

1шт.

6

J912886

VALVE

overflow

1шт.

7

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm, Replaces: P/N 993697R1

1шт.

8

J929322

LEVER

pump shutoff, not shown

1шт.

9

J930683

LOCK NUT

NUT hex, 5 mm - 0.8, not shown

1шт.

10

691292C1

RETAINER

HOUSING - spring return

1шт.

11

680187C1

O-RING,2.5mm Thk x 9mm ID

sealing, special

1шт.

12

1808728C1

LEVER

throttle control

1шт.

13

J913320

SCREW

vent

1шт.

14

691273C1

GASKET,14.2mm ID x 19.9mm OD x 1.5mm Thk

vent screw

1шт.

15

J912897

LOCK WASHER

lock

1шт.

16

J912896

LOCK NUT

hex, self-locking, special

1шт.

18

B41211

SCREW

vent

1шт.

19

933696R1

SEALING RING,M6 x 10 x 1

RING, 6 x 10 mm, vent screw

1шт.

20

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

21

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

22

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

23

829-1306

NUT,M6, Cl 10

hex, 6 mm - 1.0, class 10

1шт.

24

J931379

GEAR

fuel, pump, Replaces: P/N J912615

1шт.

25

J916284

O-RING

- sealing

1шт.

26

J915036

STUD

pump mounting, gear housing to injection pump

4шт.

27

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

hex, flange, 10 mm - 1.5

4шт.

28

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

- hex, flange, special, 6 - 1 x 20 mm

2шт.

28a

J933359

CONNECTOR, ELEC

CONNECTOR banjo, fuel return, replaces: P/N J911447

1шт.

29

J923255

SUPPORT

BRACKET - solenoid mounting

1шт.

30

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

- heavy, hex, flange, 10 - 1.5 x 20 mm

2шт.

31

J930233

SOLENOID

fuel, shutoff, 12 volt, Includes: Ref. 32 thru 37

1шт.

32

L53928

BALL JOINT

JOINT - ball, 1/4 inch NF, Replaces: P/N A146456

1шт.

33

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

34

425-154

JAM NUT,Jam, 1/4"-28, G5

hex, jam, 1/4 inch NF

1шт.

35

J925171

BOOT

protective, plunger

1шт.

36

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, .098" x 8"

1шт.

37

J923887

SPRING

return, plunger

1шт.

38

J930842

FUEL HOSE,330.00 mm

Fuel Drain, Replaces: P/N J918176 330.00 mm

1шт.

39

J923527

CLAMP

band, hose, Replaces: P/N A171099

1шт.
