Запчасти Case IH 8920 (3-006) - FUEL FILTER AND TRANSFER PUMP, 6T-830 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

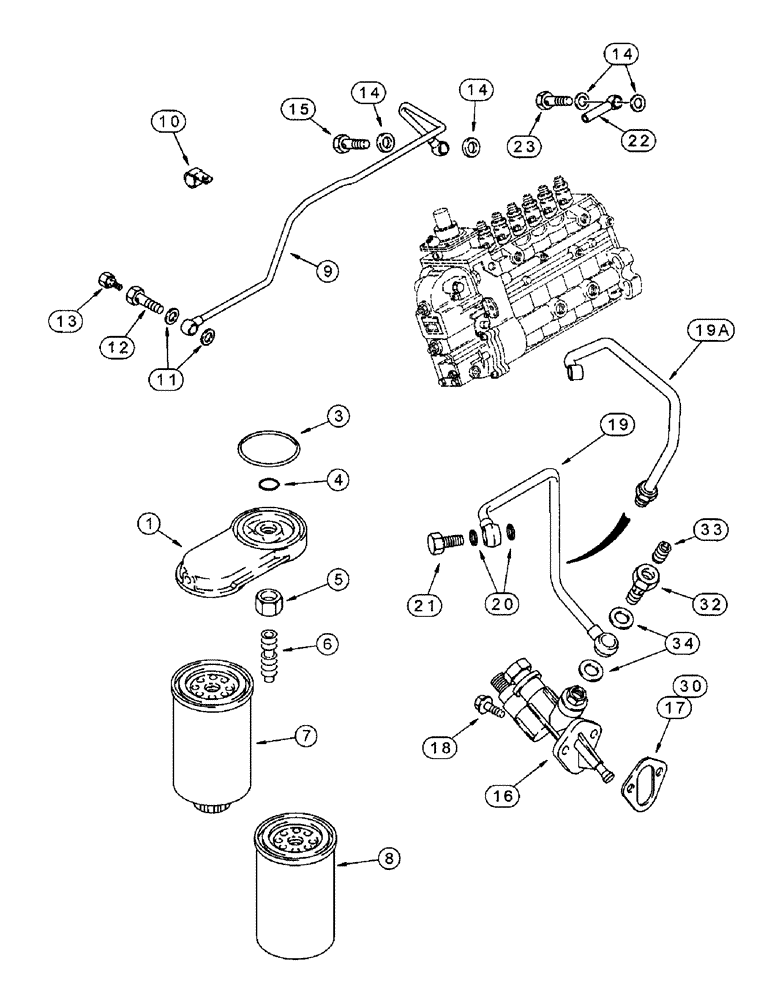

Схема запчастей Case IH 8920 - (3-006) - FUEL FILTER AND TRANSFER PUMP, 6T-830 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM
19
16
3
9
33
15
22
21
14
30
1
17
14
5
8
6
34
20
13
7
23
11
32
19a
10
12
14
18
4

Артикул

Название

Примечание

Количество

1

J897331

SUPPORT

HEAD - fuel filter

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING sealing, 70 mm ID, rectangular, filter head

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING sealing, 14 mm ID, rectangular, adapter

1шт.

5

J903293

JAM NUT

hex, special, 16 mm - 2.0

1шт.

6

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

fuel, filter

1шт.

A77470

SEPARATOR

KIT - fuel filter, Includes: Ref. 7 and 8

1шт.

7

J930942

SEPARATOR

FILTER fuel, primary, Replaces: P/N J925274

1шт.

8

J903640

FILTER, FUEL

FILTER fuel, secondary

1шт.

9

J918873

FUEL TUBE,8 mm OD x 531.9, 92.9 mm L

TUBE supply, fuel

1шт.

10

J914711

CLIP

CLAMP - P-type

1шт.

11

J935171

SEALING WASHER

WASHER sealing special, 12 x 19 x 1.5 mm, Replaces: P/N J918191

2шт.

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special, Includes: Ref.12 and 13

1шт.

12

J911446

BANJO BOLT,M12 x 1.5 x 24mm

BOLT, BANJO, M12 x 1.5 x 24

1шт.

13

J905403

CAPTIVE WASHER SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

SCREW hex, special, vent

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm

4шт.

15

J924725

BANJO BOLT,M14 x 1.5 x 26mm

BOLT banjo, connector

1шт.

16

J933252

FEED PUMP

PUMP lift, fuel, see P/N J926764 repair kit below, Replaces: P/N J925709

1шт.

17

J931059

GASKET

mounting, fuel transfer pump, Replaces: P/N J923054

1шт.

18

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

19

J918537

FUEL TUBE,8 mm OD x 278.9 mm L

TUBE supply, used with Ref. 32, 33 and 34, if used

1шт.

19a

J918539

FUEL TUBE,8 mm OD x 320.7 mm L

TUBE supply, if used

1шт.

20

J935171

SEALING WASHER

WASHER sealing, special, 12 x 19 x 1.5 mm, Replaces: P/N J918191

2шт.

21

J916361

BANJO BOLT

BOLT banjo, connector, 12 - 1.5 x 24 mm

1шт.

22

J911447

CONNECTOR, ELEC

CONNECTOR banjo, fuel return

1шт.

23

J912886

VALVE

overflow, see Ref. 6, Figure 3-008

1шт.

24

J926764

GASKET KIT

KIT transfer, pump, repair, not shown, Includes: Ref. 25 thru 31

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

2шт.

26

NSS

NOT SOLD SEPARAT

GASKET - check valve, not shown

2шт.

27

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

2шт.

29

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.

30

J923054

GASKET

mounting, fuel transfer pump

2шт.

31

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

2шт.

32

J914037

BANJO BOLT

SCREW banjo, connector, if used

1шт.

33

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

Headless, if used Hex Soc, 1/4"-18

1шт.

34

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm, if used

2шт.

Выбрано товаров: 36
