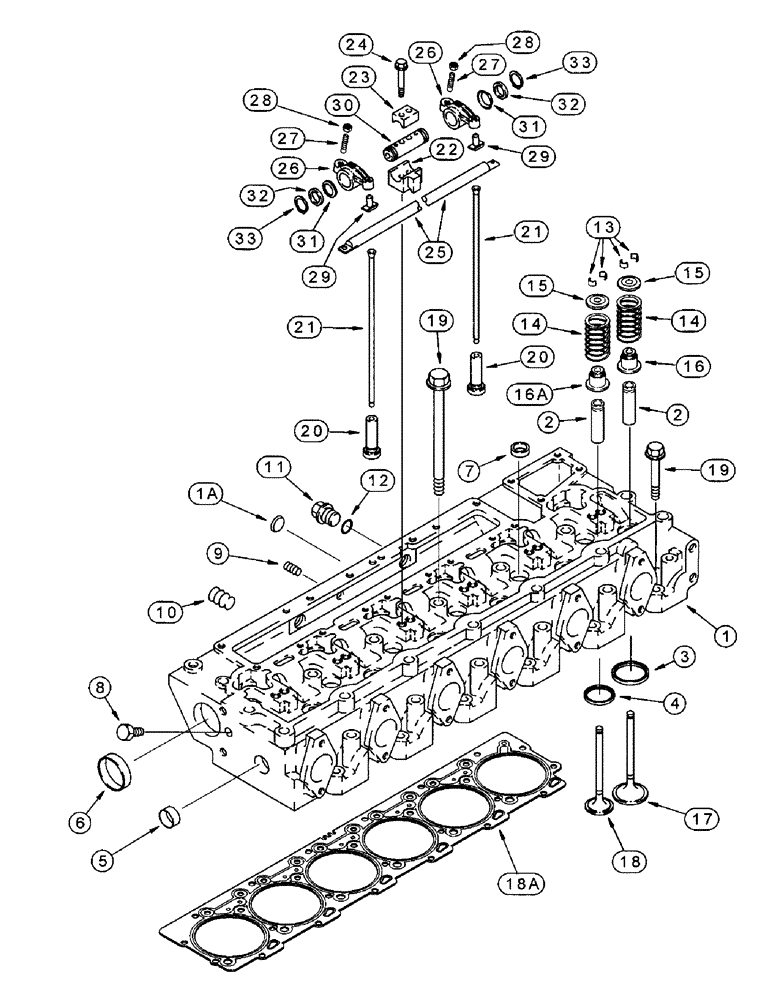

Запчасти Case IH 8920 (2-040) - CYLINDER HEAD AND VALVE MECHANISM, 6T-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

JR925642

HEAD

Head Assembly - cylinder, with valves, remanufactured, component parts shown in this figure do not apply to the remanufactured assembly.

1шт.

JC916464

HEAD

Return Number Use this part number to return head, with valves, for credit when using a remanufactured assembly

1шт.

J925642

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, with valves, Includes: Ref. 1 thru 18

1шт.

84262945R

REMAN-CYLINDER HEAD

8910,8920 Both (1/97-12/98), Reman For New P/N J925642

1шт.

84262945C

CORE-CYLINDER HEAD

Return Number

1шт.

1

J920031

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, without valves, Includes: Ref. 1A thru 7

1шт.

1

84262945R

REMAN-CYLINDER HEAD

8910,8920 Both (1/97-12/98), Reman For New P/N J920031

1шт.

1

84262945C

CORE-CYLINDER HEAD

Return Number

1шт.

1

86990827

REMAN-CYLINDER HEAD

Cylinder Head

1шт.

1

86990828

CORE-CYLINDER HEAD

Return Number

1шт.

1a

J912900

PLUG

PLUG expansion, 24 mm

1шт.

2

J923564

VALVE GUIDE

GUIDE valve, stem

12шт.

3

J924582

INSERT

INSERT seat, intake, valve

6шт.

3

J925468

SEAT, VALVE

INSERT seat, intake, valve, 0.254 mm oversize, service repair only

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

3

J925470

SEAT, VALVE

INSERT seat, intake, valve 0.508 mm oversize, service repair only

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

4

J929005

INSERT

INSERT seat, exhaust valve

6шт.

4

J929006

INSERT

INSERT seat, exhaust valve, 0.254 mm oversize, service repair only

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

4

J929007

INSERT

INSERT seat, exhaust valve, 0.508 mm oversize, service repair only

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

5

J920443

PLUG

PLUG expansion, 30 mm OD

1шт.

6

A77782

PLUG

PLUG expansion, 58 mm OD

2шт.

7

41-1616

PLUG,Cup, 1", Stainless

PLUG, Cup, 1", Stainless

5шт.

8

A77534

PLUG

PLUG hex, 1/16 inch PT

1шт.

9

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

PLUG, , Headless, Replaces P/N A77428 Hex Soc, 1/4"-18

1шт.

10

A77429

PLUG

PLUG hex, socket, 1/2 inch PT

2шт.

11

J924148

PLUG,M22 x 1.5

PLUG hex, magnetic, special, 22 mm - 1.5

2шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER sealing, plug

2шт.

13

J901177

VALVE

KEEPER - valve

24шт.

14

J906412

VALVE SPRING

SPRING, VALVE

12шт.

15

J912976

RETAINER

RETAINER valve, spring

12шт.

16

J915707

SEAL

SEAL intake and exhaust, valve stem and guide, used on intake valve only on Emissions Certified Engines

6шт.

16a

J919038

SEAL

SEAL exhaust valve stem and guide

6шт.

17

J924492

STD INLET VALVE

STD ENGINE INLET VALVE VALVE intake

6шт.

18

J921444

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE VALVE exhaust

6шт.

18a

J935585

GASKET

GASKET cylinder head, standard, Replaces: P/N J928168 gasket, see Ref. 8 in Figure 2-036 for alternate thickness gaskets

1шт.

19

J917728

BOLT

BOLT - cylinder head, 160 mm long

14шт.

19

J917729

BOLT,Flng, M14 x 80mm

BOLT - cylinder head, 80 mm long

12шт.

20

J931623

TAPPET

TAPPET valve, push rod

12шт.

21

J905194

PUSH ROD

ROD push, rocker, arm

12шт.

22

J905870

SUPPORT

SUPPORT shaft, rocker, arm

6шт.

23

J901693

CLAMP

CAMP retaining, shaft

6шт.

24

868-10065

12 PT SCREW,M10 x 65mm, Cl 12.9

SCREW - 12 point flange, 10 - 1.5 x 65 mm, class 12.9

12шт.

25

J919677

TUBE

MANIFOLD oil, rocker, arm

1шт.

26

J901717

ROCKER

ARM ASSEMBLY, rocker, Includes: Ref. 27 thru 29

12шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW slotted set, adjusting, special

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

NUT, 3/8"-24, G5

1шт.

29

NSS

NOT SOLD SEPARAT

INSERT - rocker

1шт.

30

J919435

SHAFT

SHAFT rocker

6шт.

31

J906100

SPRING CUP

WASHER spring

12шт.

32

J907206

WASHER,22.5mm ID x 30mm OD x 1mm Thk

WASHER flat, special

12шт.

33

100-1187

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

12шт.
