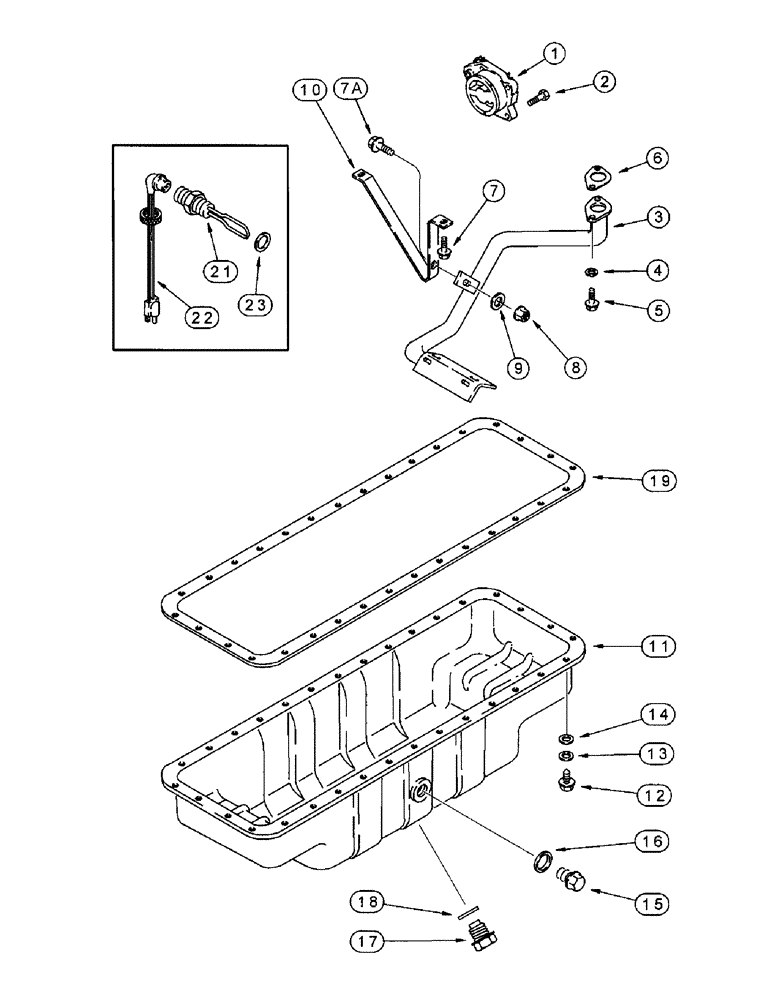

Запчасти Case IH 8920 (2-034) - OIL PUMP, PAN AND HEATER, 6T-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J930338

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, 24 teeth drive gear

1шт.

JR930338

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP ASSEMBLY - oil, remanufactured, North America only, 24 teeth drive gear, for service order P/N J930338 Ref. 1

1шт.

JC926201

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER, Use this part number to return pump core for credit when using a remanufactured assembly

1шт.

JR948071

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC948071

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

J900677

BOLT,Hex

BOLT hex, full threads, 8 - 1.25 x 30 mm, Replaces: P/N 614-8030

4шт.

3

J921719

TUBE

TUBE with screen, oil suction

1шт.

4

J926865

SPACER,6.9mm ID x 12.7mm OD x 14mm L

SPACER mounting, Replaces: P/N J908738 spacer

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

BOLT - heavy, hex, flange, 6 - 1.0 x 30 mm

2шт.

6

J914302

GASKET

GASKET mounting, oil suction tube

1шт.

Part of Gasket Kit P/N A77679

1шт.

7

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

BOLT, Hex Flg, M6 x 15, 8.8, Full Thd

2шт.

7a

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

BOLT - heavy, hex, flange, 6 - 1.0 x 20 mm

1шт.

8

J906216

FLANGE NUT

NUT hex, flange, special, 6 mm - 1.0

1шт.

9

J910960

WASHER

WASHER flat, special

1шт.

10

J927611

BRACKET

BRACE suction, tube

1шт.

11

J914015

ENGINE OIL PAN

PAN oil, engine

1шт.

12

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

SCREW hex, flange, cap, special, Oil pan to block, 8 - 1.25 x 25 mm

32шт.

13

J910266

LOCK WASHER

WASHER spring, Belleville

32шт.

14

J908316

WASHER

WASHER flat, special, 9 x 16 x 1 mm

32шт.

15

J924148

PLUG,M22 x 1.5

PLUG hex, magnetic, special, heater hole, 22 mm - 1.5

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER sealing, plug

1шт.

Part of Gasket Kit P/N A77679

1шт.

17

J924147

PLUG,M18 x 1.5

PLUG hex magnetic, special, drain, 12 mm - 1.5

1шт.

18

J920773

SEALING WASHER

WASHER - sealing, drain plug

1шт.

Part of Gasket Kit P/N A77679

1шт.

19

NSS

NOT SOLD SEPARAT

GASKET - oil pan, order: P/N A77679 gasket kit shown below

1шт.

Part of Gasket Kit P/N A77679

1шт.

A77679

GASKET KIT

KIT gasket, oil pan, includes: Ref. 6, 16, 18 and 19

1шт.

A77580

SERVICE KIT

KIT oil pan heater, engine oil, Includes: Ref. 21, 22

1шт.

When engine oil heater kit is ordered, Ref. 23, P/N J902425 washer must be ordered.

1шт.

21

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 12 volt

1шт.

22

196466A1

ELECTRIC CABLE

CABLE engine block heater, Replaces: P/N J905113 cable

1шт.

23

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER sealing, plug

1шт.

When engine oil heater kit is ordered, Ref. 23, P/N J902425 washer must be ordered.

1шт.
