Запчасти Case IH 8920 (2-021A) - WATER PUMP SYSTEM, 6T-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

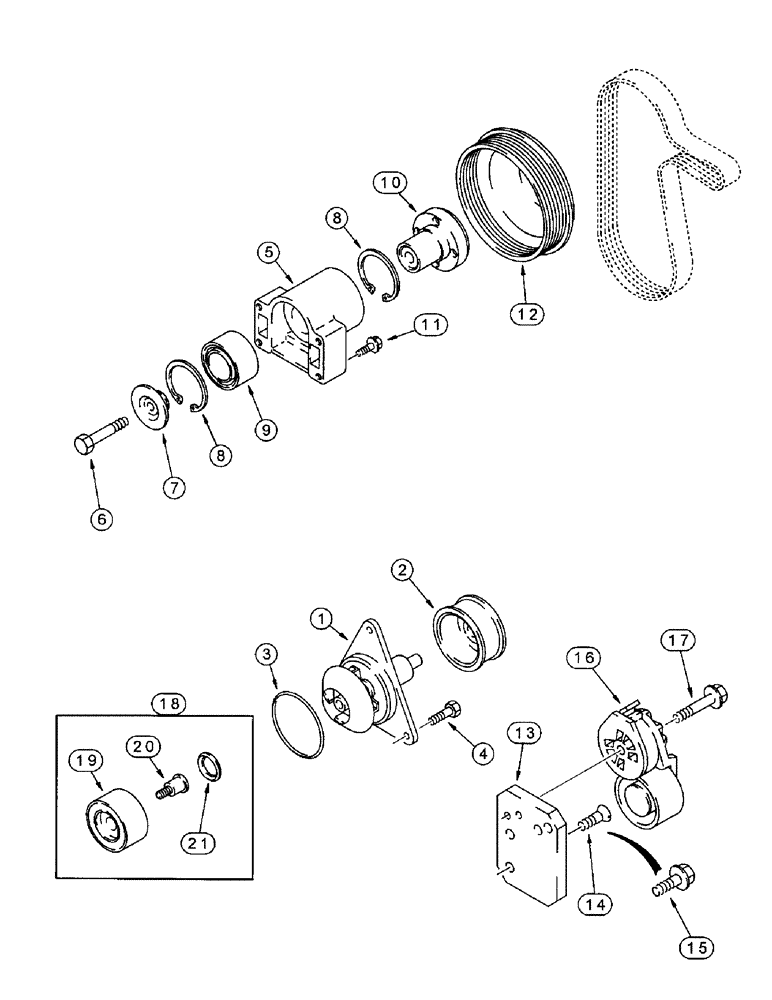

Схема запчастей Case IH 8920 - (2-021A) - WATER PUMP SYSTEM, 6T-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
18
13
7
8
6
4
19
11
12
20
14
15
9
1
5
21
2
10
8
16
3
17

Артикул

Название

Примечание

Количество

J802975

PUMP, WATER

KIT water pump, Replaces: P/N A77704 kit, Includes: Ref. 1 thru 3

1шт.

J800976R

REMAN-WATER PUMP

8910, 8920, Both 6T-830 EMISSIONS CERTIFIED ENGINE (1/97-12/98), Reman for New P/N J802975

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP water, new

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY water pump

1шт.

3

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING sealing

1шт.

4

J934054

FLANGE BOLT

BOLT, hex, flange, 8 - 1.25 x 28 mm, Replaces P/N J926125

3шт.

5

J929458

SUPPORT

ASSEMBLY, fan, Includes: Ref. 6 thru 10

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

hex, special, 10 - 1.5 x 70 mm, class 12.9

1шт.

7

J923044

RETAINER

fan hub

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

Ring, Snap, 2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

BEARING ball

1шт.

10

J911924

HUB

fan

1шт.

11

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

heavy hex flange, 8 - 1.25 x 50 mm, fan support to cylinder head

4шт.

12

J914462

PULLEY,163mm OD

fan, 1.1 to 1 ratio

1шт.

13

J925188

SUPPORT

BRACKET belt tensioner

1шт.

14

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

flat head, cap, torx, special, 8 - 1.25 x 25 mm

1шт.

15

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

Mounting Bracket to Cylinder Head Hex Flg, M8 x 25, 8.8

1шт.

16

J934817

BELT TENSIONER

TENSIONER belt, Replaces: P/N J918944 tensioner

1шт.

17

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

Heavy, Belt tensioner to mounting bracket

1шт.

18

A77817

KIT

KIT belt tensioner pulley, used to replace pulley of P/N J918944 belt tensioner, item 16, Includes: Ref. 19 thru 21

1шт.

19

NSS

NOT SOLD SEPARAT

PULLEY belt tensioner

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT pulley

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL bolt

1шт.

Выбрано товаров: 24
