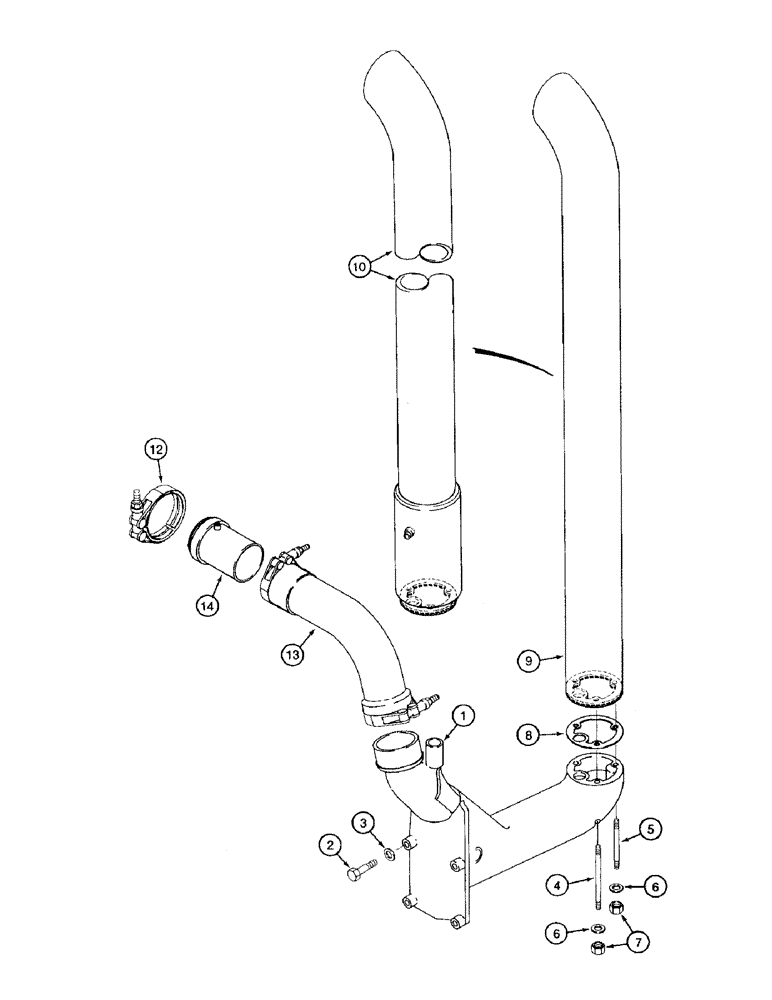

Запчасти Case IH 8920 (2-018) - EXHAUST SYSTEM (02) - ENGINE

1

1998855C2

ELBOW

exhaust casting

1шт.

2

828-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

- hex, 12 - 1.75 x 55 mm, class 10.9

4шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

4

1998799C2

STUD

12 x 150 mm

2шт.

5

1998800C2

STUD

12 x 60 mm

1шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

7

127594A1

NUT

hex, special, 12 mm - 1.75

3шт.

8

1998778C2

GASKET,1.22mm Thk

muffler, Serial Range: elbow-extension

1шт.

9

1347836C3

MUFFLER

PIPE exhaust, muffler extension, if used

1шт.

10

139789A3

MUFFLER

PIPE exhaust, muffler extension, spark arresting muffler, if used, includes plug

1шт.

217-87

PLUG,Hex Hd, 3/8"-18 NPTF, Brass

hex, brass, 3/8 inch PT, not shown

1шт.

12

A170807

CLAMP,102mm ID

retaining, special

1шт.

13

135725A3

TUBE

, Serial Range: TUBE-turbocharger

1шт.

14

180428A2

ADAPTER

turbocharger

1шт.
