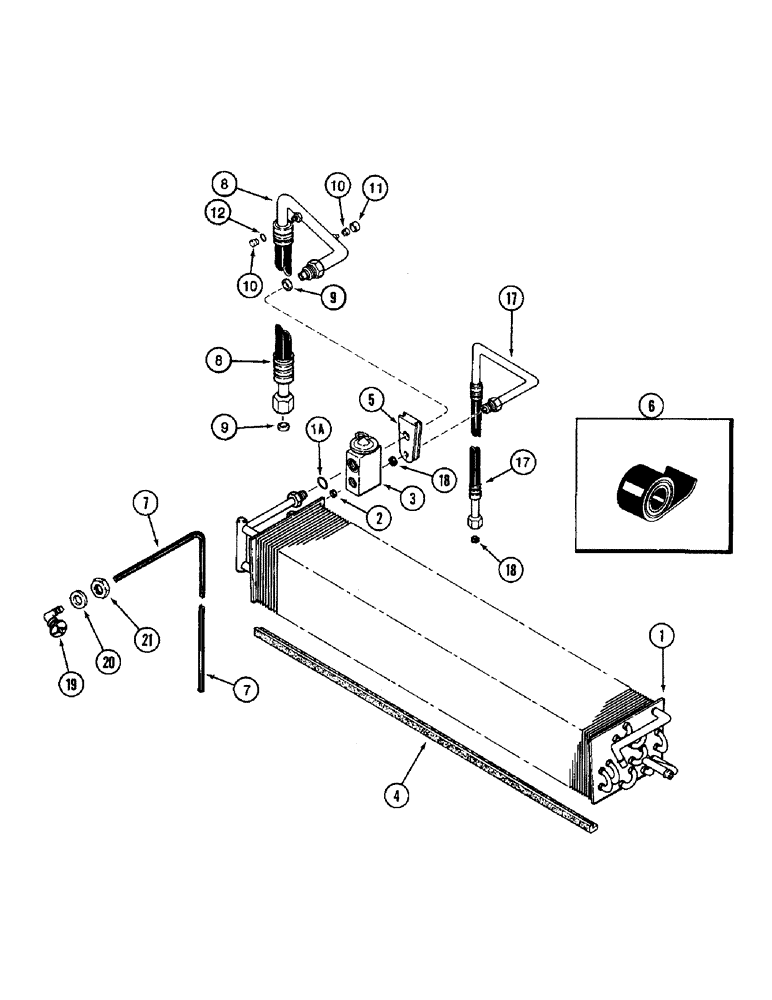

Запчасти Case IH 8920 (9-100) - AIR CONDITIONING, EVAPORATOR (09) - CHASSIS/ATTACHMENTS

1

1990757C2

EVAPORATOR

ASSEMBLY - air conditioning and heater, Includes: Ref. 1A thru 3

1шт.

1a

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide

1шт.

2

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16 inch wide

1шт.

3

1990756C2

VALVE

expansion

1шт.

4

98357C1

SEALING STRIP

13 (1/2) x 790 (31-3/32) x 25 mm (1 inch) thick, cut from P/N 1974884CX seal, see below

1шт.

5

1954790C1

GROMMET

rubber, evaporator tubes

1шт.

6

83822C1

TAPE

610 mm (24 inch) long, rubber, insulator

1шт.

7

1266352C2

HOSE,0.28" ID, SAE J1037

Cut from 877669CX Bulk Hose, Condensate

2шт.

8

123329A1

HOSE

1790 mm (70-15/32 inch) long, discharge, R12 refrigerant applications only, see P/N 123329A2 hose below, Includes: Ref. 9 thru 12

1шт.

8

123329A2

HOSE

1790 mm (70-15/32 inch) long, discharge, 134A or R12 refrigerant applications, Includes: Ref. 9 thru 12

1шт.

9

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide

2шт.

10

1250594C2

CORE

VALVE

2шт.

11

122553A1

CAP

sealing, low side service port

1шт.

12

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide, at pressure switch fitting

1шт.

17

1999928C1

HOSE

14760 mm (69-19/64 inch) long, cab liquid, Includes: Ref. 18

1шт.

18

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide

2шт.

19

1974764C1

FITTING

drain, condensate hose

2шт.

20

1340439C1

SEALING WASHER

drain, for service order P/N 238-5210 O-ring

2шт.

21

1340438C1

NUT

drain fitting

2шт.

87769CX

LARGE HOSE

HOSE,LARGE rubber, bulk roll, 7 (9/32) ID x 27432 mm (1080 inch) long

1шт.

98390C1

SEALING STRIP

SEAL - 13 (1/2) wide x 1000 (39-3/8) long x 25 mm (1 inch) thick

1шт.

1974884CX

SEAL

bulk roll, 13 (1/2) wide x 15240 mm (600 inch) long x 25 mm (1 inch)

1шт.

1954475C1

ROLL

TAPE - bulk, 63.5 x (2-1/2) x 9150 (360) long x 3 mm (1/8 inch) thick

1шт.
