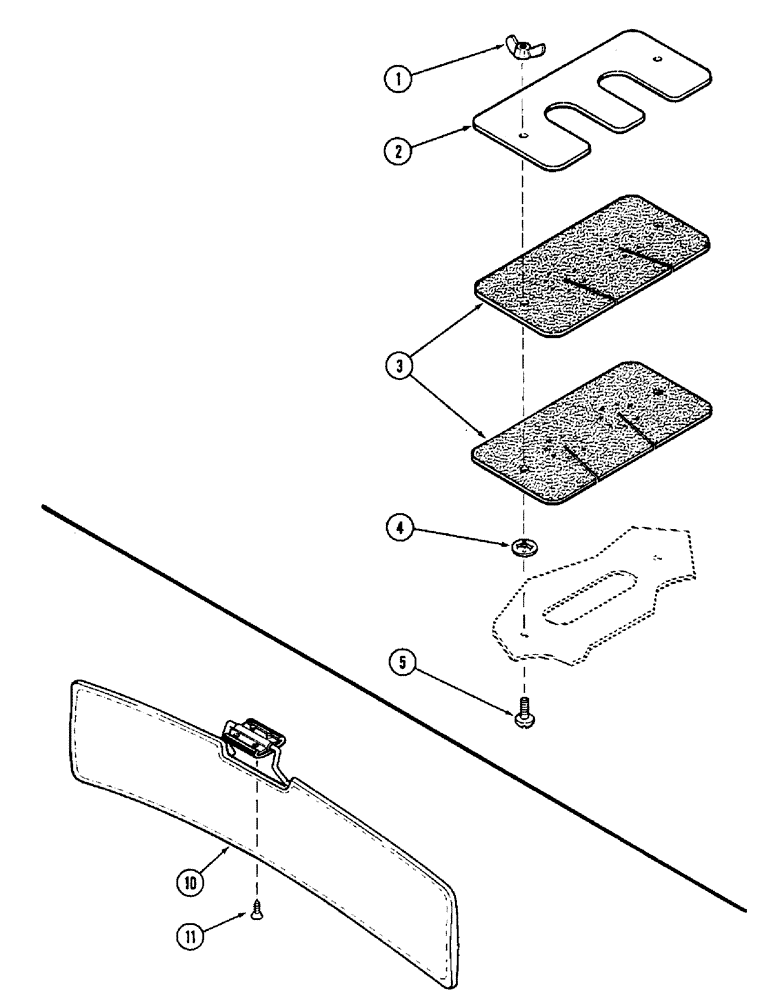

Запчасти Case IH 8920 (9-084) - CAB, REAR ACCESS AND SUNVISOR KITS (09) - CHASSIS/ATTACHMENTS

A167146

PACKAGE

KIT - access, rear, cab, order from Machinery Price List, Includes: Ref. 1 thru 5

1шт.

1

129-500

WING NUT,#10-32

2шт.

2

A165352

PLATE

cable access

1шт.

3

A165354

SEAL

cable access

2шт.

4

A165523

FASTENER

RETAINER - special

2шт.

5

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

2шт.

A67885

VISOR, SUN

KIT - operator, order from Machinery Price List, Includes: Ref. 10 and 11

1шт.

10

97133C1

VISOR, SUN

1шт.

11

1971367C2

SELF-TAP SCREW,Cross Oval Hd, #10-16 x 3/4"

Polyseal

2шт.
