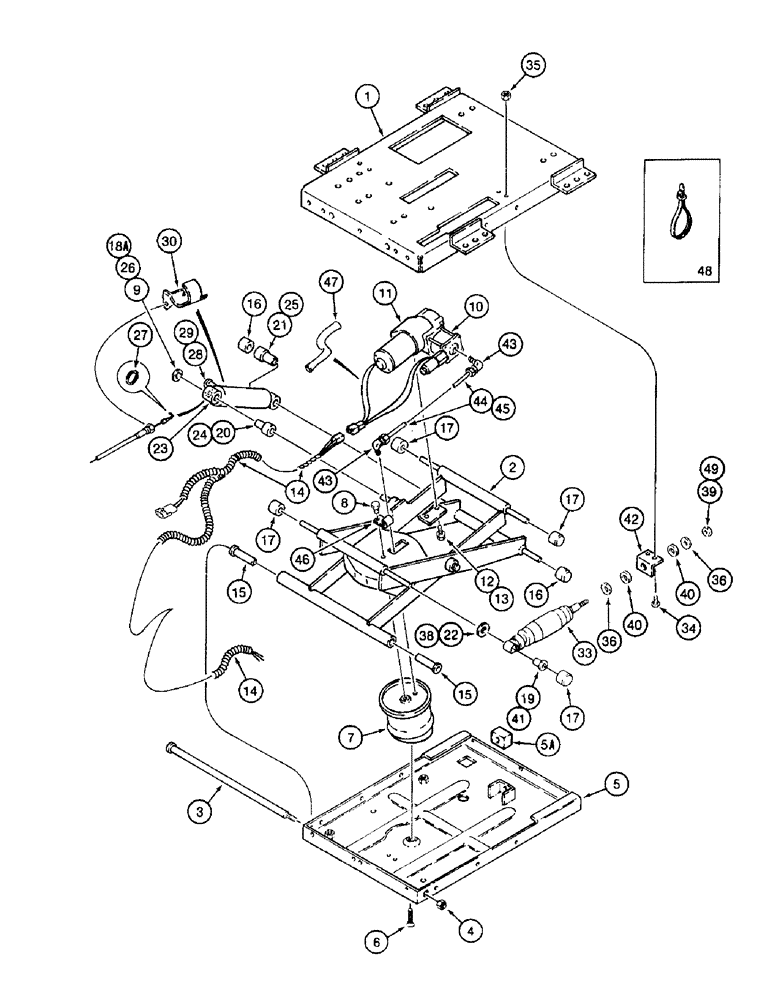

Запчасти Case IH 8920 (9-060) - DELUXE AIR SUSPENSION SEAT, SUSPENSION (09) - CHASSIS/ATTACHMENTS

1999936C3

SEAT ASSY.

deluxe air suspension, Includes: Ref. 1 thru 49 in this figure and parts in Figures 9-052, 9-056 and 9-064

1шт.

132861A3

SUPPORT ASSY.

KIT - suspension, service, Includes: Ref. 1 thru 49 in this figure and parts in Figure 9-056 and 9-064

1шт.

1

241189A1

HOUSING

upper, suspension, Replaces: P/N 1990642C1 housing

1шт.

2

132862A1

DIPPER

ARM - suspension

1шт.

3

A49529

SHAFT

bushing tube

1шт.

4

230-4216

LOCK NUT,3/8"-16, GA

1шт.

5

226560A1

HOUSING

lower

1шт.

5a

A45054

BUMPER,Neoprene

seat, housing

1шт.

6

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

1шт.

197793A1

SPRING

KIT - air spring, Includes: (3) tie straps and Ref. 7

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - air

1шт.

7

NSS

NOT SOLD SEPARAT

CLAMP - J-type

1шт.

8

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

9

131-425

PUSH-ON NUT,Push, 1/2"

1шт.

132864A1

KIT

KIT - compressor/valve, Includes: valve, air line tubing, (2) sleeves and (2) nuts, and Ref. 10 thru 12

1шт.

10

NSS

NOT SOLD SEPARAT

COMPRESSOR - air

1шт.

11

NSS

NOT SOLD SEPARAT

BRACKET - compressor mounting

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - special

2шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

14

132867A1

HARNESS

wire

1шт.

180594A3

KIT

KIT - rollers and bearings, Includes: (2) bushings, (2) spacers, and Ref. 15 thru 22A, also includes: latch bar and spacer, not shown

1шт.

15

A47760

BUSHING

TUBE - bearing, shaft

2шт.

16

NSS

NOT SOLD SEPARAT

ROLLER - suspension

2шт.

17

NSS

NOT SOLD SEPARAT

ROLLER - bearing, wide

2шт.

18

NSS

NOT SOLD SEPARAT

ROLLER - bearing, narrow, not shown

2шт.

18a

131-425

PUSH-ON NUT,Push, 1/2"

1шт.

19

NSS

NOT SOLD SEPARAT

BEARING - fore/aft shock

1шт.

20

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, upper

1шт.

21

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, lower

1шт.

21a

NSS

NOT SOLD SEPARAT

BEARING - isolator tube, not shown

1шт.

21b

NSS

NOT SOLD SEPARAT

BEARING - patch bar, not shown

1шт.

22

NSS

NOT SOLD SEPARAT

SPACER - shock

1шт.

22a

NSS

NOT SOLD SEPARAT

BEARING - isolator tube, not shown, see Ref. 7 in Figure 9-064

1шт.

132866A1

SHOCK ABSORBER

KIT - shock absorber, Includes: Ref. 23 thru 30

1шт.

23

NSS

NOT SOLD SEPARAT

ABSORBER - shock

1шт.

24

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, upper

1шт.

25

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, lower

1шт.

26

131-425

PUSH-ON NUT,Push, 1/2"

1шт.

27

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

28

138-317

LOCK PIN,1/8" x 5/8", Slotted

1шт.

29

NSS

NOT SOLD SEPARAT

ARM - actuator

1шт.

30

144514A1

SUPPORT

BRACKET - cable control, shock

2шт.

227546A1

KIT

KIT - shock, fore/aft, Includes: Ref. 33 thru 41

1шт.

33

NSS

NOT SOLD SEPARAT

SHOCK - fore/aft

1шт.

34

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

2шт.

35

231-1444

NUT,1/4"-20, GB

2шт.

36

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

38

NSS

NOT SOLD SEPARAT

SPACER - shock

1шт.

39

230-4715

LOCK NUT,5/16"-24, GA

Hex

1шт.

40

A49679

BUSHING

rubber

2шт.

41

NSS

NOT SOLD SEPARAT

BEARING - fore/aft shock

1шт.

42

1981845C1

ANGLE

mounting, shock mounting

1шт.

132871A1

SET OF PARTS

KIT - fitting, Includes: Ref. 43 thru 46

1шт.

43

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree, compression

2шт.

44

NSS

NOT SOLD SEPARAT

TUBE - nylon

1шт.

45

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

2шт.

46

NSS

NOT SOLD SEPARAT

CLAMP - J-type

1шт.

47

179026A1

TUBE

SLEEVE - guard, 10 (3/8) ID x 615 mm (24-1/4 inch) long

1шт.

48

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

3шт.

49

230-4715

LOCK NUT,5/16"-24, GA

Hex

1шт.
