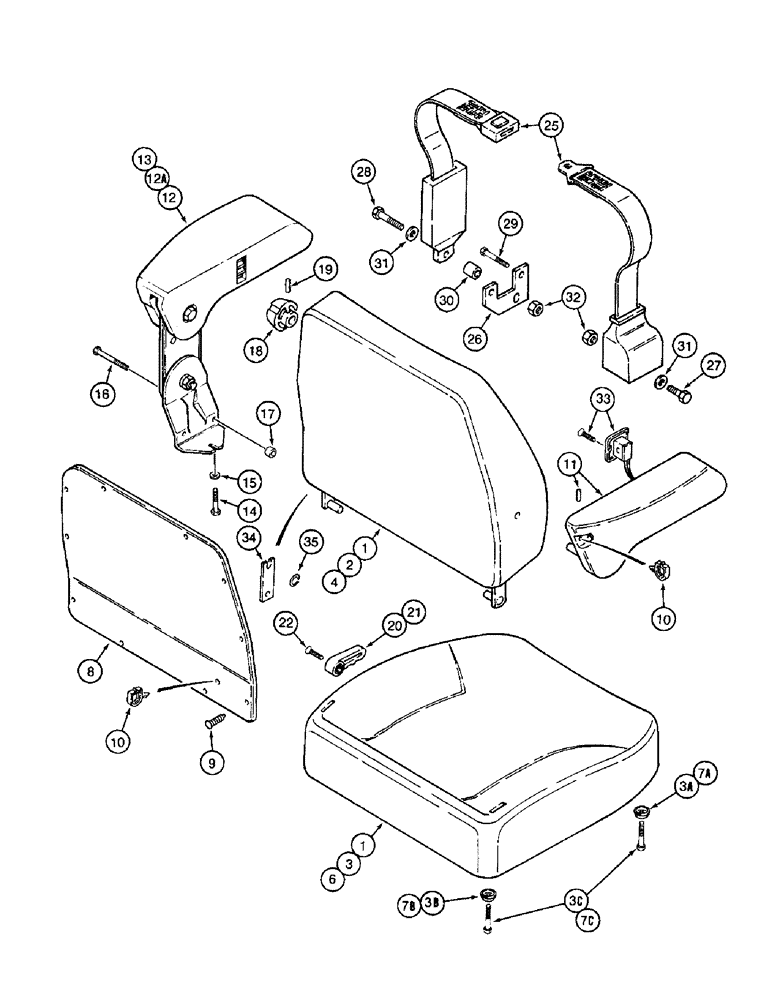

Запчасти Case IH 8920 (9-052) - DELUXE AIR SUSPENSION SEAT, CUSHIONS, ARM RESTS, AND SEAT BELT (09) - CHASSIS/ATTACHMENTS

1999936C3

SEAT ASSY.

deluxe air suspension, Includes: Ref. 1 thru 35 in this figure and parts in Figures 9-056 thru 9-064

1шт.

1

134181A2

PACKAGE

KIT - seat top, without armrest, includes seat cushion and backrest, complete

1шт.

2

132886A1

BACKREST

KIT - backrest, cloth, without armrest, with structure

1шт.

132888A2

PACKAGE

KIT - seat cushion, with structure, Includes: Ref. 3, 3A, 3B and 3C

1шт.

3

NSS

NOT SOLD SEPARAT

CUSHION - seat, with frame

1шт.

3a

187006A1

CUP

SPACER - cupped, 3/8 inch bolt size

2шт.

3b

700711545

CUP WASHER

SPACER - cupped, 5/8 inch bolt size

2шт.

3c

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

132884A1

BACKREST

KIT - backrest pad only, cloth, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

PAD - backrest

1шт.

5

NSS

NOT SOLD SEPARAT

RING - fastener, not shown

25шт.

223395A1

PACKAGE

KIT - seat cushion pad, Includes: Ref. 6 thru 7C

1шт.

6

NSS

NOT SOLD SEPARAT

PAD - seat cushion

1шт.

7

NSS

NOT SOLD SEPARAT

RING - fastener, not shown

32шт.

7a

187006A1

CUP

SPACER - cupped, 3/8 inch

2шт.

7b

700711545

CUP WASHER

SPACER - cupped, 5/8 inch

2шт.

7c

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

1974713C2

PACKAGE

KIT - backrest cover and retainers, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - backrest plate

1шт.

9

1999693C1

KIT

CLIP - christmas tree, package of 14, retaining, plastic

1шт.

10

NSS

NOT SOLD SEPARAT

CLIP - cable retaining

2шт.

11

143199A1

ARMREST

right-hand, black, includes switch cover plug

1шт.

12

143214A1

ARMREST

LH, Complete

1шт.

12a

132882A1

ARMREST

LH, Molded Pad Only, Black

1шт.

13

132883A1

SET OF PARTS

KIT - left-hand armrest adjustment, includes thumb wheel, cable, hub latch, bolt, nut and (2) washers

1шт.

14

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

15

495-11034

WASHER,5/16", SAE

(Flat, 11/32 x 11/16 x 1/16")

1шт.

16

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

17

1343875C1

SPACER

25/64 ID x 1/2 inch

2шт.

1999691C1

PACKAGE,SERVICE

KIT - seat knob, upper, Includes: Ref. 18 thru 24

1шт.

18

NSS

NOT SOLD SEPARAT

KNOB - lumbar

1шт.

19

38-31016

PIN,5/32" x 1", Coiled

2шт.

20

1974711C1

LEVER

KNOB - backrest tilt

1шт.

21

NSS

NOT SOLD SEPARAT

HANDLE - recliner

1шт.

22

942-1612

SCREW,Oval CSK, M6 x 12mm, Cl 4.8

1шт.

23

NSS

NOT SOLD SEPARAT

KNOB - seat tilt, not used, not shown

1шт.

24

NSS

NOT SOLD SEPARAT

KNOB - fore/aft, not used, not shown

1шт.

1344158C3

SAFETY BELT

KIT seat, complete, , Includes: Ref. 25 thru 32

1шт.

25

1343982C1

SAFETY BELT

SAFETY BELT

1шт.

26

1975957C1

BRACKET

seat belt, left-hand

1шт.

27

328-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

1шт.

28

328-732

BOLT,Hex, 7/16" - 20 x 2", Gr 8

1шт.

29

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

30

1343875C1

SPACER

25/64 ID x 1/2 inch

1шт.

31

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

flat, 17/32 x 1-1/16 x 3/32 inch

2шт.

32

232-4117

LOCK NUT,7/16"-14, GC

2шт.

33

132868A1

SET OF PARTS

KIT - height adjustment, includes (3) cover plate, (1) rocker switch, and (4) screws, included in P/N 132861A3 suspension kit

1шт.

34

141566A1

LARGE PLATE

PLATE, LARGE reinforcement, seat frame to backrest frame, left-hand

1шт.

35

176091A1

PACKAGE,SERVICE

KIT - retaining, hog ring, package of 50 rings for cushions

1шт.
