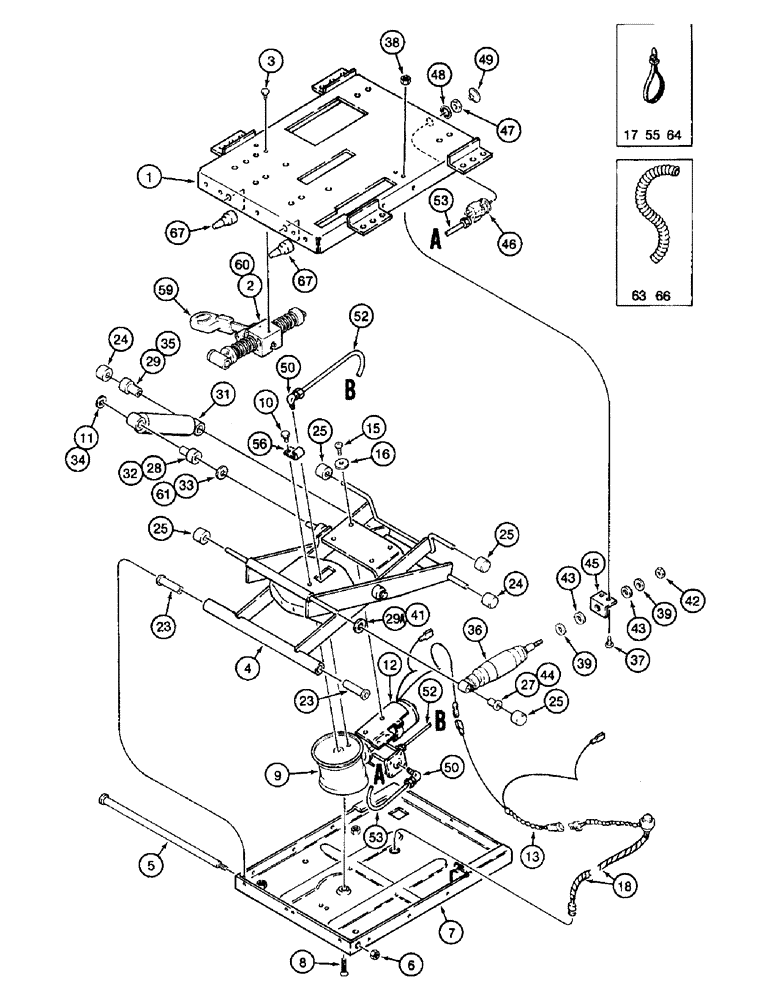

Запчасти Case IH 8920 (9-046) - STANDARD AIR SUSPENSION SEAT, SUSPENSION (09) - CHASSIS/ATTACHMENTS

1999934C2

SEAT ASSY.

standard air suspension, Includes: Ref. 1 thru 28 in Figure 9-042, Ref. 1 thru 17 in Figure 9-044, suspension kit and Ref. 1 thru 67 in this figure, and boot kit and Ref. 1 thru 21 in Figure 9-050

1шт.

241196A1

SUSPENSION

KIT - service, Replaces: P/N 1990648C5, Includes: Ref. 1 thru 67 in this figure and boot kit and Ref. 1 thru 18 in Figure 9-050

1шт.

1

241189A1

HOUSING

upper, suspension, Replaces: P/N 1990642C1

1шт.

2

1990645C1

LATCH

ASSEMBLY - isolator, fore and aft, component parts not serviced separately, see Figure 9-050 for exploded view of parts

1шт.

3

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

2шт.

4

1990643C1

FRAME ASSY

ARM - scissor, suspension

1шт.

5

A49529

SHAFT

bushing tube

1шт.

6

231-4206

LOCK NUT,Hex, 3/8"-16, GB

1шт.

7

226560A1

HOUSING

lower, replaces 1981834C1 housing

1шт.

7a

A45054

BUMPER,Neoprene

seat, used with 226560A1 housing, not shown

1шт.

8

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

1шт.

197793A1

SPRING

KIT - air spring, Includes: (3) tie straps and Ref. 9

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING - air

1шт.

9

NSS

NOT SOLD SEPARAT

CLAMP - J-type

1шт.

10

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

11

131-425

PUSH-ON NUT,Push, 1/2"

1шт.

1999947C4

COMPRESSOR

KIT, Includes: Ref. 12 thru 18

1шт.

12

NSS

NOT SOLD SEPARAT

COMPRESSOR - air

1шт.

13

134237A2

HARNESS

compressor wire

1шт.

14

NSS

NOT SOLD SEPARAT

SPACER - 7/32 ID x 11/32 OD, not used, not shown

2шт.

15

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

2шт.

16

495-31022

WASHER,#10

2шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

2шт.

18

134456A1

HARNESS

wire adapter, with grommet

1шт.

19

1981849C2

SHOCK ABSORBER

BUMPER - rubber, upper housing, not shown, see Figure 9-044, Ref. 15 for view of bumper

2шт.

1990647C2

KIT

KIT - boot, suspension, with buttons, not shown, see Figure 9-050 for illustration of boot kit, Includes: Ref. 20 thru 22A

1шт.

20

NSS

NOT SOLD SEPARAT

BOOT - suspension, not shown

1шт.

132872A1

KIT

Boot pin, package of 23 retainers and 3 dome nuts, Includes: Ref. 21 thru 22A, not shown

1шт.

21

NSS

NOT SOLD SEPARAT

NUT - dome, not shown

3шт.

22

NSS

NOT SOLD SEPARAT

CLIP - retaining, plastic, not shown

23шт.

22a

NSS

NOT SOLD SEPARAT

CLIP - dart, plastic, not shown

3шт.

180594A3

KIT

KIT - rollers and bearings, Includes: (2) bushings, (6) rollers, (1) push nut, (5) bearings and (2) spacers, also includes (1) spacer, not shown Ref. 23 thru 30 and Ref. 34 nut

1шт.

23

NSS

NOT SOLD SEPARAT

BUSHING - shaft

2шт.

24

NSS

NOT SOLD SEPARAT

ROLLER - suspension

2шт.

25

NSS

NOT SOLD SEPARAT

ROLLER - bearing, wide

2шт.

25a

NSS

NOT SOLD SEPARAT

ROLLER - bearing, narrow, not shown

2шт.

26

NSS

NOT SOLD SEPARAT

BEARING - isolator latch tube, not shown, see Figure 9-050, Ref. 13 or 18 for view of bearing

1шт.

27

NSS

NOT SOLD SEPARAT

BEARING - fore/aft shock

1шт.

28

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, upper

1шт.

29

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, lower

1шт.

29a

NSS

NOT SOLD SEPARAT

SPACER - shock

1шт.

30

NSS

NOT SOLD SEPARAT

BEARING - latch bar, not used, not shown

1шт.

1344250C2

KIT

KIT - shock absorber, suspension, Includes: Ref. 31 thru 35

1шт.

31

NSS

NOT SOLD SEPARAT

ABSORBER - shock

1шт.

32

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, upper

1шт.

33

A45519

WASHER

flat, plastic, special, 33/64 x 1-1/8 x 1/16 inch

1шт.

34

131-425

PUSH-ON NUT,Push, 1/2"

1шт.

35

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, lower

1шт.

227546A1

KIT

KIT - shock, fore/aft, Includes: Ref. 36 thru 44

1шт.

36

NSS

NOT SOLD SEPARAT

SHOCK - fore/aft

1шт.

37

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

2шт.

38

231-1444

NUT,1/4"-20, GB

2шт.

39

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

41

NSS

NOT SOLD SEPARAT

SPACER - shock

1шт.

42

230-4715

LOCK NUT,5/16"-24, GA

Hex

1шт.

43

A49679

BUSHING

rubber

2шт.

44

NSS

NOT SOLD SEPARAT

BEARING - fore/aft shock

1шт.

45

1981845C1

ANGLE

mounting, shock mounting

1шт.

1981852C3

SWITCH

ASSEMBLY - air control, valve, Includes: Ref. 46 thru 49

1шт.

46

NSS

NOT SOLD SEPARAT

SWITCH - air control

1шт.

47

NSS

NOT SOLD SEPARAT

NUT - hex, jam, 5/8 inch NF

1шт.

48

493-11065

LOCK WASHER,Ext-Int Tooth, 5/8"

1шт.

49

1987186C2

KNOB

switch, air suspension

1шт.

1990548C4

KIT

KIT - air line and fittings, Includes: Ref. 50 thru 56 and (2) elbows, (1) tee, (2) adapters, 3.5 feet nylon tubing, (5) tie straps and (1) J-clip

1шт.

50

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree, compression

2шт.

51

NSS

NOT SOLD SEPARAT

TEE - male, 5/32 x 5/32 tube x 1/8 NPT, not shown, not used

1шт.

52

NSS

NOT SOLD SEPARAT

TUBE - nylon, 1/4 x 11-5/8 inch

1шт.

53

NSS

NOT SOLD SEPARAT

TUBE - nylon, 1/4 x 28 inch

1шт.

54

NSS

NOT SOLD SEPARAT

ADAPTER - tube, plastic, not used, not shown

1шт.

55

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

4шт.

56

NSS

NOT SOLD SEPARAT

CLAMP - J-type

1шт.

1999692C1

LEVER ASSY & KNOB

KIT - knob, air suspension, not shown, Includes: Ref. 57 thru 59

1шт.

57

NSS

NOT SOLD SEPARAT

KNOB - swivel latch, not used, not shown

1шт.

58

NSS

NOT SOLD SEPARAT

KNOB - lateral isolator, not used, not shown

1шт.

59

NSS

NOT SOLD SEPARAT

KNOB - fore/aft isolator latch assembly, not shown, see Ref. 17 in Figure 9-050 for view of knob

1шт.

60

NSS

NOT SOLD SEPARAT

SPRING - isolator latch lock, not shown, see Ref. 5 in Figure 9-050 for view of spring, order P/N 1990645C1 kit in Figure 9-050

1шт.

61

A45519

WASHER

flat, plastic, special, 33/64 x 1-1/8 x 1/16 inch

1шт.

63

179026A1

TUBE

SLEEVE - guard, 10 (3/8) ID x 615 mm (24-1/4 inch) long

1шт.

64

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

2шт.

65

NSS

NOT SOLD SEPARAT

SCREW - special, 1/4 NC x 3/4 inch, not shown, see Ref. 14 in Figure 9-044 for view of screw

2шт.

66

179026A1

TUBE

SLEEVE - guard, 10 (3/8) ID x 615 mm (24-1/4 inch) long

1шт.

67

133422A1

BUMPER

down stop, not shown, see Ref. 12 in Figure 9-044 for view of bumper

2шт.
