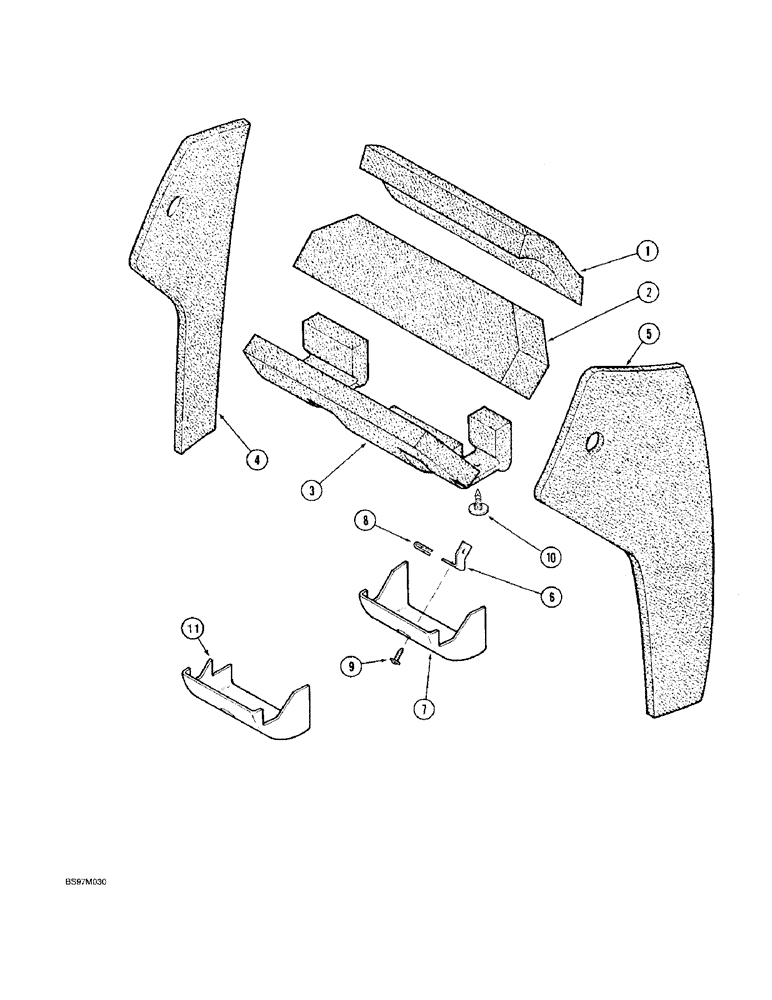

Запчасти Case IH 8920 (9-036) - INSTRUMENT PANEL, ACOUSTICAL (09) - CHASSIS/ATTACHMENTS

1

1977661C1

PAD

upper instrument housing

1шт.

2

1977660C2

PAD

front console

1шт.

3

1977659C2

PAD

front console lower

1шт.

4

1977663C1

PAD

instrument side panel, left

1шт.

5

1977662C1

PAD

instrument side panel, right

1шт.

6

1977738C1

SUPPORT

BRACKET - console cover

1шт.

7

1977737C1

COVER ASSY

console pad lower, without manual shuttle shift

1шт.

8

96900C1

SPRING NUT,U, #10-16, Panel type

1шт.

9

1975919C1

SELF-TAP SCREW

special, No. 10 - 16 x 1 inch, black

8шт.

10

1977865C1

CLIP

christmas tree

2шт.

11

298566A1

COVER

console pad lower, with manual shuttle shift

1шт.
