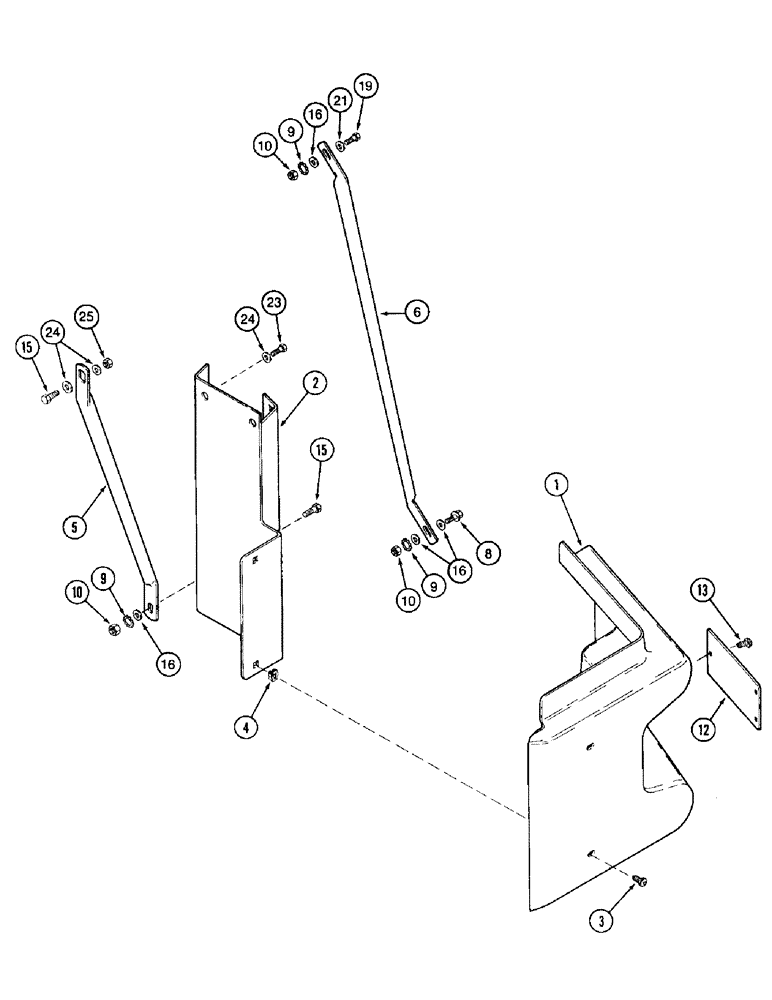

Запчасти Case IH 8920 (9-030) - HYDRAULIC OIL FILTER COVER (09) - CHASSIS/ATTACHMENTS

1

1348227C1

COVER ASSY

filter, hydraulic

1шт.

2

248933A1

ANGLE

hydraulic filter cover mounting

1шт.

3

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

4шт.

4

104036C1

NUT

expansion, No. 10

4шт.

5

1348243C1

SUPPORT

mounting, filter cover

1шт.

6

1348244C1

SUPPORT

hydraulic filter cover support

1шт.

8

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Full threads

1шт.

9

893-11006

LOCK WASHER,Ext Tooth, M6

3шт.

10

825-10406

NUT - hex, self-locking, 6 mm - 1.0, Replaces: P/N 825-1406 nut

NUT

3шт.

12

1334657C1

LARGE PLATE

PLATE, LARGE cover, models without lower flood lamp

1шт.

13

1960750C1

SCREW,Pan HD, 1/4" - 20 x 3/8"

special, 1/4 NC x 3/8 inch

3шт.

15

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

16

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

19

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

1шт.

21

495-81286

WASHER,.281" x 1 1/8" x .060"

hardened

1шт.

23

628-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

2шт.

24

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

25

829-1412

NUT,M12, Cl 10.9

1шт.
