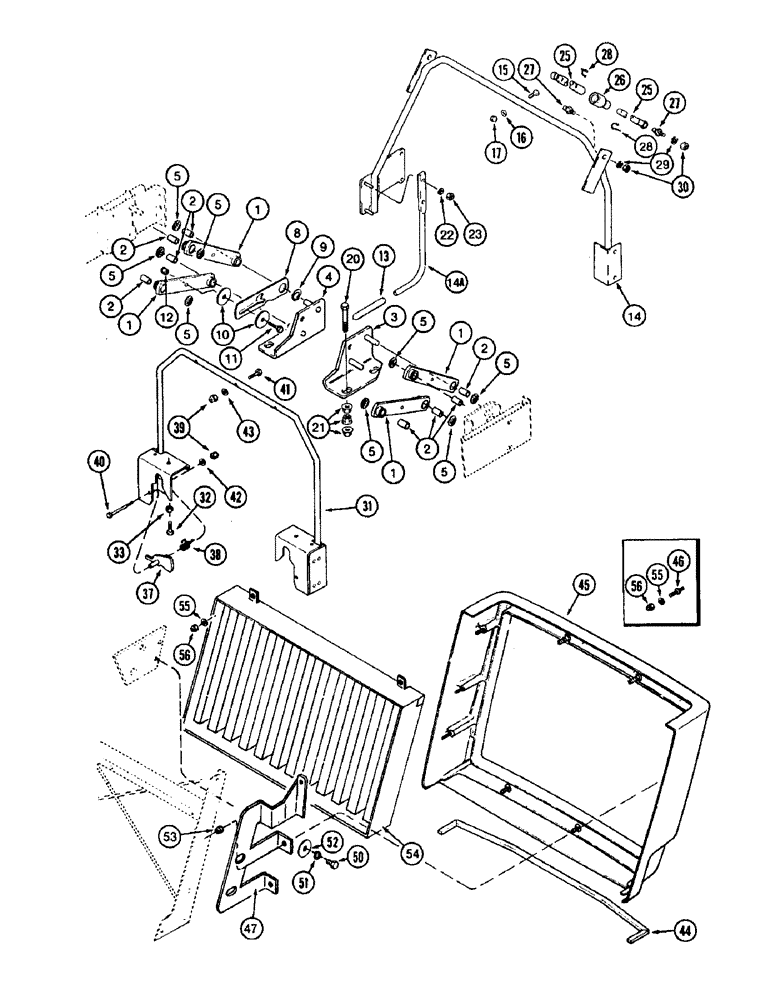

Запчасти Case IH 8920 (9-026) - HOOD SUPPORTS, HINGE AND LATCH, AND LOWER GRILLE (09) - CHASSIS/ATTACHMENTS

1

1968100C3

DRAG LINK

ASSEMBLY - hood tilt, without snap ring groove, Includes: Ref. 2

4шт.

1

275185A1

DRAG LINK

ASSEMBLY - hood tilt, with snap ring groove, Includes: Ref. 2

4шт.

2

A59809

BUSHING,12.8mm ID x 15.93mm OD x 25.4mm L

hood tilt link

4шт.

3

229428A1

SUPPORT

BRACKET - hinge support, right-hand

1шт.

4

229429A1

SUPPORT

BRACKET - hinge support, left-hand

1шт.

5

131-425

PUSH-ON NUT,Push, 1/2"

2шт.

8

251154A1

LEVER

hood lock

1шт.

9

100-11100

SNAP RING,#100, Ext

Hood lock lever

1шт.

10

495-81147

WASHER,0.41" ID x 2" OD x 0.11" Thk

2шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

12

131-206

NUT,3/8"-16

Heavy hex, self-locking

1шт.

13

1348231C1

HANDLE

GRIP - hood handle

1шт.

14

181030A1

SUPPORT

BRACE - hood, cylinder

1шт.

14a

183009A1

HANDLE

hood lift

1шт.

15

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.

16

495-81286

WASHER,.281" x 1 1/8" x .060"

3шт.

17

231-1444

NUT,1/4"-20, GB

3шт.

20

614-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 8.8, Full Thd

4шт.

21

829-2312

FLANGE NUT,M12 x 1.75, Flg, Cl 10

12шт.

22

892-11008

LOCK WASHER,8mm ID

2шт.

23

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

25

1968168C3

GAS STRUT

CYLINDER ASSEMBLY - hood tilt, Includes: Ref. 26

2шт.

26

1968120C1

SEAL

gas cylinder, no longer a serviced part, order P/N 1968120C3 assembly

1шт.

27

142597A1

STUD

ball

4шт.

28

3233348R1

CLIP

retaining, ball stud

4шт.

29

892-11010

LOCK WASHER,M10

4шт.

29a

495-81132

WASHER,0.41" ID x 0.88" OD x 0.18" Thk

Not shown

2шт.

30

825-1410

NUT,M10, Cl 8

4шт.

31

1289137C1

BRACE

hood support, rear

1шт.

32

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

33

425-105

NUT,5/16"-18, G5

2шт.

37

A147728

TRIGGER

LATCH - hood lock

2шт.

38

1978450C2

SPRING

hood lock

2шт.

39

231-1444

NUT,1/4"-20, GB

5шт.

40

413-452

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

2шт.

41

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.

42

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

2шт.

43

495-81286

WASHER,.281" x 1 1/8" x .060"

3шт.

44

1348428C2

SEAL

foam, adhesive back, 1042 mm (41 inch) long, lower housing, cut from P/N1348430C1 bulk seal, see below

1шт.

45

235944A4

HOUSING

grille, lower

1шт.

46

1974428C1

STUD

mounting

1шт.

47

231813A2

ANGLE

support, grille, right-hand

1шт.

48

231814A2

ANGLE

support, grille, left-hand, not shown

1шт.

50

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

4шт.

51

892-11010

LOCK WASHER,M10

4шт.

52

495-81143

WASHER,13/32" x 1 1/2" x .120"

8шт.

53

825-1410

NUT,M10, Cl 8

4шт.

54

241951A4

GRILLE ASSY

SCREEN - grille, lower

1шт.

55

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

12шт.

56

231-1444

NUT,1/4"-20, GB

12шт.

1348430C1

SEAL

foam, adhesive back, 6.4 (1/4) x 12.7 (1/2) x 15240 mm (600 inch) long

1шт.
