Запчасти Case IH 8920 (2-012) - AIR INDUCTION SYSTEM, WITHOUT DEAERATION SYSTEM (02) - ENGINE

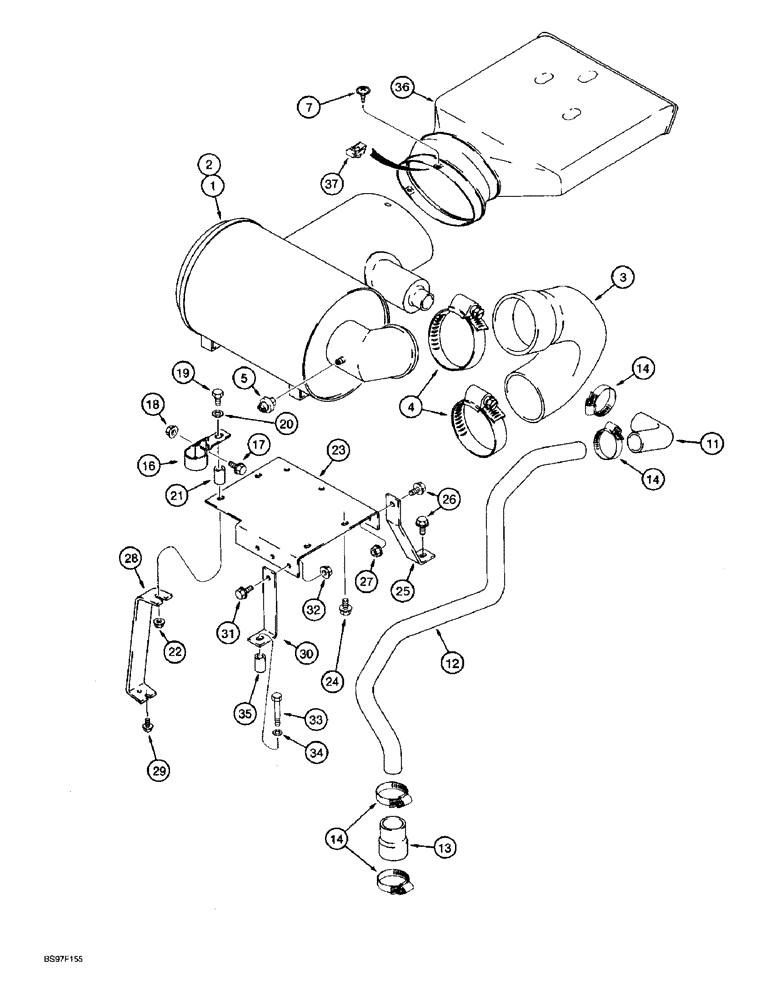

Схема запчастей Case IH 8920 - (2-012) - AIR INDUCTION SYSTEM, WITHOUT DEAERATION SYSTEM (02) - ENGINE
14
30
34
35
37
4
27
13
14
24
17
36
14
1
23
26
16
25
2
18
28
32
5
22
3
29
20
21
33
7
19
12
11
31

№

Артикул

Название

Примечание

Количество

1

113077A1

AIR CLEANER

Assembly, w/ Precleaner, Includes: Ref. 2, See Figure 2-014

1шт.

2

NSS

NOT SOLD SEPARAT

PRECLEANER - engine, included with air cleaner assembly

1шт.

3

1289073C3

LARGE HOSE

HOSE, air, Serial Range: cleaner-turbocharger

1шт.

4

214-1476

HOSE CLAMP,#76, 4.31" - 5.25", Type F Worm

CLAMP, HOSE, , Adj. #76, 4.31/5.25 Type F Worm, W/liner

2шт.

5

P6137737

INDICATOR

SWITCH - restriction, air cleaner

1шт.

7

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

SCREW, SELF TAPPING, , Precleaner to air duct Cross Truss Wash Hd, #10 x 5/8"

3шт.

11

1998851C1

HOSE

aspirator, 90 degree

1шт.

12

121746A1

TUBE

aspirator

1шт.

13

1998858C1

HOSE

aspirator

1шт.

14

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

4шт.

16

1334309C2

COLLAR CLAMP

CLAMP aspirator tube, mounts to turbo shield

1шт.

17

905-10025

BOLT,Hex Flg, M10 x 25mm

hex serrated flange, 10 - 1.5 x 25 mm

1шт.

18

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

1шт.

19

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

21

A176570

SPACER

clamp

1шт.

22

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

1шт.

23

1348516C3

SUPPORT

BRACKET plate, air cleaner

1шт.

24

905-10020

BOLT,Hex Flg, M10 x 20mm

3шт.

25

1348518C1

SUPPORT

BRACKET air cleaner support, mounts to cylinder head

1шт.

26

905-10025

BOLT,Hex Flg, M10 x 25mm

hex serrated flange, 10 - 1.5 x 25 mm

2шт.

27

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

1шт.

28

1340702C1

SUPPORT

air cleaner

1шт.

29

905-8012

BOLT,Hex Flg, M8 x 12mm

hex serrated flange, 8 - 1.25 x 12 mm

1шт.

30

1348517C1

SUPPORT

BRACKET air cleaner mounting, mounts to cylinder head

1шт.

31

905-10025

BOLT,Hex Flg, M10 x 25mm

hex serrated flange, 10 - 1.5 x 25 mm

1шт.

32

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

1шт.

33

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

34

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

35

A176570

SPACER

clamp

1шт.

36

142742A1

DUCT

air intake, Includes: Ref. 37

1шт.

37

96900C1

SPRING NUT,U, #10-16, Panel type

3шт.

Выбрано товаров: 32
