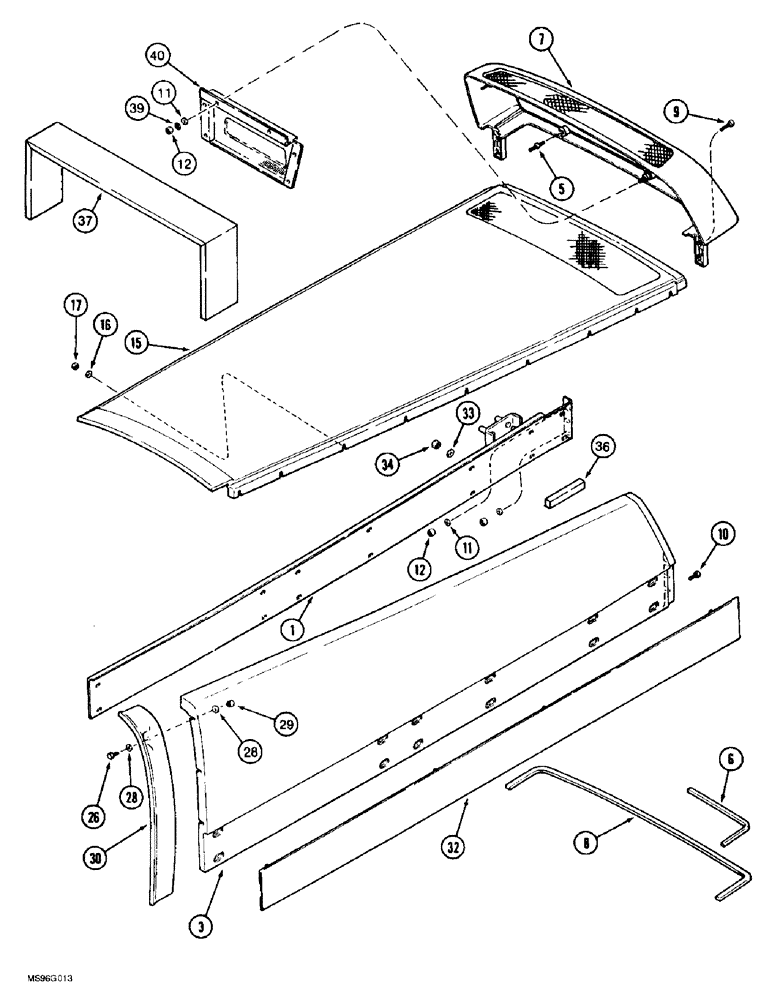

Запчасти Case IH 8920 (9-022) - HOOD, UPPER SIDE PANELS, AND UPPER GRILLE (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
229424A2
SILL
FRAME - hood side, right-hand
1шт.
1
229425A2
SILL
FRAME - hood side, left-hand, not shown
1шт.
3
230114A1
PANEL ASSY.
hood, upper, right-hand
1шт.
3
230115A1
PANEL ASSY.
hood, upper, left-hand, not shown
1шт.
5
1968127C1
STUD
1/4 inch NC
1шт.
6
1334317C2
FOAM INSULATION,6.4mm W x 343mm L x 6.4mm Thk
foam, adhesive back, 343 mm (13-1/2 inch) long, cut from P/N 1348430C1 bulk seal
2шт.
7
231857A6
HOUSING
grille, upper
1шт.
8
252763A1
SEAL
SEAL - foam, adhesive back, 1040 mm (41 inch) long, upper grille, cut from P/N 252768A1 bulk seal, see below
1шт.
9
413-420
BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5
2шт.
10
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
2шт.
11
495-21031
WASHER,1/4"
flat, 5/16 x 3/4 x 1/16 inch
20шт.
12
231-1444
NUT,1/4"-20, GB
20шт.
14
A147030
SPACER
SPACER - grille screen
2шт.
15
181461A1
PANEL ASSY.
HOOD - top center, screen
1шт.
16
495-21031
WASHER,1/4"
flat, 5/16 x 3/4 x 1/16 inch
18шт.
17
231-1444
NUT,1/4"-20, GB
18шт.
26
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
6шт.
28
495-21031
WASHER,1/4"
flat, 5/16 x 3/4 x 1/16 inch
12шт.
29
231-1444
NUT,1/4"-20, GB
6шт.
30
1289322C1
HOUSING
COVER - hood, to cab transition, right-hand
1шт.
30
1289321C1
HOUSING
COVER - hood, to cab transition, left-hand, not shown
1шт.
32
229466A3
PANEL
decal, left-hand, not shown
1шт.
32
229465A3
PANEL
decal, right-hand
1шт.
33
495-21038
WASHER,5/16"
(flat, 3/8 x 7/8 x 3/32")
16шт.
34
131-205
LOCK NUT,5/16"-18
heavy hex, self-locking, 5/16 inch NC
16шт.
36
137886A1
SEALING STRIP
foam, adhesive back, 19 (3/4) x 19 (3/4) x 80 mm (3-5/32 inch) long, hood to radiator corner
2шт.
37
141857A1
SEALING STRIP
foam, adhesive back, 120 (4-3/4) x 19 (3/4) x 1168 mm (46 inch) long, Serial Range: hood-radiator
1шт.
39
493-11026
LOCK WASHER,Ext-Int Tooth, 1/4"
10шт.
40
249781A1
GRILLE
SCREEN - front, Magnum, Replaces: P/N 239356A1 screen
1шт.
Выбрано товаров: 29
