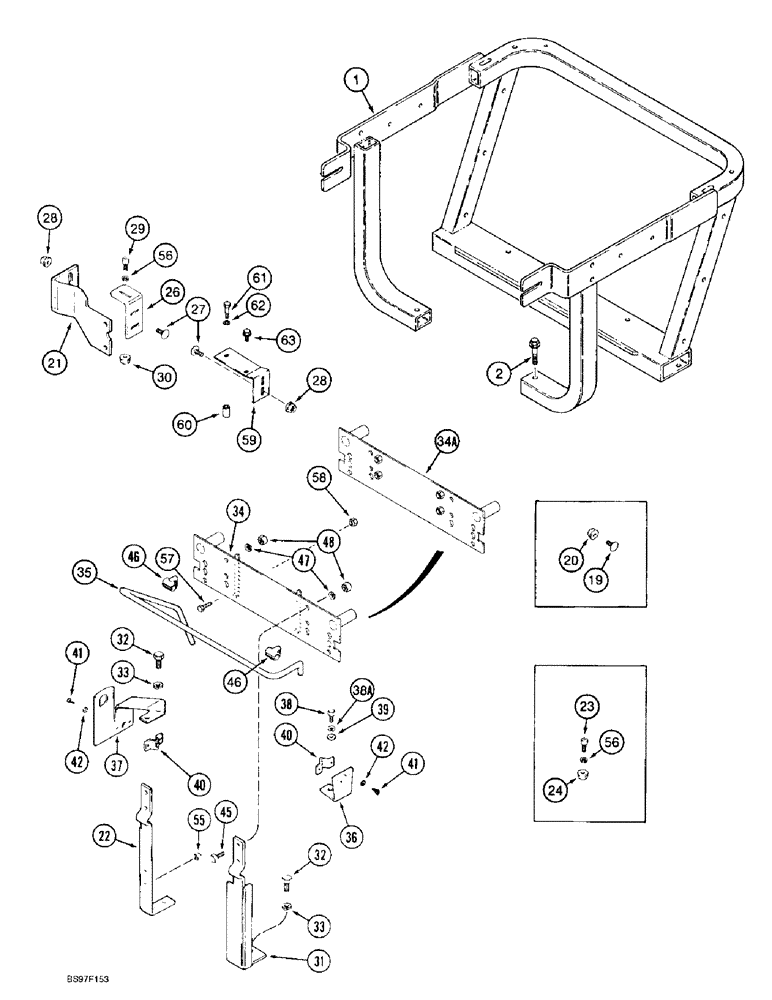

Запчасти Case IH 8920 (9-020) - HOOD SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

140668A2

FRAME

SUPPORT - frame, hood and radiator

1шт.

2

844-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 8.8

BOLT - heavy hex flange, 10 - 1.5 x 65 mm

4шт.

19

811-10025

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8

4шт.

20

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

4шт.

21

188762A1

SUPPORT ASSY.

side panel, left-hand, rear

1шт.

22

1289062C2

SUPPORT ASSY.

hood release, left

1шт.

23

864-10020

HEX SOC SCREW,M10 x 20mm, Cl 8.8

2шт.

24

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

2шт.

26

1334564C2

SUPPORT

BRACKET - side panel, left-hand, rear support, if used

1шт.

27

811-10025

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8

4шт.

28

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

4шт.

29

864-10020

HEX SOC SCREW,M10 x 20mm, Cl 8.8

2шт.

30

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

2шт.

31

1289064C1

SUPPORT ASSY.

hood release, right

1шт.

32

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

Full threads

4шт.

33

892-11012

LOCK WASHER,M12

4шт.

34

142187A1

SUPPORT

hood release, with clips, if used

1шт.

34a

257546A1

SUPPORT

hood release, with weld nuts, if used

1шт.

35

1340604C1

HANDLE

hood release

1шт.

36

1960805C4

BRACKET

screen latch, inner, right

1шт.

37

1340590C1

SUPPORT

BRACKET - screen latch, inner, left

1шт.

38

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

38a

892-11008

LOCK WASHER,8mm ID

1шт.

39

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

40

1968039C3

FASTENER

RECEIVER - screen, latch stud

2шт.

41

260-5448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

Phillips

4шт.

42

495-21019

WASHER,#8

4шт.

45

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

46

A169954

BUSHING

hood release

2шт.

47

892-11010

LOCK WASHER,M10

2шт.

48

825-1410

NUT,M10, Cl 8

2шт.

55

825-2308

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

56

892-11010

LOCK WASHER,M10

2шт.

57

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

58

425-105

NUT,5/16"-18, G5

2шт.

59

116292A2

SUPPORT

BRACKET - right-hand side panel, rear support

1шт.

60

A176570

SPACER

bracket

1шт.

61

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

Replaces 905-10060 bolt

1шт.

62

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

If used

1шт.

63

905-10030

BOLT,Hex Flg, M10 x 35mm

Side panel bracket, Replaces 905-10020 bolt

1шт.

64

1334474C1

BRACKET

side panel support, front

2шт.
