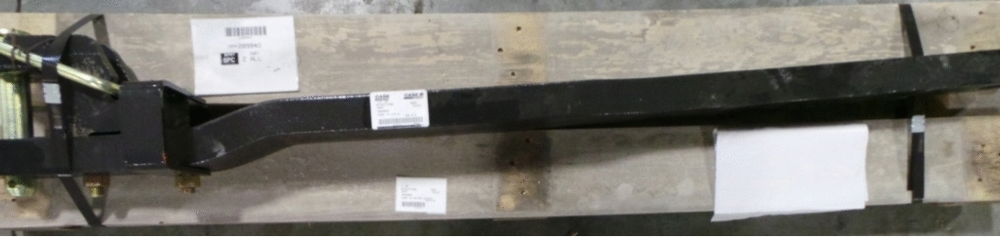

Запчасти Case IH 8920 (9-014[01]) - DRAWBAR ASSY HEAVY DUTY WIDE (09) - CHASSIS/ATTACHMENTS

1

87427768

DRAWBAR

Incl 2 - 8

1шт.

2

87427489

DRAWBAR

1шт.

3

232615A3

STRAP,228.98mm L x 76.2mm W x 50.8mm Thk, 91.95mm Offset

1шт.

4

86013628

ROD

1шт.

5

232616A3

HITCH PIN,38.1mm OD x 226mm L

1шт.

6

449666A1

SUPPORT ASSY.

1шт.

7

84025013

BOLT,Hex, M20 x 140mm, Cl 10.9

2шт.

8

9847024

NUT,M20, Cl 10

2шт.
