Запчасти Case IH 8920 (9-012) - DRAWBAR, WITHOUT HITCH (09) - CHASSIS/ATTACHMENTS

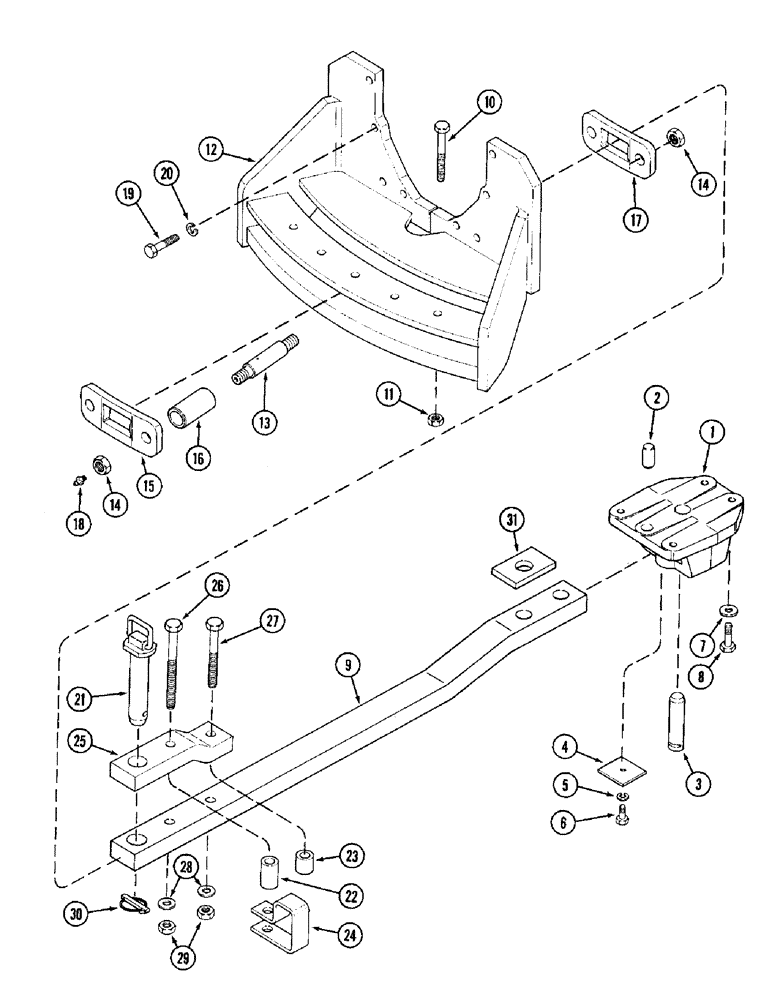

Схема запчастей Case IH 8920 - (9-012) - DRAWBAR, WITHOUT HITCH (09) - CHASSIS/ATTACHMENTS
11
8
28
3
21
24
16
7
13
10
14
12
22
14
9
4
20
5
25
18
15
6
26
2
1
29
31
23
17
19
30
27

Артикул

Название

Примечание

Количество

1

142619C3

SUPPORT ASSY.

pivot, drawbar, Includes: Ref. 2

1шт.

2

837-25050

DOWEL,M25 x 50, HDN

1шт.

3

1982103C1

PIN,34.87mm OD x 140mm L

pivot, drawbar

1шт.

4

67828C1

RETAINER

pin, drawbar

1шт.

5

892-11012

LOCK WASHER,M12

1шт.

6

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd

1шт.

7

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

flat, 17.5 x 34 x 5 mm, hardened

4шт.

8

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

4шт.

9

1348127C1

PLATE

DRAWBAR - swinging

1шт.

10

827-16130

BOLT,Hex, M16 x 2 x 130mm, Cl 10.9

2шт.

11

832-10416

NUT,M16 x 2, Cl 8

2шт.

12

1982156C3

SUPPORT

BRACKET - rear support

1шт.

13

1998066C1

PIN

drawbar roller

2шт.

14

23443R1

LOCK NUT,1"-8, GC

hex, 1 inch NC

4шт.

15

1982141C1

LARGE PLATE

PLATE, LARGE rear support

1шт.

16

A145831

BUSHING

ROLLER - drawbar

2шт.

17

1982142C1

LARGE PLATE

PLATE, LARGE front support

1шт.

18

219-14

LUBE NIPPLE,1/4" NPTF

Straight

2шт.

19

828-16065

BOLT,Hex, M16 x 2 x 65mm, Cl 10.9

8шт.

20

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

flat, 17.5 x 34 x 5 mm, hardened

8шт.

21

1286985C4

HITCH PIN,40mm OD x 200mm L

drawbar

1шт.

22

1286924C1

SPACER

strap

1шт.

23

1331939C1

SPACER

strap

1шт.

24

1331943C1

SUPPORT ASSY.

chain

1шт.

25

1348030C1

DRAWBAR,306mm L x 76.2mm W x 38.1mm Thk, 31.9mm Offset

STRAP - hammerstrap

1шт.

26

827-20200

BOLT,Hex, M20 x 2.5 x 200mm, Cl 10.9

1шт.

27

827-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

1шт.

28

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, 22 x 37 x 4 mm, hardened

2шт.

29

829-1420

NUT,M20, Cl 10

2шт.

30

1348043C1

LINCH PIN

Klik, lock

1шт.

31

224619C2

SPACER

drawbar pivot

1шт.

Выбрано товаров: 31
