Запчасти Case IH 8920 (9-008) - QUICK HITCH COUPLER, CATEGORY III, IF EQUIPPED (09) - CHASSIS/ATTACHMENTS

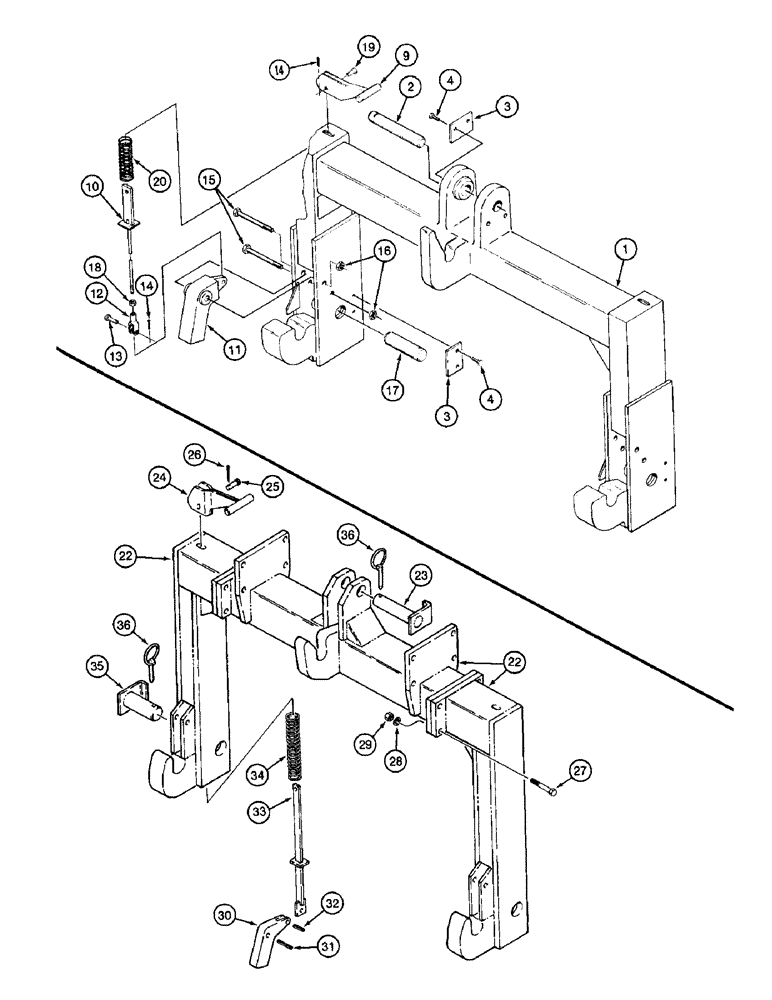

Схема запчастей Case IH 8920 - (9-008) - QUICK HITCH COUPLER, CATEGORY III, IF EQUIPPED (09) - CHASSIS/ATTACHMENTS
14
22
26
1
34
31
32
15
25
29
22
18
36
10
27
13
3
17
30
33
2
24
36
9
4
19
35
12
11
4
3
20
14
16
28
23

Артикул

Название

Примечание

Количество

1348143C3

ATTACHMENT

COUPLER - hitch attachment, order from Machinery Price List, Includes: Ref. 1 thru 21, if used

1шт.

1

70-6430T1

ATTACHMENT

HITCH - quick attachment, coupler

1шт.

2

70-6452T1

PIN

mounting, 4-15/16 inch long, center link

1шт.

3

70-3082T2

LARGE PLATE

PLATE, LARGE BLOCK - pin retaining

3шт.

4

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

6шт.

9

70-4320T1

HANDLE

hitch release

2шт.

10

70-4324T1

THREADED ROD

LINK - hitch release

2шт.

11

70-6310T2

TRIGGER

LATCH - hitch release

2шт.

12

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

2шт.

13

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

2шт.

14

432-616

COTTER PIN,3/32" x 1"

4шт.

15

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

4шт.

16

231-42110

LOCK NUT,Hex, 5/8"-11, GB

4шт.

17

70-4293T1

PIN,36.5mm OD x 125.73mm L

lower hitch

2шт.

18

425-156

JAM NUT,Jam, 3/8"-24, G5

2шт.

19

19-5423

CLEVIS PIN

3/8 x 7/8"

2шт.

20

70-4340T1

COMPRESSION SPRING

2шт.

21

321-3339

DECAL

Warning, be certain both latches are fully engaged across the implement lift pins, not shown, see Fig. 9-112, Ref. 3

1шт.

229856A1

FAST HITCH

COUPLER - attachment, Includes: Ref. 22 thru 36, if used

1шт.

22

NSS

NOT SOLD SEPARAT

FRAME - coupler

1шт.

23

229035A1

PIN

upper link

1шт.

24

64715C1

HANDLE

hitch release

2шт.

25

427-5112

CLEVIS PIN,5/16" x 1 1/8"

2шт.

26

432-612

COTTER PIN,3/32" x 3/4"

2шт.

27

326-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

8шт.

28

392-11050

LOCK WASHER,1/2"

8шт.

29

329-108

NUT,1/2"-13, G8

8шт.

30

229992A1

LUG

LATCH - hitch release

2шт.

31

229990A1

COILED PIN

roll, 1/2 x 2 inch

2шт.

32

229993A1

COILED PIN

roll, 5/16 x 1 inch

2шт.

33

229994A1

THREADED ROD

LINK - hitch release

2шт.

34

64717C1

SPRING

compression

2шт.

35

229034A1

PIN

lower link

2шт.

36

D33805

PIN

locking

3шт.

37

321-3339

DECAL

Warning, be certain both latches are fully engaged across the implement lift pins, not shown, see Fig. 9-112, Ref. 3

2шт.

Выбрано товаров: 35
