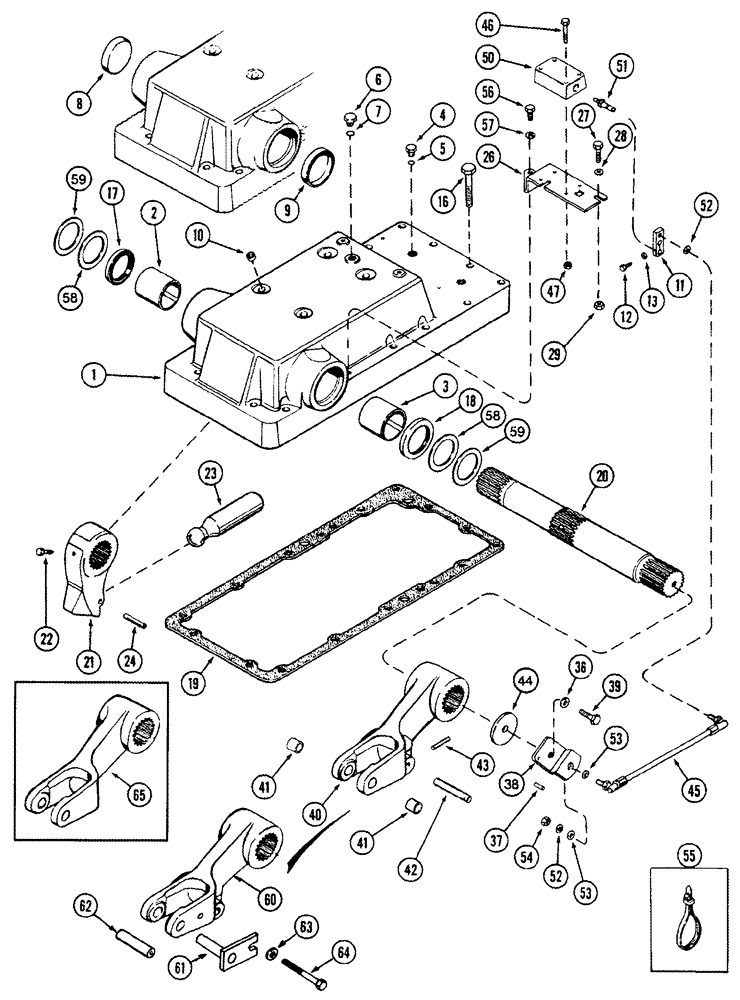

Запчасти Case IH 8920 (9-002) - HITCH ROCKSHAFT (09) - CHASSIS/ATTACHMENTS

1349439C4

COVER

ASSEMBLY - rockshaft, Includes: Ref. 1 thru 3

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - rockshaft

1шт.

2

1331849C1

BUSHING,70.71mm ID x 75.43mm OD x 76.2mm L

rockshaft, left-hand

1шт.

3

1331848C1

BUSHING,76.81mm ID x 81.55mm OD x 76.2mm L

rockshaft, right-hand

1шт.

4

76349

PLUG,9/16" - 18 ORB

(Without hitch)

2шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

86512512

PLUG,7/8" - 14 ORB

(Without hitch)

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

380174R1

PLUG,Cup, 3.510"

(Without hitch)

1шт.

9

380173R1

PLUG,Cup, 3.762"

1шт.

10

380263R1

PLUG

cup, without hitch

4шт.

11

1342165C1

LEVER

link, potentiometer

1шт.

12

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

13

492-11025

LOCK WASHER,1/4"

1шт.

16

614-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8, Full Thd

16шт.

17

1347918C1

OIL SEAL,70.64mm ID x 89.1mm OD x 12.7mm Thk

oil, rockshaft, left-hand

1шт.

18

1347919C1

OIL SEAL,76.73mm ID x 95.48mm OD x 12.7mm Thk

oil, rockshaft, right-hand

1шт.

19

380264R3

GASKET,0.53mm Thk

rear frame cover

1шт.

20

1973956C1

ROCKSHAFT

hitch control

1шт.

21

84923C2

DIPPER

BELLCRANK - rockshaft

1шт.

22

382811R1

SET SCREW,Hex, 3/8" - 16, Lok-Thd x 1 1/2", Cone Pt

special, rockshaft bellcrank

1шт.

23

84922C1

ROD,50.8mm OD x 248.49mm L

piston connecting

1шт.

24

38-12840

LOCK PIN,7/16" x 2 1/2", Slotted

If used

1шт.

24

38-12848

LOCK PIN,7/16" x 3", Slotted

If used

1шт.

26

1340665C1

SUPPORT

BRACKET - potentiometer

1шт.

27

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

28

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

29

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

36

492-21062

LOCK WASHER,5/8"

RH

1шт.

37

38-11616

LOCK PIN,1/4" x 1", Slotted

1шт.

38

1340669C1

LEVER

sensor, rockshaft

1шт.

39

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

Rockshaft arm, RH

1шт.

39

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

Rockshaft arm, LH

1шт.

40

1286931C3

LOWER LINK

ARM ASSEMBLY - rockshaft, left-hand, Includes: Ref. 41, if used, Serial Range: -JJA0094169

1шт.

40

1286930C5

LOWER LINK

ARM ASSEMBLY - rockshaft, right-hand, shown, Includes: Ref. 41, if used, Serial Range: -JJA0094169

1шт.

41

1252114C1

BUSHING,19.25mm ID x 25.46mm OD x 23.5mm L

pivot

2шт.

42

145474C1

PIN,19.05mm OD x 112mm L

cylinder mounting

2шт.

43

838-3655

PIN

roll, 6 x 55 mm

2шт.

44

388574R1

WASHER,16.51mm ID x 82.55mm OD x 4.78mm Thk

rockshaft arm retaining

2шт.

45

1342171C2

ROD ASSY.

link, potentiometer

1шт.

46

814-6055

BOLT,Hex, M6 x 1 x 55mm, Cl 8.8

4шт.

47

825-5146

SERRATED NUT,M6, Flg Ser

4шт.

50

1340666C1

HOUSING

potentiometer

1шт.

51

REF

INSTRUCTION

SHAFT - potentiometer, see Figure 4-020

1шт.

52

493-81008

LOCK WASHER,Int Tooth, 5/16"

2шт.

53

495-11034

WASHER,5/16", SAE

(Flat, 11/32 x 11/16 x 1/16")

2шт.

54

425-115

NUT,5/16"-24, G5

1шт.

55

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

56

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

57

492-11038

LOCK WASHER,3/8"

1шт.

58

229937A1

SHIM

2.0 mm thick, rockshaft arm to cover, if used

1шт.

59

229936A1

SHIM

1.0 mm thick, rockshaft arm to cover, if used

1шт.

59a

302737A1

SHIM

1.0 mm thick, rockshaft right-hand arm to cover, if used

1шт.

60

110451A1

LOWER LINK

ARM ASSEMBLY - rockshaft, left-hand, serial number JJA0094169 and after, if used

1шт.

60

110452A1

LOWER LINK

ARM ASSEMBLY - rockshaft, right-hand, serial number JJA0094169 and after, if used

1шт.

61

110447A2

HITCH PIN,25.15mm OD x 130mm L

rockshaft with flag

2шт.

62

D95748

SPACER,10.34mm ID x 15.88mm OD x 7.11mm L

2шт.

63

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

64

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

65

1286923C2

ARM

ASSEMBLY - rockshaft, left-hand, includes item 41, if used

1шт.
