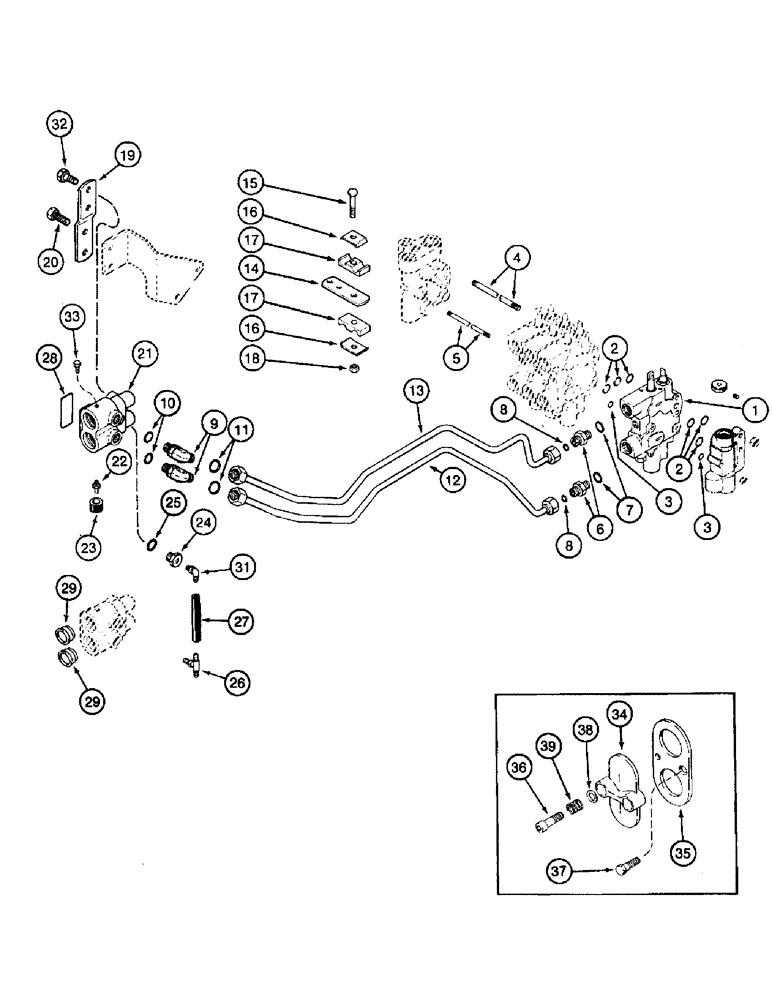

VALVE ASSEMBLY - remote hydraulic, see Figure 8-052 and 8-056

1шт.

2

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

6шт.

3

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

2шт.

4

1986938C1

STUD

12 x 312 mm

2шт.

5

1334613C2

STUD

10 - 1.5 x 312 mm

1шт.

6

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes Ref. 7, 8

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss end

1шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end

1шт.

9

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

90 degree, 1-14 face seal x 7/8-14 inch adj O-ring boss, Includes: Ref. 10 and 11

2шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss end

1шт.

11

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end

1шт.

12

102221A1

TUBE,0.625" OD, 929, 258 mm Length

TUBE - raise, fourth valve

1шт.

13

102222A1

TUBE,0.625" OD, 925, 205 mm Length

TUBE - drop, fourth valve

1шт.

14

1334203C1

SUPPORT ASSY.

tube

1шт.

15

815-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

1шт.

16

486004R1

CLAMP

tube

2шт.

17

224968C2

STRIP

CLAMP - isomount strip

2шт.

18

832-41308

NUT,M8 x 1.25, Cl 10

hex, self-locking, 8 mm - 1.25, class 10.9

1шт.

19

120012C1

SUPPORT

coupler

1шт.

20

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

Full threads, At third circuit coupler

2шт.

21

103866A2

COUPLING

ASSEMBLY - quick disconnect see Figure 8-060

1шт.

22

221-1101

FITTING,1/8" PT x 1/4"

NIPPLE - straight, 1/8 PT x 3/4 inch

1шт.

23

1272764C1

SEAL

drain

1шт.

24

1334586C1

PLUG

ADAPTER - coupler drain, special, Includes: Ref. 25

1шт.

25

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.

25

1289480C1

TEE

barbed, at third circuit coupler

1шт.

27

1289484C1

HOSE

115 mm (4-9/16 inch) long, cut from 427683C1 bulk hose, drain, Serial Range: elbow-tee

1шт.

28

1334584C3

DECAL

4 ISO, fourth coupler, see Figure 9-108

1шт.

29

103871A1

CAP

PLUG - dust, coupler

2шт.

31

1289481C1

ELBOW,1/8" NPT x 1/4" Hose Barb

90 degree, special

1шт.

32

628-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

2шт.

33

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

34

104301A1

DOOR COVER

coupler

1-2шт.

35

104302A1

MOUNTING PLATE

retaining

1-2шт.

36

104303A1

BOLT

BOLT - shoulder

1-2шт.

37

461-4258

HEX SOC SCREW,Flat Hd, 1/4"-20 x 1/2"

1-2шт.

38

110947A1

WASHER

flat, special

1шт.

39

110945A1

SPRING

coupler door

1-2шт.

427683C1

HOSE,6.35mm ID x 7620mm L, SAE 30R7

bulk, 6 (1/4) x 13 (1/2) x 15240 mm (600 inch) long, sold by the foot

1шт.
