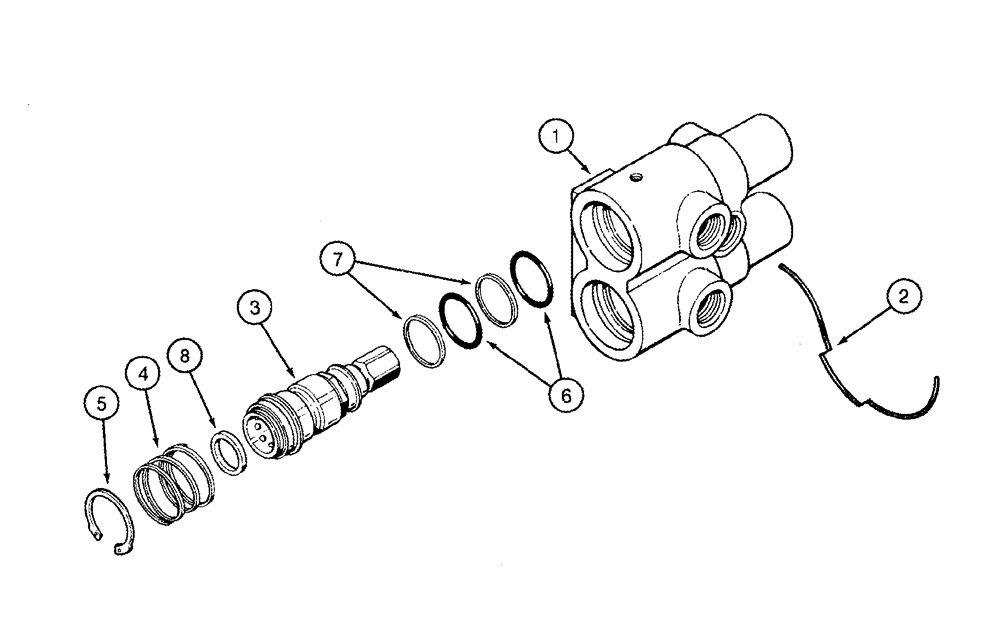

Запчасти Case IH 8920 (8-060) - QUICK DISCONNECT COUPLERS, FIRST, SECOND, THIRD, AND FOURTH REMOTES (08) - HYDRAULICS

103866A2

COUPLING

ASSEMBLY - quick disconnect, Includes: Ref. 1 Thru 7

4шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - coupler

1шт.

2

93329C2

SPRING

retainer

1шт.

3

93328C3

COUPLING, QUICK, FEM

coupler

2шт.

4

93330C1

VALVE SPRING

tension

2шт.

5

100-28162

SNAP RING,1.625", Int, #162

2шт.

93331C1

SEAL KIT

Inc. 6 - 8, seal, coupler, kit no longer available, order components

1шт.

6

238-5027

O-RING,0.07" Thk x 1.301" ID, -27, Cl 5, 75 Duro

4шт.

7

93332C1

SEAL ASSY.

oil, slipper

4шт.

8

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

2шт.
