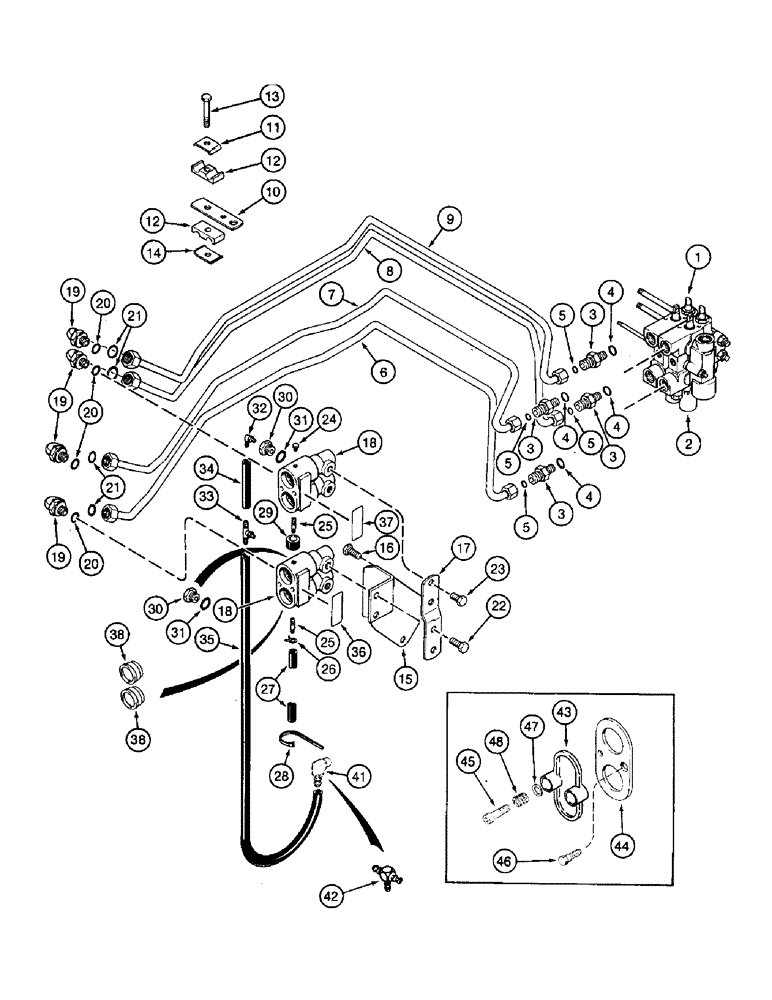

Запчасти Case IH 8920 (8-040) - FIRST AND SECOND CIRCUIT REMOTE HYDRAULICS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - remote hydraulic, first circuit, see Figures 8-046 and 8-050

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - remote hydraulic, second circuit, see Figures 8-052 and 8-056

1шт.

3

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes Ref. 4, 5

4шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss end

1шт.

5

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end

1шт.

6

102214A1

HYD TUBE,0.625" OD, 931, 505 mm Length

TUBE - raise, first valve

1шт.

7

102216A1

TUBE,0.625" OD, 932 mm Length

TUBE - drop, first valve

1шт.

8

102217A1

HYD TUBE,0.625" OD, 934 mm Length

TUBE - raise, second valve

1шт.

9

102218A1

TUBE,0.625" OD, 925, 549 mm Length

TUBE - drop, second valve

1шт.

10

1334203C1

SUPPORT ASSY.

tube

1шт.

11

486004R1

CLAMP

tube, upper

1шт.

12

224968C2

STRIP

CLAMP - isomount strip, tube

2шт.

13

815-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

1шт.

14

1348451C1

SUPPORT

CLAMP - tube, lower, includes nut

1шт.

15

102518A1

SUPPORT

BRACKET - coupler, left-hand

1шт.

16

628-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

Bolt, Hex, M16 x 30, 10.9, Full Thd

2шт.

17

120012C1

SUPPORT

coupler

1шт.

18

103866A2

COUPLING

ASSEMBLY - quick disconnect, see Figure 8-060

2шт.

19

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

90 degree, 1-14 face seal x 7/8-14 inch adj O-ring boss, Includes: Ref. 20 and 21

4шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss end

1шт.

21

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end

1шт.

22

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

Full threads

2шт.

23

628-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

2шт.

24

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

25

221-1101

FITTING,1/8" PT x 1/4"

NIPPLE - straight, 1/8 PT x 3/4 inch

2шт.

26

1348264C1

HOSE CLAMP

3/8 inch

1шт.

27

106514A1

HYDRAULIC HOSE

808 mm (30-13/16 inch) long, Coupler drain

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

29

1272764C1

SEAL

drain, coupler

1шт.

30

1334586C1

PLUG

ADAPTER - coupler drain, special, Includes: Ref. 31

2шт.

31

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

2шт.

32

1289481C1

ELBOW,1/8" NPT x 1/4" Hose Barb

90 degree, second coupler

1шт.

33

1289480C1

TEE

barbed, first coupler

1шт.

34

1289484C1

HOSE

115 mm (4-9/16 inch) long, cut from P/N 427683C1 bulk hose, Serial Range: coupler-tee

1шт.

35

1334641C1

HOSE,6.35 mm ID x 330.00 mm

330 mm (13 inch) long, cut from P/N 427683C1 bulk hose, coupler tee to tee or elbow at transmission

1шт.

36

1334581C2

DECAL

1 ISO, first coupler, see Figure 9-108

1шт.

37

1334582C2

DECAL

2 ISO, second coupler, see Figure 9-108

1шт.

38

103871A1

CAP

PLUG - dust, coupler

4шт.

41

401967R1

ELBOW

90 degree, 1/8 PT x 1/4 inch barb end, without hitch

1шт.

42

1289479C1

TEE

barbed, with hitch

1шт.

43

104301A1

DOOR COVER

coupler

2шт.

44

104302A1

MOUNTING PLATE

retaining

2шт.

45

104303A1

BOLT

BOLT - shoulder

2шт.

46

461-4258

HEX SOC SCREW,Flat Hd, 1/4"-20 x 1/2"

2шт.

47

110947A1

WASHER

flat, special

2шт.

48

110945A1

SPRING

coupler door

2шт.

427683C1

HOSE,6.35mm ID x 7620mm L, SAE 30R7

bulk, 6 (1/4) x 13 (1/2) x 15240 mm (600 inch) long, sold by the foot

1шт.
