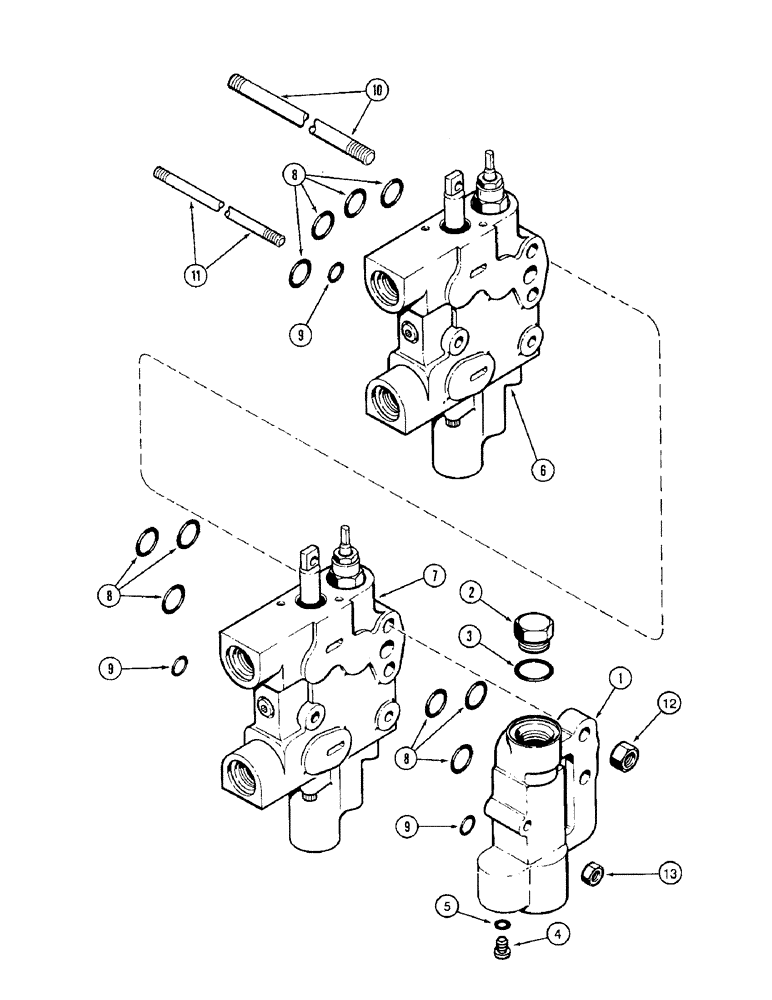

Запчасти Case IH 8920 (8-038) - TWO CIRCUIT REMOTE VALVE AND COVER (08) - HYDRAULICS

1

1978363C2

COVER

end

1шт.

2

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref. 3, if used

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 5

1шт.

6

REF

INSTRUCTION

VALVE ASSEMBLY - remote hydraulic, first circuit, see Figures 8-046 and 8-050

1шт.

7

REF

INSTRUCTION

VALVE ASSEMBLY - remote hydraulic, second circuit, see Figures 8-052 and 8-056

1шт.

8

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

9

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

3шт.

10

1994612C1

STUD

12 x 225 mm

2шт.

11

1334557C2

STUD

10 - 1.5 x 225 mm

1шт.

12

829-1312

NUT,M12 x 1.75, Cl 10

2шт.

13

829-1310

NUT,M10, Cl 10

Hex, Class 10.9

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
