(8-034) - HITCH CONTROL CYLINDER ASSEMBLY

Запчасти Case IH 8920 (8-034) - HITCH CONTROL CYLINDER ASSEMBLY (08) - HYDRAULICS

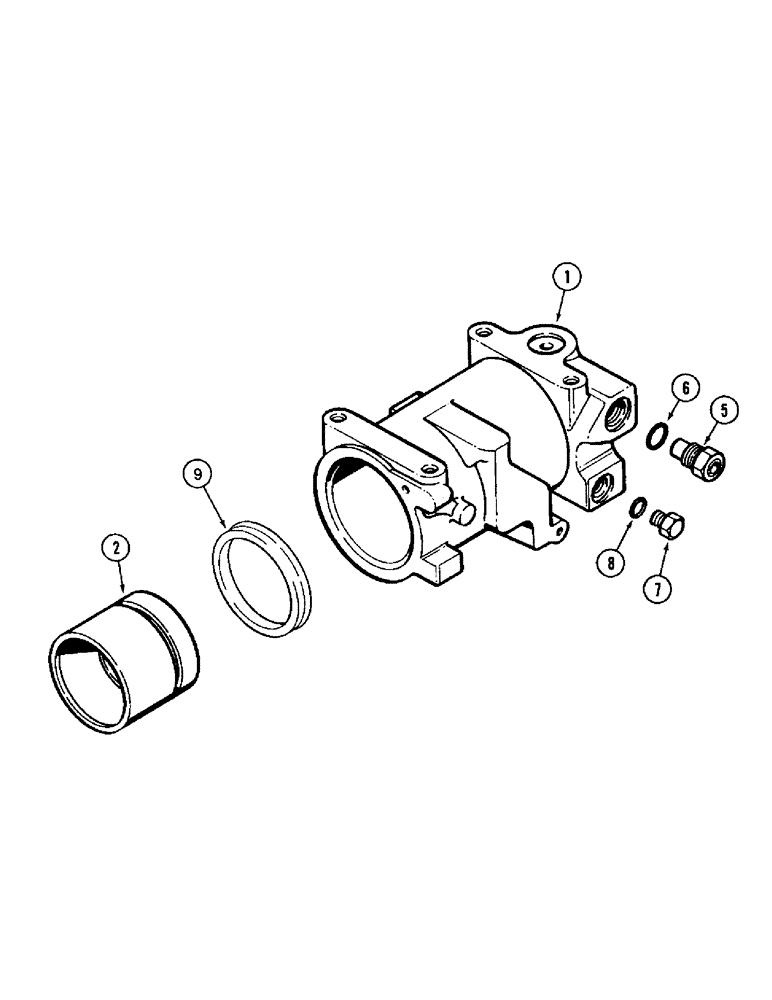

Схема запчастей Case IH 8920 - (8-034) - HITCH CONTROL CYLINDER ASSEMBLY (08) - HYDRAULICS
9
7
1
6
5
8
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

93005C2

CYLINDER ASSY.,120.73mm Bore Dia

hitch control, Includes: Ref. 1 and 9

1шт.

1

1289125C2

HOUSING

cylinder

1шт.

2

397229R1

PISTON

cylinder

1шт.

5

1266861C92

VALVE

relief

1шт.

6

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

7

214389

PLUG,3/4" - 16 ORB

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

230318A1

SEAL

KIT - seal, service, includes seal and an instruction sheet

1шт.
