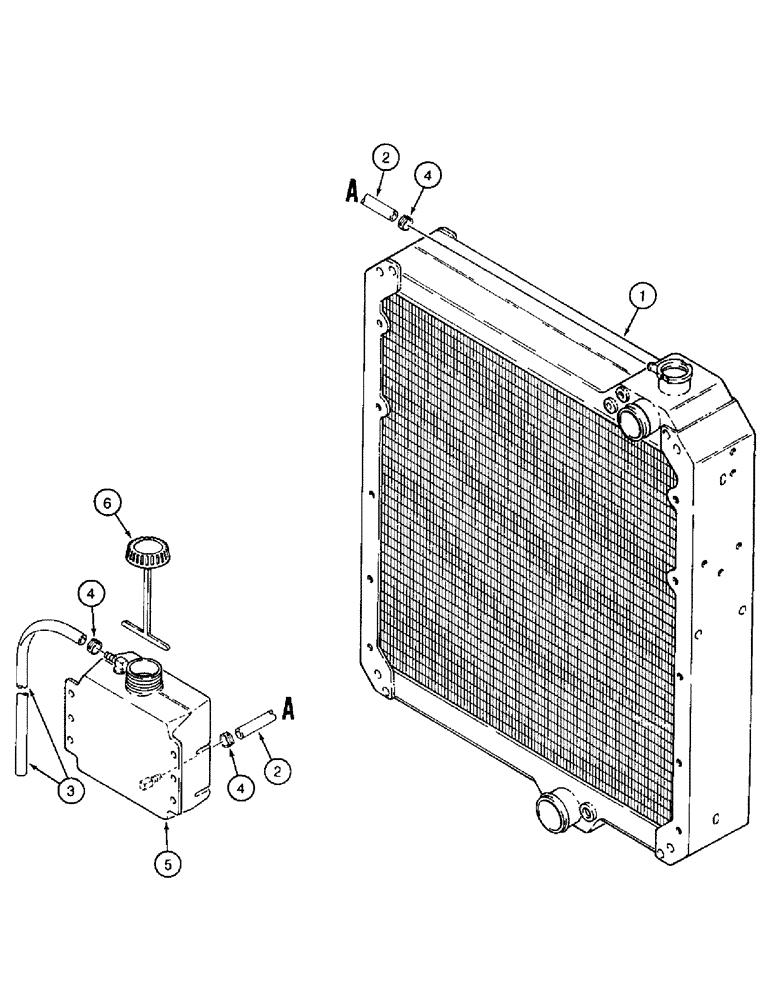

Запчасти Case IH 8920 (2-010) - COOLANT RECOVERY SYSTEM, IF EQUIPPED (02) - ENGINE

1

REF

INSTRUCTION

RADIATOR ASSEMBLY cooling system, see Figure 2-006

1шт.

2

A172261

HOSE,7.92mm ID x 1820mm L, SAE 30R6

- Cut from P/N L126767 bulk hose, Coolant bottle to radiator 7.50 mm ID, 8.30 mm ID x 1820.00 mm, SAE 30R6 per J30

1шт.

3

142713A1

HOSE

1021 mm (40-7/32 inch) long, coolant recovery overflow

1шт.

4

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP spring-type, hose retaining

3шт.

199027A1

RESERVOIR ASSY.

RESERVOIR ASSEMBLY, coolant recovery, mounts at clip on firewall, Includes: Ref. 5, 6

1шт.

5

188891A1

RESERVOIR

coolant container

1шт.

6

1547924C1

CAP

recovery bottle, non-vented

1шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

1шт.
