Запчасти Case IH 8920 (8-028) - REMOTE HITCH CONTROLS, HITCH RAISE AND LOWER (08) - HYDRAULICS

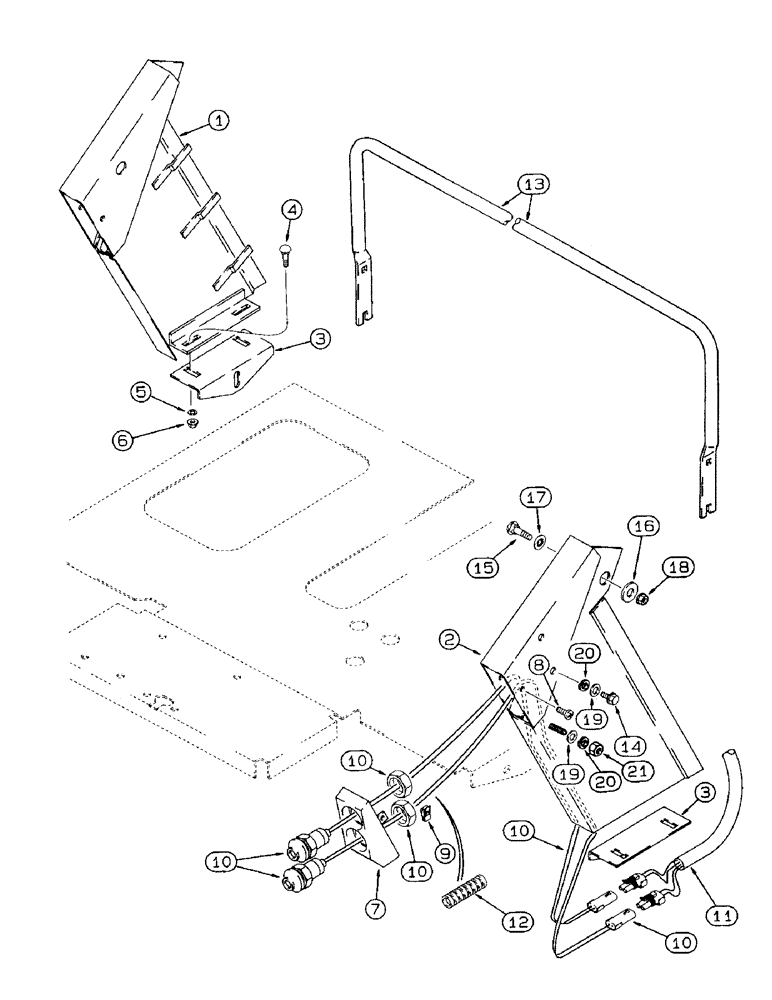

Схема запчастей Case IH 8920 - (8-028) - REMOTE HITCH CONTROLS, HITCH RAISE AND LOWER (08) - HYDRAULICS
18
15
19
21
2
13
7
11
10
12
20
17
10
10
14
4
8
5
19
1
10
3
20
3
10
6
9
16

Артикул

Название

Примечание

Количество

1

251339A2

HOUSING

remote hitch switch, left-hand

1шт.

2

251340A2

HOUSING

remote hitch switch, right-hand

1шт.

3

1977716C1

SUPPORT

angle, shield

2шт.

4

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

5

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

7

125770A2

COVER

remote hitch switch

2шт.

8

1276119C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 5/8"

pan cross slotted, locking, No. 10 - 16 x 5/8 inch

4шт.

9

96900C1

SPRING NUT,U, #10-16, Panel type

4шт.

10

115713A1

SWITCH

remote hitch raise/lower

4шт.

11

1987445C1

HARNESS

remote hitch switch

1шт.

12

1999514C1

LOOM

CONDUIT - remote switch harness

2шт.

13

251205A1

HANDLE

rear assist

1шт.

14

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

15

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

16

495-81140

WASHER,13/32" x 1 1/4" x .060"

2шт.

17

131-434

LOCK NUT,Push, 5/16"

push-on type, 5/16 inch

2шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

19

495-11034

WASHER,5/16", SAE

(Flat, 11/32 x 11/16 x 1/16")

4шт.

20

492-11031

LOCK WASHER,5/16"

4шт.

21

425-105

NUT,5/16"-18, G5

4шт.

Выбрано товаров: 21
