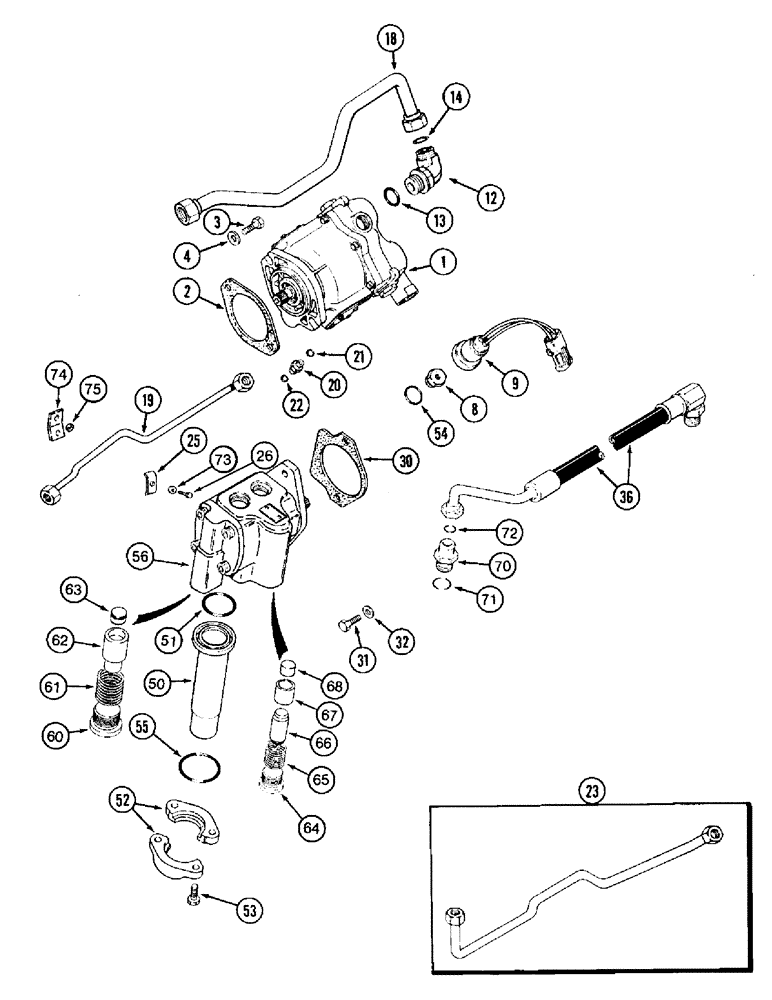

Запчасти Case IH 8920 (8-014) - HYDRAULIC PUMP SYSTEM (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - piston hydraulic, see Figures 8-016 and 8-020

1шт.

2

144169C2

GASKET,0.79mm Thk

pump

1шт.

3

615-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

4

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

flat, 13.5 x 28 x 4 mm, hardened

2шт.

8

1334586C1

PLUG

ADAPTER - coupler drain

1шт.

9

1546463C1

SWITCH, PRESSURE

PRESSURE SWITCH flow compensated (PFC)

1шт.

12

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

90 deg, 1-7/16-12 face x 1-5/16-12 inch adj O-ring, Includes: Ref. 13 and 14

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

18

1342131C1

TUBE

supply, priority valve

1шт.

19

1342146C2

HYD TUBE

TUBE - signal, pump, with hitch

1шт.

20

1957867C1

FILTER SCREEN

ASSEMBLY - pump, compensator, Includes: Ref. 21 and 22

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Boss end

1шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end

1шт.

23

1342147C2

HYD TUBE

TUBE - signal, pump, without hitch

1шт.

25

535307R1

CLAMP

tube

1шт.

26

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

1шт.

30

1349060C1

GASKET,0.79mm Thk

pump, dual gear, prior to transmission serial number AJB0082219

1шт.

30

144169C2

GASKET,0.79mm Thk

pump, dual gear, transmission serial number AJB0082219 and after

1шт.

31

615-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

32

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

flat, 13.5 x 28 x 4 mm, hardened

2шт.

36

1348346C1

HOSE ASSY.,25.4mm ID x 595mm L, SAE 100R1

595 mm (23-7/16 inch) long, Serial Range: pump-filter

1шт.

50

1340541C1

TUBE,194 mm Length

inlet, dual pump

1шт.

51

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

4шт.

52

300525R1

CLAMP

split, flange halves

2шт.

53

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

54

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

55

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

56

227748A3

PUMP, HYDRAULIC

ASSEMBLY - dual gear, Includes: valve assembly and Ref. 60 thru 68

1шт.

56

432244A3R

REMAN-HYD PUMP

Dual Gear

1шт.

56

432244A3C

CORE-HYDRAULIC PUMP

Return Number

1шт.

231061A1

VALVE, PRESSURE RELI

EF ASSEMBLY, Includes: Ref. 60 thru 63

1шт.

60

NSS

NOT SOLD SEPARAT

PLUG - valve

1шт.

61

NSS

NOT SOLD SEPARAT

SPRING - valve

1шт.

62

NSS

NOT SOLD SEPARAT

POPPET - valve

1шт.

63

NSS

NOT SOLD SEPARAT

SEAT - poppet

1шт.

245847A1

PACKAGE

VALVE ASSEMBLY - relief, Includes: Ref. 64 thru 68

1шт.

64

NSS

NOT SOLD SEPARAT

PLUG - valve

1шт.

65

NSS

NOT SOLD SEPARAT

SPRING - valve

1шт.

66

NSS

NOT SOLD SEPARAT

PLUNGER - valve

1шт.

67

NSS

NOT SOLD SEPARAT

POPPET - valve

1шт.

68

NSS

NOT SOLD SEPARAT

SEAT - poppet

1шт.

231059A2

SEAL KIT

seal repair

1шт.

70

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

ADAPTER - straight, Incl. Ref. 71 and 72

1шт.

71

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

73

895-10006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

flat, 6.6 x 12 x 1.6 mm

1шт.

74

231089A1

SUPPORT

BRACKET - clamp

1шт.

75

3072723R1

SPACER

bracket

1шт.

14

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face End

1шт.

72

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
