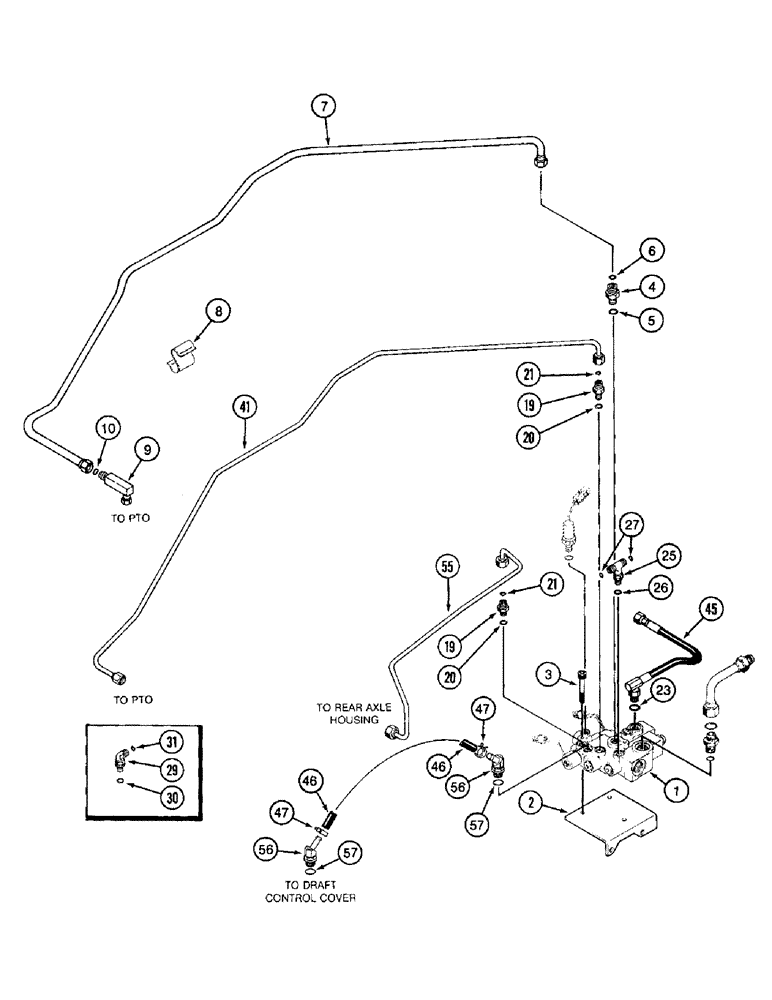

Запчасти Case IH 8920 (8-006) - PTO HYDRAULICS (08) - HYDRAULICS

1

134850A1

VALVE

ASSEMBLY - PTO, see Figure 8-008

1шт.

2

226395A1

SUPPORT

BRACKET - mounting, valve

1шт.

3

461-33844

HEX SOC SCREW,3/8"-16 x 2 3/4"

BOLT - hex socket, 3/8 NC x 2-3/4 inch

2шт.

4

201-132

HYD CONNECTOR,1"-14 ORFS x 7/16"-20 ORB

ADAPTER - straight, 1-14 face seal x 9/16-18 inch O-ring, Includes: Ref. 5 and 6

1шт.

6

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

7

223730A1

TUBE

TUBE - PTO clutch supply

1шт.

8

226390A2

CLAMP

S-type

1шт.

9

225500A1

FITTING

ELBOW - 90 degree, 1-14 male x 11/16-16 inch straight thread, Includes: Ref. 10

1шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

19

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Straight, Incl Ref. 20 and 21

2шт.

21

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

22

314290A1

PORT

VALVE - check

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

25

201-401

TEE,11/16"-16 x 9/16"-18 Br, ORFS

9/16-18 adj O-ring boss branch x 11/16-16 inch face seal x face seal, Includes: Ref. 26 and 27

1шт.

27

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

29

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Includes: Ref. 30 and 31

1шт.

31

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

41

1997585C1

HYD TUBE

TUBE - PTO brake

1шт.

45

1348381C1

HOSE,9.53mm ID x 409mm L, SAE 100R1

409 mm (16-1/8 inch) long

1шт.

46

220888A1

TUBE

HOSE - 10 (3/8) x 16 (5/8) x 635 mm (25 inch) long

1шт.

47

1348264C1

HOSE CLAMP

3/8 inch

2шт.

55

1348309C1

HYD TUBE,0.375" OD, 531.1, 196 mm Length

differential lock

1шт.

56

217-312

FITTING,45 Degree Elbow, 3/8" Hose Barb x 9/16" - 18 Male ORB

ELBOW - 45 degree, 3/8 stem end x 9/16-18 inch adj O-ring boss, Includes: Ref. 57

2шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

57

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
