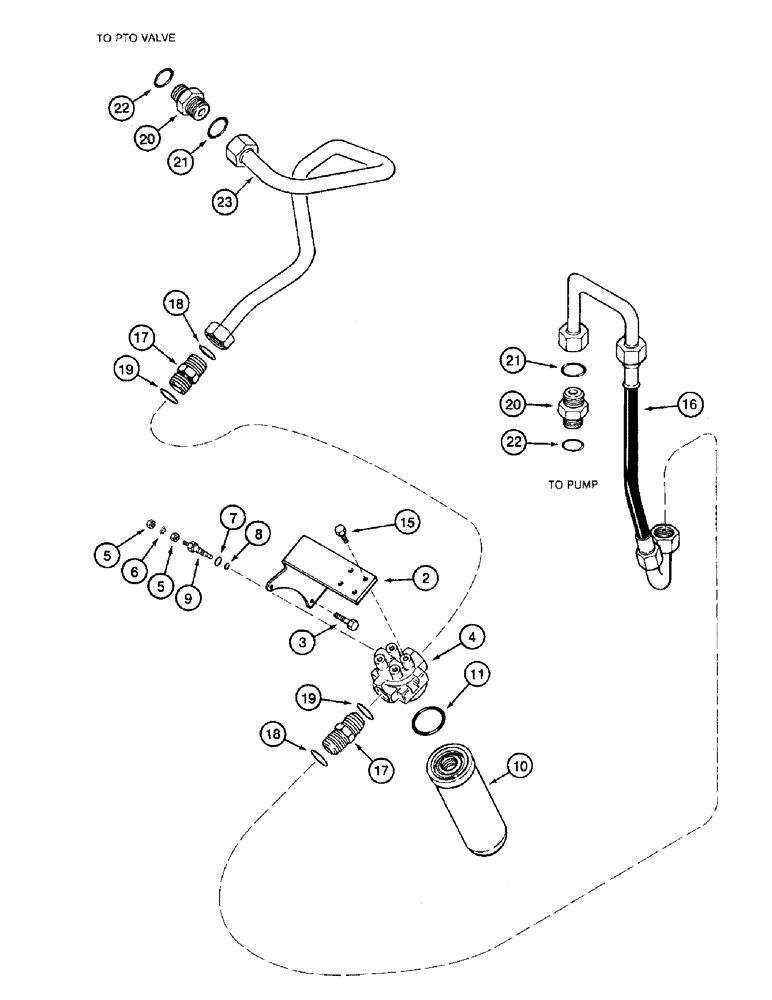

Запчасти Case IH 8920 (8-004) - AUXILIARY HYDRAULIC TRANSMISSION FILTER (08) - HYDRAULICS

2

1340537C1

SUPPORT

BRACKET - auxiliary filter

1шт.

3

828-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

BOLT - hex, 10 - 1.5 x 50 mm, class 10.9

2шт.

1346027C1

FILTER ASSY

auxiliary hydraulic, Includes: Ref. 4 thru 11

1шт.

4

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

N6755

PRESSURE SWITCH

ASSEMBLY - restriction, electric, Includes: Ref. 5 thru 9

1шт.

5

129-667

NUT,#10-32, LH

2шт.

6

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

8

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

INDICATOR - restriction

1шт.

10

1346028C1

HYDRAULIC OIL FILTER

filter. Includes: Ref. 11

1шт.

11

1986552C2

O-RING,2.484mm ID x 1.39mm Width

element

1шт.

15

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

16

1348342C3

HOSE

524 mm (20-5/8 inch) long

1шт.

17

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

ADAPTER - straight, Incl. Ref. 18 and 19

2шт.

18

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

20

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

ADAPTER - straight, Incl. Ref. 21 and 22

2шт.

21

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

23

111020A1

HYD TUBE

TUBE - auxiliary filter to PTO valve

1шт.

19

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

22

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
