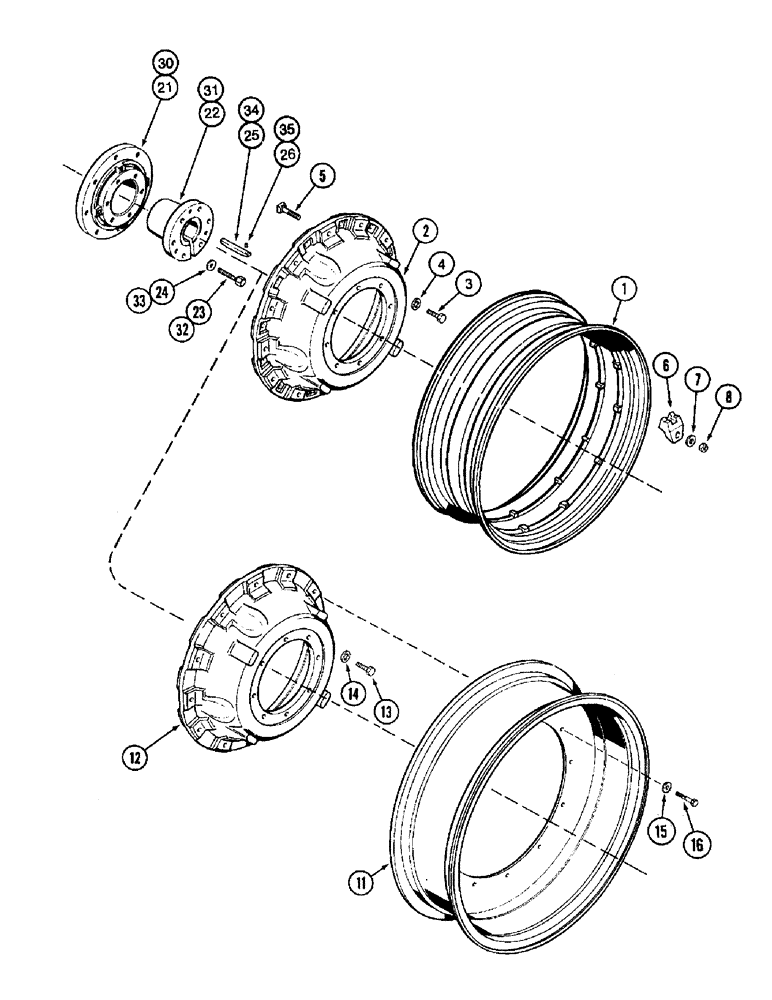

Запчасти Case IH 8920 (6-088) - UNIVERSAL CAST REAR WHEELS, SINGLE OR DUAL (06) - POWER TRAIN

1

1334480C1

RIM

WHEEL rim, for 18.4- 38 tire

2шт.

1

1334481C1

RIM

WHEEL rim, for 20.8-38 tire

2шт.

1

1334482C1

RIM

WHEEL rim, for 18.4-42 tire

2шт.

1

1334483C1

RIM

WHEEL rim, for 20.8-42 tire

2шт.

2

A145464

WHEEL

HUB - outer, universal cast

2шт.

3

426-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4 NC x 2-3/4 inch, grade 8

16шт.

4

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

flat, 13/16 x 1-1/2 x 7/32 inch, hardened

16шт.

5

117-618

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- square head, 3/4 NC x 3-1/2 inch

24шт.

6

A57654

CLAMP

adjusting, double ramp

24шт.

7

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

flat

24шт.

8

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

24шт.

11

1978549C1

WHEEL

rim, for 14.9- 46 tire

2шт.

11

1348323C1

RIM

WHEEL rim, for 18.9-46 tire

2шт.

12

1348284C2

DISC, WHEEL

HUB - wheel, outer, universal cast

2шт.

13

426-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4 NC x 2-3/4 inch, grade 8

16шт.

14

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

16шт.

15

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

flat, 13/16 x 1-1/2 x 7/32 inch, hardened

24шт.

16

1348513C1

BOLT

- hex, 3/4 NC x 2-1/4 inch, grade 8

24шт.

A67686

HUB

ATTACHMENT - hub, wheel, 8 bolt, order from Machinery Price List, Includes: 21 thru 26

2шт.

21

A145322

HUB

wheel, tapered

2шт.

22

1334322C1

HUB

BUSHING - wheel, 3-1/2 inch ID

2шт.

23

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex, special, 3/4 NC x 4-1/2 inch

12шт.

24

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

flat, 13/16 x 1-1/2 x 7/32 inch, hardened

12шт.

25

1530716C1

BUCKET TOOTH KEY

KEY axle, 5/8 x 5 inch

2шт.

26

38-11608

LOCK PIN,1/4" x 1/2", Slotted

PIN, LOCK, 1/4" x 1/2", Slotted

2шт.

A67685

PACKAGE

HUB ATTACHMENT - wheel, 8 bolt, order from Machinery Price List, Includes: Ref. 30 thru 35, 8920 tractor

2шт.

30

A145322

HUB

wheel, tapered, 8920 tractor

2шт.

31

1289233C1

HUB

BUSHING - wheel, 4 inch ID, 8920 tractor

2шт.

32

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex, special, 3/4 NC x 4-1/2 inch, 8920 tractor

12шт.

33

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

flat, 13/16 x 1-1/2 x 7/32 inch, hardened, 8920 tractor

12шт.

34

A63219

KEY

axle, 3/4 x 6 inch, 8920 tractor

2шт.

35

38-11608

LOCK PIN,1/4" x 1/2", Slotted

PIN, LOCK, , 8920 tractor 1/4" x 1/2", Slotted

2шт.
