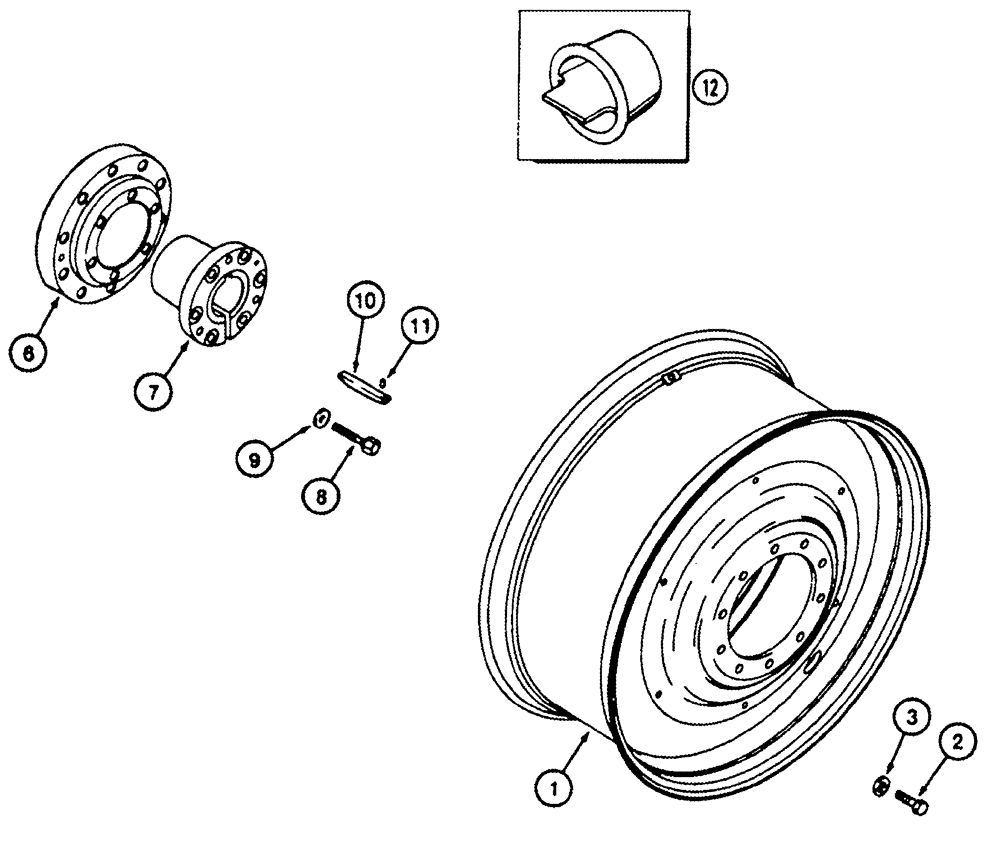

Запчасти Case IH 8920 (6-085A) - SOLID STEEL REAR WHEELS, INNER WHEEL, P.I.N. JJA0083000 AND AFTER (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
199661A1
RIM
WHEEL solid steel, W16A-38, for 18.4-38 tire, 8910 and 8920 tractor
2шт.
1
222665A1
WHEEL
solid steel, W18A-38, for 20.8-38 tire, 8910 and 8920 tractor
2шт.
1
193300A2
RIM
solid steel, MW23A-38, for 710/70R-38 tire, 8910 and 8920 tractor
2шт.
1
221362A1
WHEEL
solid steel, W16A-42, for 18.4-42 tire, 8910 and 8920 tractor
2шт.
1
193857A1
WHEEL
solid steel, W18A-42, for 20.8-42 tire, 8910 and 8920 tractor
2шт.
1
276687A1
WHEEL
solid steel, MW20A-42, for 620/70R-42 tire, 8910 and 8920 tractor
2шт.
1
196254A1
WHEEL
solid steel, W13-46, for 14.9-46 and 420/80R-46 tire, 8910 and 8920 tractor
2шт.
1
196488A1
WHEEL
solid steel, W16A-46, for 18.4-46 tire, 8910 and 8920 tractor
2шт.
2
BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9
Special, Replaces 232974A2 bolt, 8910 and 8920 tractor Hex, M22 x 80, 10.9, Full Thd
20шт.
3
496-31094
WASHER,15/16" x 1 3/4" x .219", HDN
flat, 15/16 x 1-3/4 x 7/32 inch, hardened, 8910 and 8920 tractor
20шт.
6
185605A2
HUB
axle, rear, 10 bolt, 8910 tractor
2шт.
7
250850A1
HUB
BUSHING - axle, rear, 89 mm (3-1/2 inch), 8910 tractor
2шт.
8
BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9
BOLT, , Special, 8910 tractor Hex, M20 x 110, 10.9
12шт.
9
WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk
8910 tractor 13/16" x 1 1/2" x .219", HDN
12шт.
10
1530716C1
BUCKET TOOTH KEY
KEY axle, 5/8 x 5 inch, 8910 tractor
2шт.
11
38-11608
LOCK PIN,1/4" x 1/2", Slotted
PIN, LOCK, , 8910 tractor 1/4" x 1/2", Slotted
2шт.
6
185605A2
HUB
axle, rear, 10 bolt, 8920 tractor
2шт.
7
223769A1
HUB
axle, rear, 102 mm (4 inch), 8920 tractor
2шт.
8
BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9
BOLT, , Special, 8920 tractor Hex, M20 x 110, 10.9
12шт.
9
WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk
8920 tractor 13/16" x 1 1/2" x .219", HDN
12шт.
11
38-11608
LOCK PIN,1/4" x 1/2", Slotted
PIN, LOCK, , 8920 tractor 1/4" x 1/2", Slotted
2шт.
Выбрано товаров: 24
