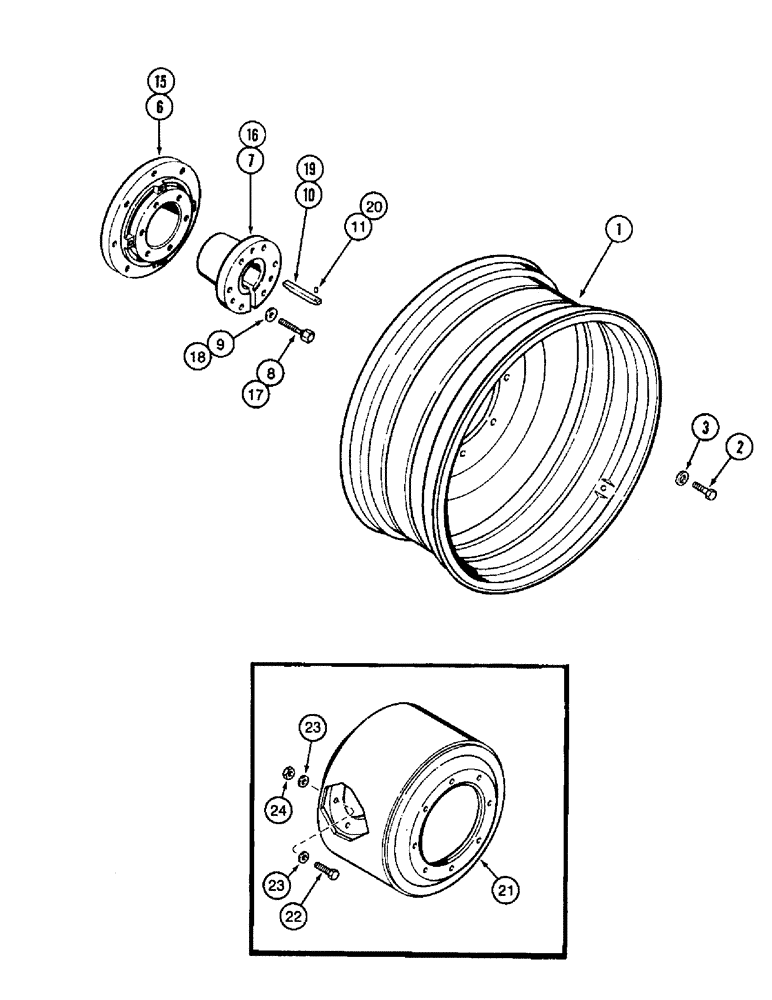

Запчасти Case IH 8920 (6-084) - STEEL REAR WHEELS, SINGLE OR DUAL, PRIOR TO P.I.N. JJA0083000 (06) - POWER TRAIN

1

1968161C1

RIM

WHEEL rim, for 24.5-32 tire, 8910 and 8920 tractor

2шт.

1

A145462

RIM

WHEEL rim, for 30.5-32 tire, 8910 and 8920 tractor

2шт.

1

102890A1

WHEEL

rim, for 23.1-34 tire, 8910 and 8920 tractor

2шт.

1

135570A1

WHEEL

rim, low profile, for 38 inch tire, 8910 and 8920 tractor

2шт.

2

1348513C1

BOLT

- hex, 3/4 NC x 2-1/4 inch, grade 8, 8910 and 8920 tractor

16шт.

3

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

flat, 13/16 x 1-1/2 x 7/32 inch, hardened, 8910 and 8920 tractor

16шт.

4

A20058

VALVE STEM

not shown, 8910 and 8920 tractor

2шт.

A67686

HUB

ATTACHMENT - wheel, 8 bolt, order from Machinery Price List, Includes: Ref. 6 thru 11, 8910 tractor

2шт.

6

A145322

HUB

wheel, tapered, 8910 tractor

2шт.

7

1334322C1

HUB

BUSHING - wheel, 3-1/2 inch ID, 8910 tractor

2шт.

8

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex, special, 3/4 NC x 4-1/2 inch, 8910 tractor

12шт.

9

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

flat, 13/16 x 1-1/2 x 7/32 inch, hardened, 8910 tractor

12шт.

10

1530716C1

BUCKET TOOTH KEY

KEY axle, 5/8 x 5 inch, 8910 tractor

2шт.

11

38-11608

LOCK PIN,1/4" x 1/2", Slotted

PIN, LOCK, , 8910 tractor 1/4" x 1/2", Slotted

2шт.

A67685

PACKAGE

HUB ATTACHMENT - wheel, 8 bolt, order from Machinery Price List, Includes: Ref. 15 thru 20, 8920 tractor

2шт.

15

A145322

HUB

wheel, tapered, 8920 tractor

2шт.

16

1289233C1

HUB

BUSHING - wheel, 4 inch ID, 8920 tractor

2шт.

17

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex, special, 3/4 NC x 4-1/2 inch, 8920 tractor

12шт.

18

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

flat, 13/16 x 1-1/2 x 7/32 inch, hardened, 8920 tractor

12шт.

19

A63219

KEY

axle, 3/4 x 6 inch, 8920 tractor

2шт.

20

38-11608

LOCK PIN,1/4" x 1/2", Slotted

PIN, LOCK, , 8920 tractor 1/4" x 1/2", Slotted

2шт.

A67430

PACKAGE

SPACER KIT - dual wheel, 16 inch, no longer available, order components, Includes: Ref. 21 thru 24, 8910 and 8920 tractor

2шт.

21

A149059

BUSHING

SPACER - dual wheel, 8 bolt, 16 inch, 8910 and 8920 tractor

2шт.

22

1348513C1

BOLT

- hex, 3/4 NC x 2-1/4 inch, grade 8, 8910 and 8920 tractor

16шт.

23

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

flat, 13/16 x 1-1/2 x 7/32 inch, hardened, 8910 and 8920 tractor

32шт.

24

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8, 8910 and 8920 tractor

16шт.
