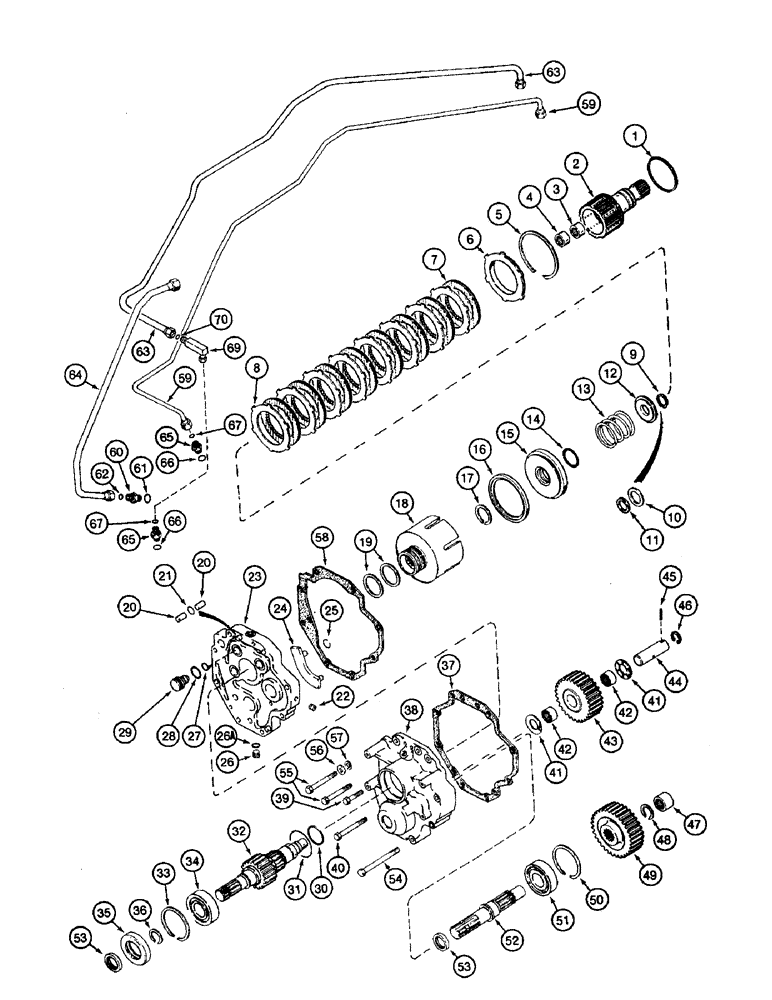

Запчасти Case IH 8920 (6-078) - PTO ASSEMBLY, DUAL SPEED, 540 AND 1000 RPM (06) - POWER TRAIN

1997814C1

PTO

ASSEMBLY - dual speed, no longer available, order: P/N 313783A2, Includes: Ref. 1 thru 53

1шт.

313783A2

PTO

ASSEMBLY - dual speed, Includes: Ref. 1 thru 53

1шт.

313783A3R

REMAN-PTO GEARBOX A.

8910, 8920, Both CASE IH MAGNUM TRACTOR, PTO ASSEMBLY - dual speed 540 AND 1000 RPM (1/97-12/98), Reman for New PN 313783A2

1шт.

313783A3C

CORE-PTO GEARBOX A.

Return Number

1шт.

1

1997689C1

SEAL,89.53mm ID x 95.53mm OD x 2.88mm Thk

clutch drive shaft to backing plate

1шт.

1997698C1

SHAFT ASSY.

SHAFT ASSEMBLY, clutch drive, used with P/N 1997814C1 PTO, Includes: Ref. 2 thru 4

1шт.

313780A1

SHAFT ASSY.

SHAFT ASSEMBLY, clutch drive, used with P/N 313783A2 PTO, Includes: Ref. 2 thru 4

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - clutch drive

1шт.

3

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

BEARING needle, used with P/N 1997698C1 shaft assembly

1шт.

3

A144861

NEEDLE BEARING

BEARING needle, used with P/N 313780A1 shaft assembly

1шт.

4

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

BEARING needle, 1-3/4 inch OD, used with P/N 1997698C1 shaft assembly

1шт.

4

A50646

NEEDLE BEARING,1.75" ID x 2.125" OD x 1"

BEARING needle, 2-1/8 inch (54 mm) OD, used with P/N 313780A1 shaft assembly

1шт.

5

381492R1

CIRCLIP,M137.16 x 3.07mm Thk, Int

RING - snap, clutch driven disc

1шт.

6

1997561C2

LARGE PLATE

DISC - clutch backing plate

1шт.

7

381490R4

DISC

friction

8шт.

8

381489R3

DISC

PLATE - separator

8шт.

9

101-11175

SNAP RING,#175, 1.640", Ext

RING - external retaining, No. 175

1шт.

10

1997941C1

THRUST WASHER,44.83mm ID x 63.5mm OD x 3.54mm Thk

WASHER thrust, fiber

1шт.

11

A54021

WASHER

RACE - thrust

1шт.

12

1997479C1

STOP

RETAINER - spring

1шт.

13

381493R1

SPRING

clutch release

1шт.

14

238-5328

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

1шт.

15

1997690C1

PISTON

clutch

1шт.

16

381488R1

RING,120.78mm ID x 134.34mm OD x 4.78mm Thk

SEAL - piston

1шт.

17

130489C1

RING

retaining

1шт.

18

124303A1

CLUTCH HOUSING

CUP

1шт.

19

365229A1

RING

seal

2шт.

316097A1

HOUSING

ASSEMBLY - PTO, Replaces: P/N 1997815C1, Includes: Ref. 20 thru 23

1шт.

20

837-12030

DOWEL,M12 x 30mm OAL

4шт.

21

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

22

1342851C1

PLUG

sealing, 10 mm

1шт.

23

NSS

NOT SOLD SEPARAT

HOUSING - PTO

1шт.

24

1997824C1

COVER

BAFFLE PTO

1шт.

25

100-1550

SNAP RING,#50, Ext

Ring, Snap, #50, Ext

2шт.

26

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 26A Hex Soc, 9/16"-18 ORB

1шт.

26a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

27

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

-018, 70 Duro, .739" ID x .070" Thk

3шт.

28

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

3шт.

29

1289335C4

PISTON

brake, anti-creep

3шт.

30

238-5138

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

1шт.

31

116322A1

RING

shaft seal

1шт.

32

1997818C1

SHAFT

output, upper, 1000 rpm

1шт.

33

A31234

RING

retaining

1шт.

34

92588C2

BEARING ASSY,45mm ID x 100mm OD x 25mm W

BEARING 1000 rpm shaft

1шт.

35

125115A1

SPACER

bearing, output shaft

1шт.

36

1997820C1

RING, SNAP

RING retaining

1шт.

37

321291A1

GASKET,1.12mm Thk

cover to housing, Replaces: P/N 1997826C1 and 307888A1

1шт.

38

1997817C1

COVER

housing, no longer available, order P/N 308939A1 cover and P/N 800-21100 retaining ring

1шт.

38

308939A1

COVER

housing

1шт.

38a

800-21100

SNAP RING,Int, M100 x 3

RING, SNAP, , Used with P/N 308939A1 Cover, Not Shown Int, M100 x 3

2шт.

39

615-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

1шт.

40

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

- hex, 12 - 1.75 x 90 mm

1шт.

41

1997940C1

THRUST WASHER,38.6mm ID x 65mm OD x 2.36mm Thk

WASHER thrust

2шт.

42

F7356

NEEDLE BEARING,Needle, 38.1mm ID x 47.63mm OD x 22.23mm W

BEARING needle

2шт.

43

1997822C1

PINION

GEAR - idler

1шт.

44

1997821C1

SHAFT

idler

1шт.

45

738-1620

LOCK PIN,6mm OD x 20mm L, Slotted

PIN - roll, 6 x 20 mm

1шт.

46

100-25150

RING,1.50", Int, #150

Snap, 1.50", Int, #150

1шт.

47

576539R1

NEEDLE BEARING,Needle, 22.2mm ID x 33.91mm OD x 38.1mm W

BEARING needle

1шт.

48

359894R1

RING, SNAP

RING retaining

1шт.

49

1997823C1

PINION

GEAR - driven

1шт.

50

A31234

RING

retaining

1шт.

51

ST293

BALL BEARING,45mm ID x 100mm OD x 25mm W

BEARING ball

1шт.

52

148663C1

SHAFT

output, 540 rpm

1шт.

53

199884C1

OIL SEAL,35.18mm ID x 62.05mm OD x 9.14mm Thk

shaft

2шт.

54

813-12130

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8

- hex, 12 - 1.75 x 130 mm

4шт.

55

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

4шт.

56

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

57

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

2шт.

58

1997825C1

GASKET,0.79mm Thk

PTO, Serial Range: housing-frame

1шт.

59

1997585C1

HYD TUBE

TUBE - PTO brake supply

1шт.

60

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

ADAPTER straight, 13/16-16 face seal x 9/16-18 inch O-ring boss, Includes: Ref. 61 and 62

1шт.

61

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

62

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

63

223730A1

TUBE

- clutch supply

1шт.

64

107813A1

TUBE

- lubrication

1шт.

65

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adapter - straight, Incl Ref. 66 and 67 11/16"-16 ORFS x 9/16"-18 ORB

2шт.

66

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

67

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

69

225500A1

FITTING

ELBOW - 90 degree, 1-14 male x 11/16-16 inch straight thread

1шт.

70

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
