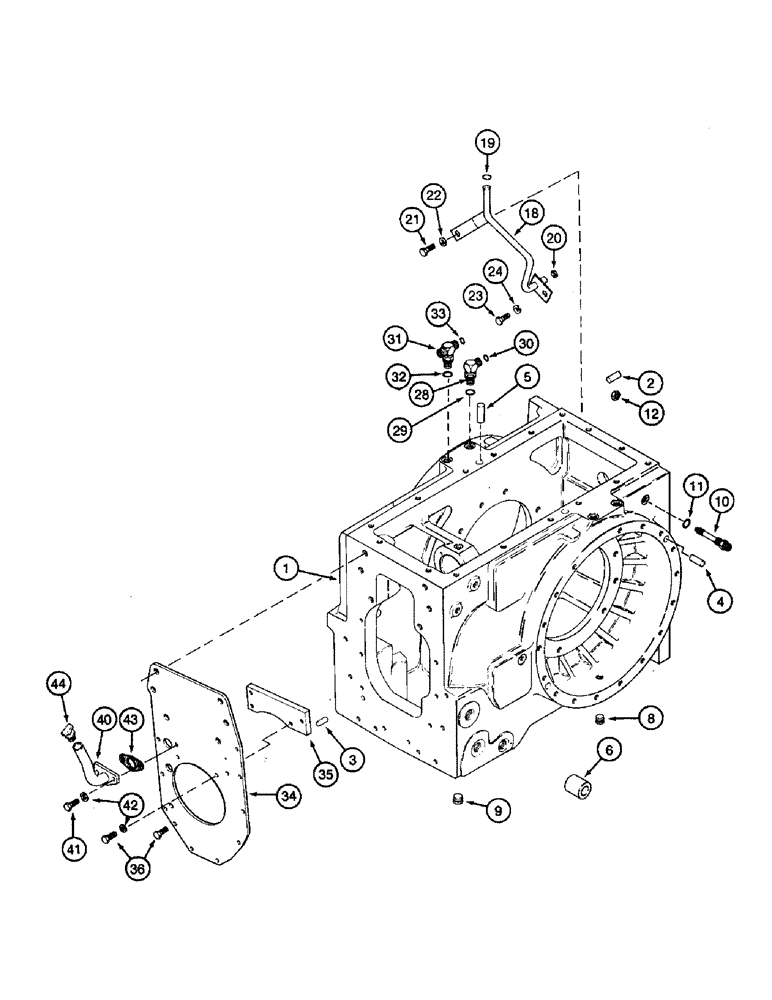

Запчасти Case IH 8920 (6-072) - REAR AXLE HOUSING (06) - POWER TRAIN

1

220300A1

HOUSING

ASSEMBLY - axle, Includes: Ref. 2 thru 9

1шт.

2

837-16035

DOWEL,M16 x 35

PIN dowel, 16 x 35 mm, hardened

1шт.

3

837-12025

DOWEL,M12 x 25

PIN dowel, 12 x 25 mm, hardened

2шт.

4

837-16040

DOWEL,M16 x 40

PIN dowel 16 x 40 mm, hardened

4шт.

5

37-11232

DOWEL,3/4" x 2"

PIN dowel, 3/4 x 2 inch, hardened

2шт.

6

1347905C1

BUSHING

bracket anchor

2шт.

8

192791A1

PLUG

hex socket, 1/2 inch PT

2шт.

9

192792A1

PLUG

square countersunk, 3/4 - 14 inch thread

1шт.

10

93200C1

UNION

ADAPTER - bulkhead, 11/16-16 face seal x 9/16-18 inch flare

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

1шт.

18

1349158C1

TUBE,195, 138 mm Length

lubrication, bevel gear

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

239-5112

O-RING,Rect, .5" ID x .688" OD, Cl 5

1шт.

21

613-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm

1шт.

22

892-11010

LOCK WASHER,M10

1шт.

23

613-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

24

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

28

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

90°, 13/16-16 face seal x 3/4-16" adj O-ring boss, Incl. Ref. 29 and 30

3шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

30

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

31

201-402

TEE,13/16"-18 x 3/4"-16 Br, ORFS

3/4-16 adj O-ring branch x 13/16-16 inch face x face, Includes: Ref. 32 and 33

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

33

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

34

1997476C1

LARGE PLATE

PLATE adapter, PTO

1шт.

35

1981233C2

BAR

BRACKET - adapter, PTO

1шт.

36

613-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

40

103141A1

TUBE,120 mm Length

- oil fill

1шт.

41

613-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm

2шт.

43

139395C1

GASKET,0.79mm Thk

tube

1шт.

44

831821C1

PLUG

CAP - fill, transmission

1шт.
