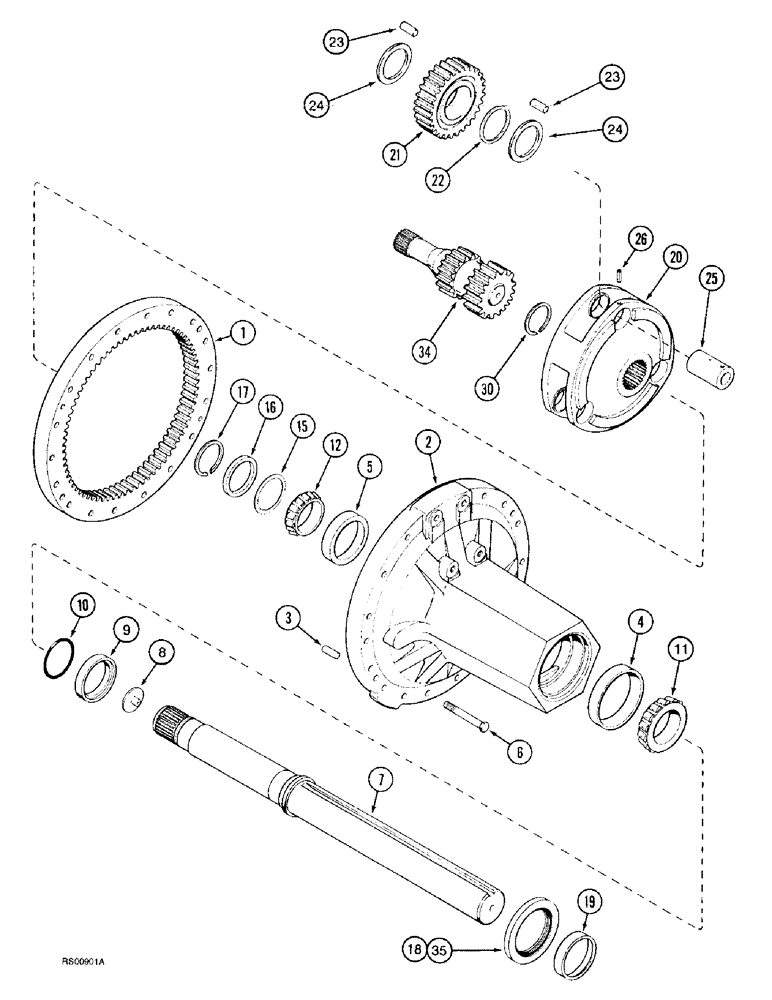

Запчасти Case IH 8920 (6-070) - REAR AXLE AND CARRIER, 4 X 118 INCH AXLE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
120942C2
GEAR
ring, 72 teeth
2шт.
2
1342268C1
CARRIER
ASSEMBLY - axle, Includes: Ref. 3 thru 5
2шт.
3
837-16040
DOWEL,M16 x 40
PIN - 16 x 40 mm, hardened
2шт.
4
1975500C1
BEARING CUP,180.987 mm OD x 38.15 mm
CUP tapered roller bearing
2шт.
5
619697C1
BEARING CUP,149.98mm OD x 26.90mm W
CUP tapered roller bearing
2шт.
6
813-16120
BOLT,Hex, M16 x 2 x 120mm, Cl 8.8
- hex, 16 - 2.0 x 120 mm
32шт.
7
1342484C3
REAR AXLE
AXLE ASSEMBLY - 4 x 118 inch, Includes: Ref. 8 and 9
2шт.
8
1981270C1
INSERT
rear axle
1шт.
9
1963837C1
BUSHING,104.83mm ID x 132.65mm OD x 18mm L
bearing, spacer
1шт.
10
238-5155
O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro
2шт.
11
1975499C1
TAPERED BEARING,104.187 mm ID x 47.68 mm
CONE tapered roller, bearing
2шт.
12
1963841C1
ROLLER BEARING,95.26mm ID x 36.22mm W
CONE tapered roller, bearing
2шт.
15
143921C1
SHIM,95mm ID x 120mm OD x 0.76mm Thk
Bearing 0.760mm Thk
1шт.
15
143922C1
SHIM,95mm ID x 120mm OD x 0.3mm Thk
Bearing 0.300mm Thk
1шт.
15
143923C1
SHIM,95mm ID x 120mm OD x 0.13mm Thk
bearing, 0.18 mm
1шт.
15
143924C1
SHIM,95mm ID x 120mm OD x 0.1mm Thk
Bearing 0.100mm Thk
1шт.
15
143925C1
SHIM,95mm ID x 120mm OD x 0.08mm Thk
Bearing (0.06 to 0.09 mm) 0.076mm Thk
1шт.
16
124744C1
WASHER,95.63mm ID x 120mm OD x 8mm Thk
thrust
2шт.
17
1277020C2
RING
retaining
2шт.
1349182C1
SEAL KIT
KIT seal and sleeve, Includes: Ref. 18 and 19
2шт.
20
1349355C1
PINION CARRIER
CARRIER gear
1шт.
21
1349354C2
PINION
GEAR - planet, 27 teeth
6шт.
22
1349348C1
THRUST RING
RING thrust
6шт.
23
1349353C1
NEEDLE BEARING
BEARING
348шт.
24
1997886C1
THRUST WASHER
WASHER thrust
12шт.
25
1349352C1
SHAFT
bearing
6шт.
26
838-3826
PIN,M8 x 26, Coiled
6шт.
30
101-11350
SNAP RING,#350, Ext
RING, SNAP, #350, Ext
2шт.
34
1981238C1
SHAFT
sun gear
2шт.
